Home > Products > Crystal Oscillator(TCXO) > 13.575mhz Smd Crystal TCXO 2016 Original China Manufacturer Passive and Active Elecetronic Components
13.575mhz Smd Crystal TCXO 2016 Original China Manufacturer Passive and Active Elecetronic Components
- Shenzhen/Hongkong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
26MHz TCXO 2520 High End GPS Special Crystal Piezoelectronic Quartz Crystal Oscillator
-
Original Tcxo 20mhz Automatic Electronics for Wireless 3225 Dongguan Technology
-
Crystal Tcxo Oscillator 28.672mhz Frequency Oscillator 3225
-
80mhz Tcxo Smd Crystal Tcxo 2.5*2.0mm ROHS
-
2520 Tcxo 30 Mhz Quartz Crystal Oscillator Manufacturer
-
Tcxo 20mhz Frequency Controlled Oscillator for Wifi 2520
Product Details
| Place of Origin | Guangdong, China | Brand Name | FL | |
| Model Number | TCXO 2016 |
Taped, PET PVC,with desiccant,packaged in case and in wooden case for exportation.
We are the biggest manufacturer of SMD quartz crystal oscillator and resonator in China mainland. Failong Crystal has passed international ISO9001 quality management system certification, TS16949 certification in automobile industry, international ISO14001 enviromentmanagement certification, QC080000 IECQ HSPM and SGS CE ROHS, established CPK surveillance system in the production management procedure.
Product Description
13.575mhz smd crystal TCXO 2016 original China manufacturer passive and active elecetronic components
Radio communication, audio-visual equipment, office automation equipment, consumer product,etc
13.575mhz smd crystal TCXO 2016 original China manufacturer passive and active elecetronic components

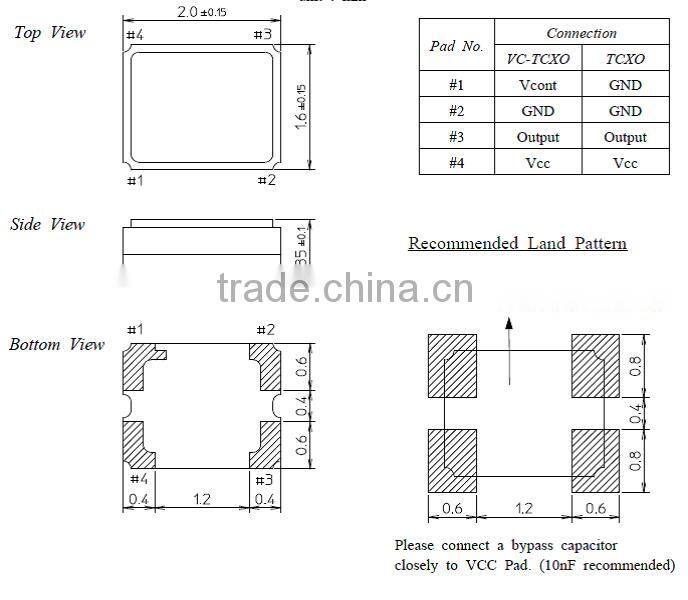

Dimension&land pattern(unit:mm)
Specification
| Parameters | For Cellular | For GPS | Conditions | |||||||
| Output Frequency | 8 ~ 52 MHz | 8 ~ 52 MHz | ||||||||
| Supply Voltage | DC 1.8V to 3.3V | DC 1.8V to 3.3V | ||||||||
| Output Level | 0.8 Vp-p Min | 0.8 Vp-p Min | 10kohm//10pF | |||||||
| Current Consumption | 1.5 mA / 2.0mA Max | 1.5 mA / 2.0mA Max | 10kohm//10pF | |||||||
| Operating Temperature Range | -30~+85℃ | -30~+85℃ | ||||||||
| Storage Temperature Range | -40~+85℃ | -40~+85℃ | ||||||||
| Frequency Stability | ||||||||||
| vs. Temperature | ±2.0 ppm Max | ±0.5 ppm Max | Referenced to 25 °C | |||||||
| vs. Supply Voltage | ±0.2 ppm Max | ±0.2 ppm Max | Supply Voltage ±5% | |||||||
| vs. Load | ±0.2 ppm Max | ±0.2 ppm Max | 10kohm//10pF | |||||||
| vs. Aging | ±1.0 ppm Max | ±1.0 ppm Max | 1 Year | |||||||
| Frequency Tolerance (Initial) | ±1.0 ppm Max | ±1.0 / ±0.5 ppm Max | 25 °C | |||||||
| Frequency Tolerance (After Reflow) | ±1.0 ppm Max | ±1.0 ppm Max | Referenced to 25 °C | |||||||
| AFC-Characteristics | Custom spec. | Custom spec. | ||||||||
| Harmonics | -8 dBc Max | -8 dBc Max | ||||||||
| Frequency Slope | ±0.3 ppm/ °C (design guarantee) | ±0.1 ppm/ °C | -20 °C to +70 °C | |||||||
13.575mhz smd crystal TCXO 2016 original China manufacturer passive and active elecetronic components
SMD process flow
SMD crystal oscillator 7050 piezoelectric quartz crystal with ic 12.000mhz
DIP process flow
SMD crystal oscillator TCXO 3225 piezoelectric quartz crystal with ic 13.000mhz piezo oscillator
Blank process flow

Simple packaged crystal oscillator
Market
SMD crystal oscillator TCXO 3225 piezoelectric quartz crystal with ic 19.2mhz piezo oscillator
