Home > Products > XFP Transceiver 10G > Juniper 1550nm 40km 10G XFP Module Dual LC
Juniper 1550nm 40km 10G XFP Module Dual LC
- 5000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HaiLi | |
| Model Number | HL-XFP-ER |
Product Description
Juniper 1550nm 40km 10G XFP Module Dual LC
- Support 9.95 Gbps to 10.5 Gbps
- Complaint with XFP MSA
- Compliant with XFI 10G Serial Electrical Interface
- Maximum Link Length of 40 km
- Temperature-stabilized 1550 nm EML Transmitter
- 2-Wire Interface for Integrated Digital Diagnostic Monitoring
- XFI Loopback Mode
- No reference Clock required
- Power Dissipation < 3.5W
- Dual 5V and +3.3 V Power Supply
- RoHS-6 Compliant
- Part Number: HL-XFP-ER
- Device Type: XFP ER
- Package: XFP
- Data Rate: 10.3Gbps
- Wavelength: 1550nm
- Distance/Power Budget: 40km
- Optical Components
- LD: EML
- PD: PIN
- Output Power: -1~4dBm
- Receiver Sensitivity: -16.5dBm
- Power Supply Voltage: 3.3V/ 5V
- Connector: Dual LC
- Fiber Type: SMF
- Operating Temperature: 0~70 °C
- DDMI: With
- Application: Ethernet/ SONET/ 10G FC
- Compatiblity: All Brands
| HaiLi Part Number | Cisco Part Number | Application | Data Rate | Wavelength | Distance | Connector Type |
| HL-XFP-SR | XFP-10G-MM-SR= | XFP 10GB-SR | 10G | 850nm | 300m | LC |
| HL-XFP-LR | XFP-10GLR-OC192SR= | XFP 10GB-LR | 10G | 1310nm | 10km | LC |
| HL-XFP-ER | XFP-10GER-192IR+= | XFP 10GB-ER | 10G | 1550nm | 40km | LC |
| HL-XFP-ZR | XFP-10GZR-OC192LR= | XFP 10GB-ZR | 10G | 1550nm | 80km | LC |
More Products

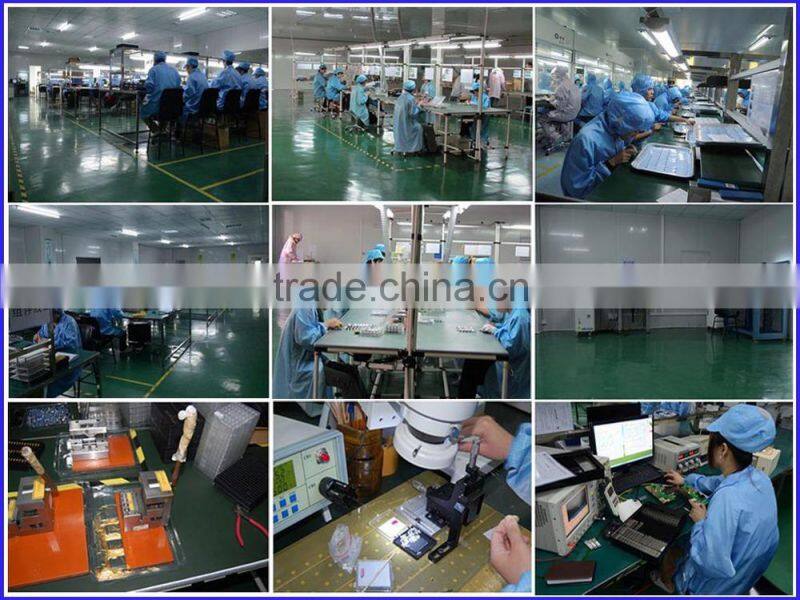

Our Production Line
Certificates
OEM and ODM
OEM/ODM order is available
we can supply products according to your requirements, and design products label for your company.
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply

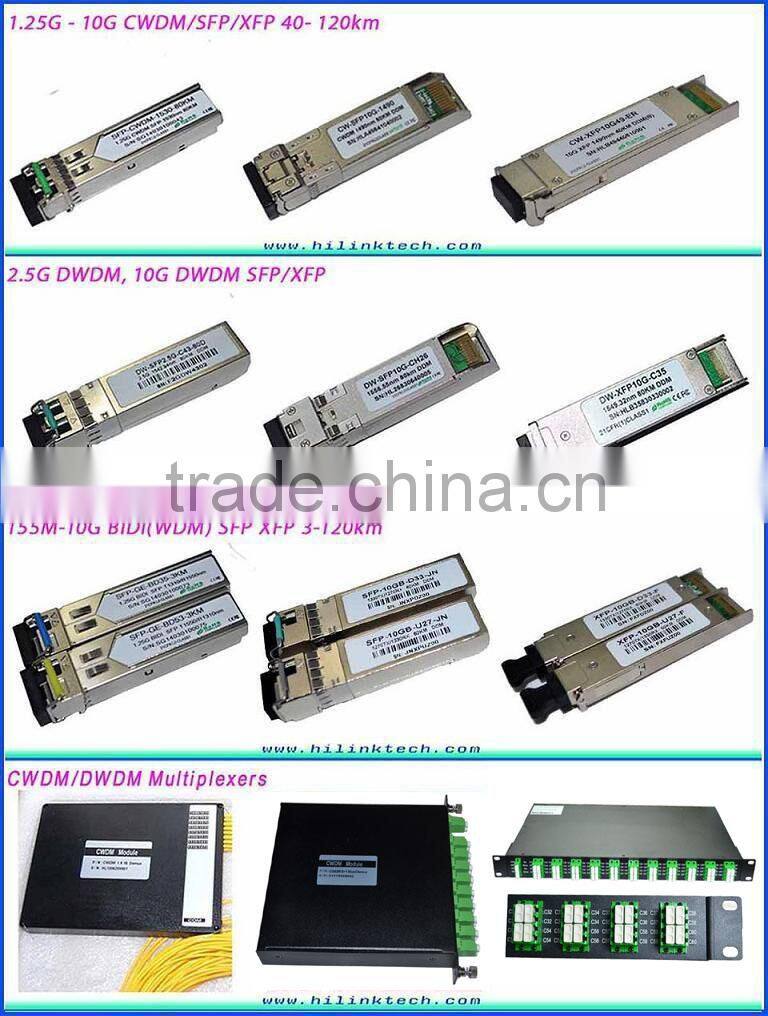

We supply wide range of high quality optical transceiver modules and passive CWDM/DWDM Mux/Demux. . The optical modules are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
We supply all kinds of optical modules, if you can't find the product you need, just send us an inquiry, we'll reply you shortly.
