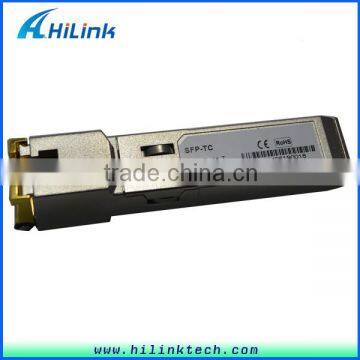

1.25G Copper RJ45 Module 1000Base-Tx SFP Transceiver

1000Base-T SFP GLC-T

Copper RJ45 Module 1000Base-Tx SFP Transceiver

  Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000Base-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable.

  The module supports1000 Mbps (or10/100/1000Mbps) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.

Features:

 Up to 1.25Gb/s bi-directional data links
 Hot-pluggable SFP footprint
 Extended case temperature range (0°C to +85°C )
 Fully metallic enclosure for low EMI
 Low power dissipation (1.05 W typical)
 Compact RJ-45 connector assembly
 Access to physical layer IC via 2-wire serial bus
 1000 BASE-T operation in host systems with SERDES interface
 10/100/1000Mbps compliant in host systems with SGMII interface

Applications:
 Fiber Channel
 Fast Ethernet

  GLC-T SFP compatible brand: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Our Service:

 1. Contact our sales for more details to confirm your order.
 2. Short lead time after confirmation.

 3. We deliver goods by international Express.

 4. Quick response for customers' feedback and other questions.

Shipment & Payment
 1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
 2. Payment: T/T, Western Union, Paypal and so on.

Guarantee:

    ›& Brand new.

    ›& OEM/ODM is available.
    ›& 100% through quality test and aging test.
    ›& 3 years warranty(From the date of shipment).

Technician support:

    We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
    We have after service for 24 hours, promises to supply technical service or guide in anytime.
    Our co-workers will be response clients's requirement in 12 hours after emergency happened.

Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
