Home > Products > QSFP SFP+ AOC DAC > 100G Duplex LC 1310nm 10km CFP2 LR4

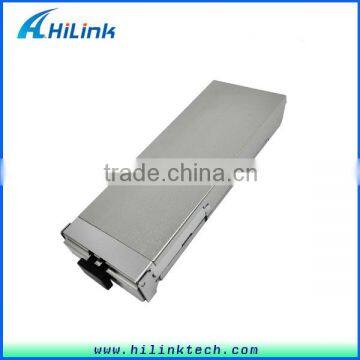

100G Duplex LC 1310nm 10km CFP2 LR4

FOB Price

USD $2,000 - $5,000 / Piece

1 Piece(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	HaiLi
Model Number	HL-TXCFP2-LD10

Product Description

Duplex LC CFP2 100GBASE-LR4 and OTN 1310nm 10km DDM Transceiver

100G Duplex LC 1310nm 10km CFP2 LR4

The 100G CFP2 LR4 optical transceiver integrates the transmit and receive path onto one module. Four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths, which multiplexed/demutiplexed into a single-mode fiber through an industry-standard LC connector. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver.

Features:
Duplex LC receptacle optical interface
Single +3.3V power supply
Hot-pluggable
Operating optical data rate up to 112Gbps
Operating electrical serial data rate up to 27.952493Gbps
4 parallel electrical serial interface
AC coupling of CML signals
PIN ROSA
Low power dissipation(Max:9W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-LR4 and OTU4
MDIO Communication Interface
Compatible with all kinds of commercial ONT

Applications:
Local Area Network(LAN)
Wide Area Network(WAN)
Switch to router interface
ITU-T OTU4 OTL4.4 applications

Standards:
Compliant with IEEE 802.3ba
Compliant with CFP2 MSA hardware specifications
Compliant with CFP2 MSA management specifications
Compliant with ITU-T G709/Y.1331
Compliant with RoHS

Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.

Our Service:

1. Contact our sales for more details to confirm your order.
2. Short lead time after confirmation.

3. We deliver goods by international Express.

4. Quick response for customers' feedback and other questions.

Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.

Guarantee:

›& Brand new.

›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty(From the date of shipment).

Technician support:

We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.

Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.

Company Informations:

Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.

RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.

Our core competencies are fiber optics of CFP, CFP2, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.

We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.

We also have related optical products and good solutions to satisfy customers' requirements.

New and old customers are warmly welcomed to visit our factory and office for further cooperation.

Hope to build up a business relation with you.

Any requirements about CWDM/DWDM Mux/Demux Module, CWDM/DWDM/BiDi SFP/XFP, Xenpak/X2, FWDM and so on.

Send me an inquiry with your requirements directly or add my skype (hilink02) for further information.
