100G Mini ABS Box 8 Channel DWDM Mux/Demux
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HaiLi | |
| Model Number | HL-DWDW-Mux Demux-xxxx |
Product Description

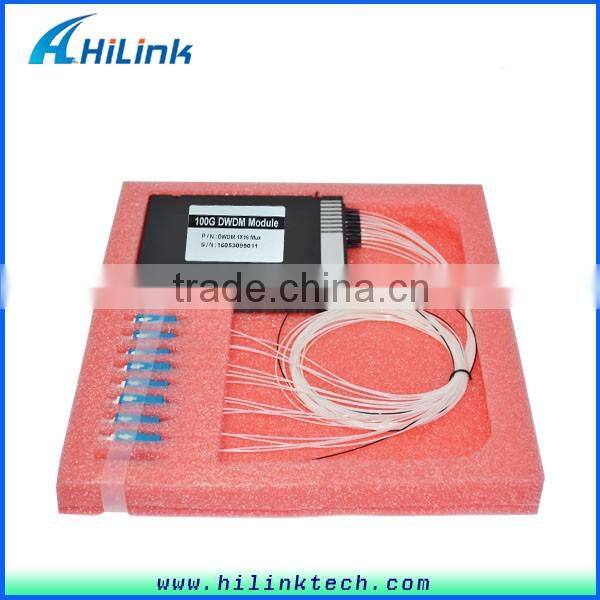

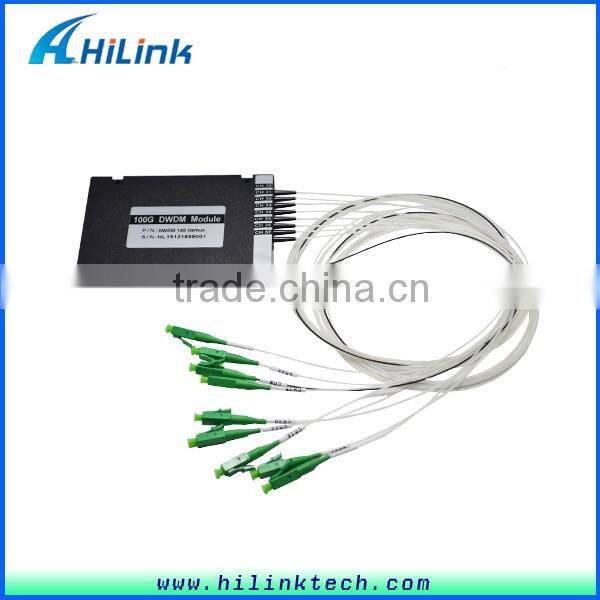

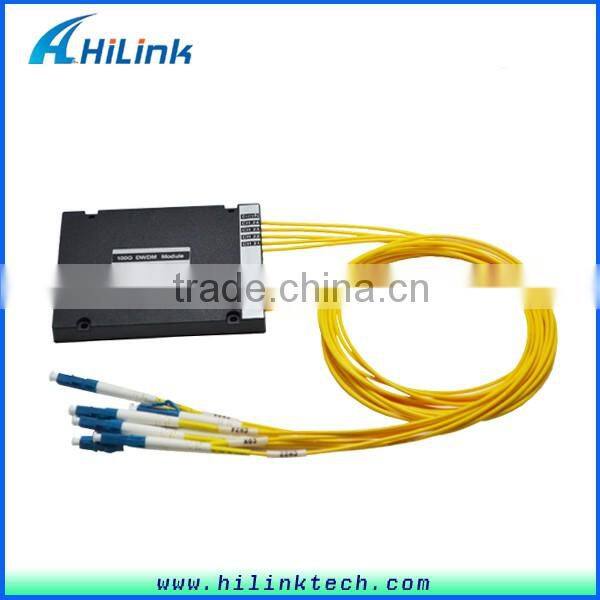

100G Mini ABS Box 8 Channel DWDM Mux/Demux
DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. DWDM Mux/Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.
Features:
C Band
2-44 channels DWDM Mux/Demux (CH17-CH61)
Channel spacing: 0.8nm(100GHz Grid C-Band)
Protocol transparent (10Mbps to 100Gbps)
Low insertion loss
Excellent channel isolation
Epoxy-free optical path
Compliant to G.657A1 standard
ISO 9001 manufacturing facility
Wide Operating Temperature: -40~+85℃
Applications:
Channel Add/Drop
DWDM Network
Wavelength Routing
Fiber Optical Amplifier
CATV System
Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
ITU-T G.694.1
RoHS
1xN DWDM Mux/Demux Module
Parameters |
| ||||||
Channel Space (GHz) | 100 | 200 | |||||
Channel Number | 1*4 | 1*8 | 1*16 | 1*4 | 1*8 | 1*16 | |
Center Wavelength (nm) | ITU Grid | ||||||
Center Wavelength Accuracy (nm) | ± 0.05 | ± 0.1 | |||||
Channel Passband (@-0.5dB) (nm) | 0.22 | 0.5 | |||||
Fiber Type | SMF-28e with 900um loose tube or customer specified | ||||||
IL (dB) | 1.4 | 2.2 | 2.8 | 1.7 | 2.9 | 3.8 | |
Passband Ripple (dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 | |
Isolation (dB) | Adjacent Channel | 25 | 28 | ||||
Non-Adjacent Channel | 40 | ||||||
PDL (dB) | 0.2 | ||||||
PMD (ps) | 0.1 | ||||||
RL (dB) | 45 | ||||||
Directivity (dB) | 50 | ||||||
Maximum Optical Power (mw) | 300 | ||||||
Operating Temperature (°C) | -40~85 | ||||||
Storage Temperature (°C) | -40~85 | ||||||
BOX Package (mm) | 100*80*10 or 140*115*18 | ||||||

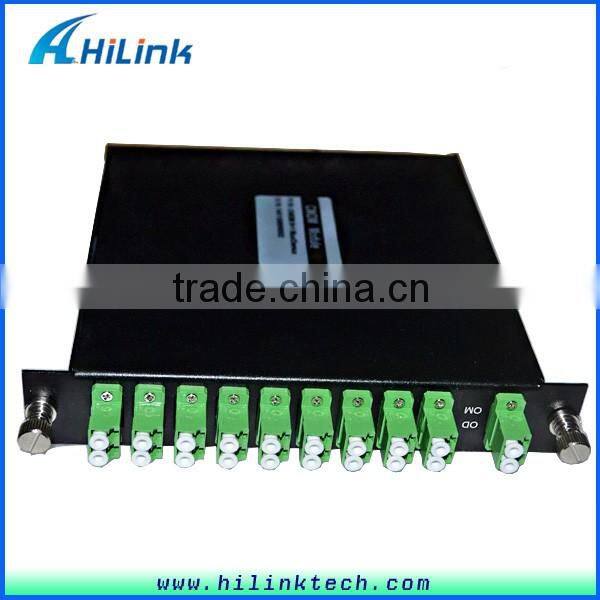

LGX Package | 1U,2U | ||||||
19’’ Rack mount Package | 1U | ||||||

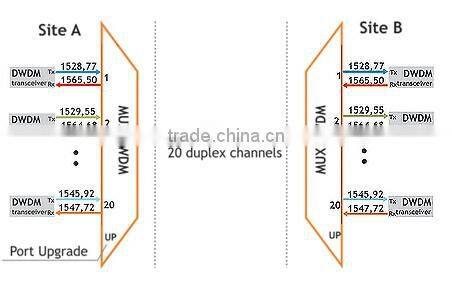

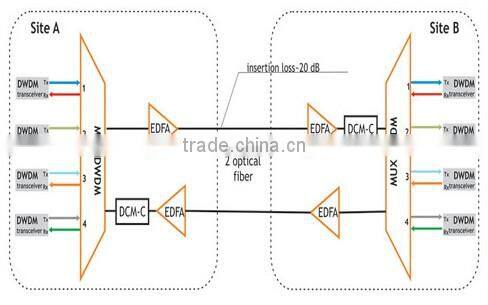

Some solutions:
Optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.
Guarantee:
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty (From the date of shipment).
Technician support:
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Company Informations:
Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.
We also have related optical products and good solutions to satisfy customers' requirements.
