High Recovery New Coming Durable China Jaw Crusher for Sale

Jaw Crusher is one of the main types of primary crushers in a mine or ore processing plant. Jaw Crusher is a kind of stone crusher, and it is also called rock crusher, jaw breaker, stone jaw crusher, single toggle jaw crusher and aggregate jaw crusher. This series of stone crusher plant can reach the crushing ratio of 4-6 and the shape of final product is even. The rock crushers are widely used in mining, building materials, chemical industry, and metallurgy and so on. It is suitable for primary and secondary crushing for all and rocks with compressive strength less than 320 MPa. In construction, road and railway building, construction and other industries are widely applied to crush high hardness, mid hardness and soft rocks and ores such as slags, construction materials, marble, etc. As a professional jaw crusher supplier, Kunming Hengxing jaw breakers have been sold to 75 countries, the price and quality of jaw crushers is widely recognized, we always stick to be your satisfying partner.

1. Improvethe feeding capacity and output for crushing cavity is deep and there is no dead area.
2. High reduction ratio and uniform final product size;
3. Spacing piece type discharge-hole adjustment device is more reliable and convenient;
4. Convenient replacement of parts and small work load of maintenance;
5. Simple structure, reliable operation and low operation cost;
6. Energy-saving: single machine can save by 15% to 30% , the system can save by over 30% to 60%;
7. Large adjustment range of discharge hole which can meet the demands of different clients;
8. Low noise and little dust;
9. The outlet employs pad-style adjustment devices which increases the flexibility of the equipment.

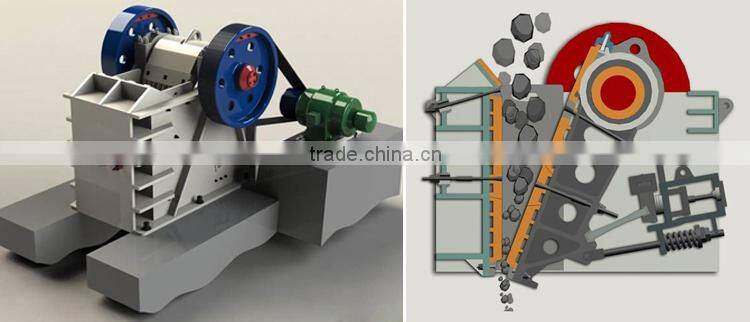

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves, So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet

PE series jaw crusher, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble, etc. compression strength does not exceed 320Pa. This machine is suitable for mines, building materials, highway, railway, water conservancy and chemical industry, etc.
