Product Details
| Place of Origin | Hunan, China | Brand Name | GL | |
| Model Number | GL-FTTH | Type | Cat 1 | |
| Number of Conductors | 1 |
Product Description
2016 hot new 1 core drop fiber optic ftth pigtail
Description:

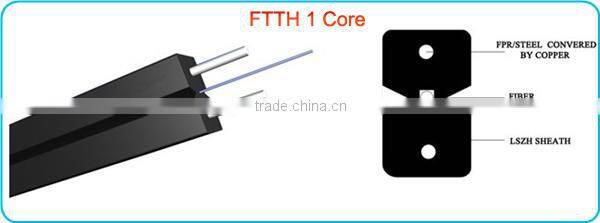

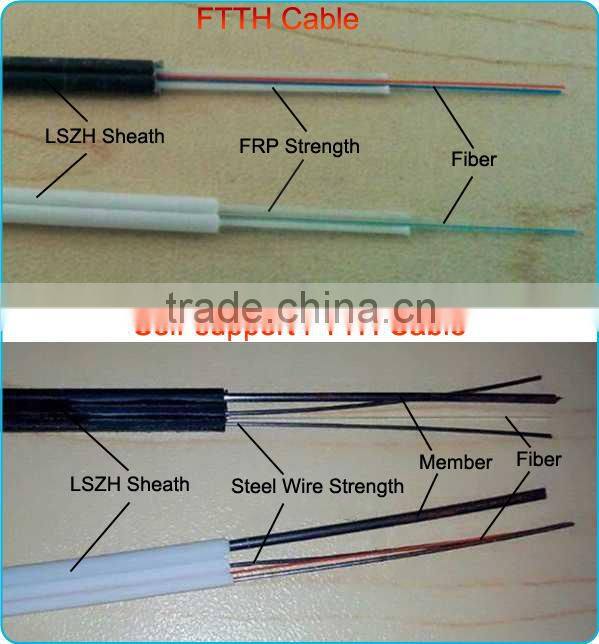

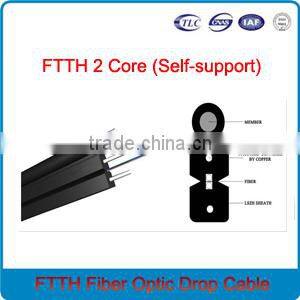

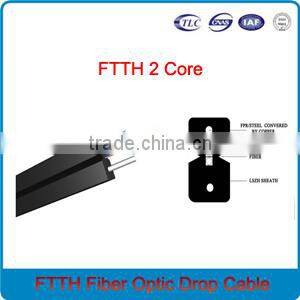

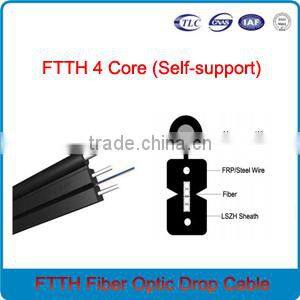

* The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP)
are placed at the two sides. Then the cable is completed with a black or color LSZH/PVC sheath.
Characteristics:
* Weight, low cost, and practicability.
* Suitable for limited space field of the branch, indoor series
* Laid to facilitate construction operations;part and the cable
* Jacket use low smoke, halogen-free flame-retardant materials.
* Prevent lightning and strong electric environment;
* FRP or KFRP strengthen the component materials
Technical Parameter:
Cable Count | Out sheath | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage | |||
(MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
1 | 3.1*2.0 | 8 | 600 | 200 | 1000 | 300 | 20D | 10D | 40 |
2 | 3.1*2.0 | 8 | 600 | 200 | 1000 | 300 | 20D | 10D | 40 |
4 | 4.1*2.0 | 10 | 600 | 200 | 1000 | 300 | 20D | 10D | 40 |
1 (Self-support) | 5.3*2.0 | 21.0 | 600 | 200 | 1000 | 300 | 20D | 10D | 40 |
2 (Self-support) | 5.3*2.0 | 21.0 | 600 | 200 | 1000 | 300 | 20D | 10D | 40 |
4 (Self-support) | 5.6*2.0 | 21.5 | 600 | 200 | 1000 | 300 | 20D | 10D | 40 |
12 (Self-support) | 3.0*9.0 | 21.7 | 600 | 200 | 1000 | 300 | 20D | 10D | 40 |
Optical Characteristics: | ||||
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 | ||||
Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
G.652D | B2: Zero dispersion shifted | |||
G.655 | B1.2 :Cut-off wavelength shifted | |||
G.657(A1,A2 ,B3) | B4: Main technical data for positive | |||

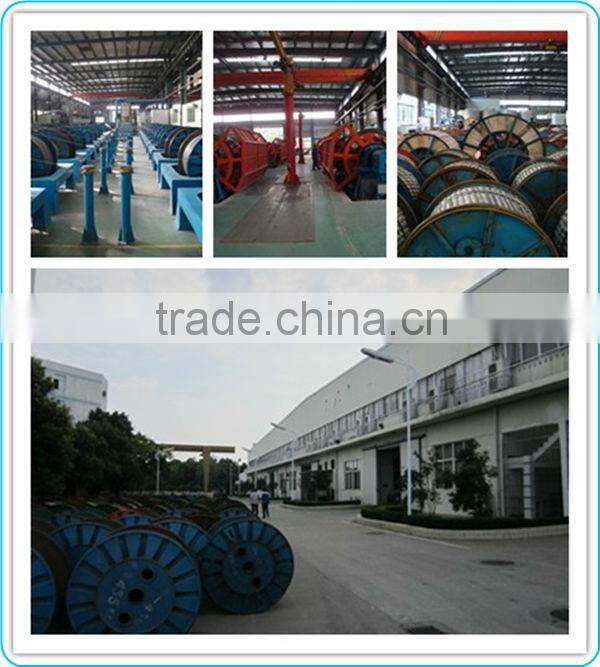

Our Factory:
Hunan Guanglian Photoelectricity Electricity Co.,Ltd is a leading enterprise which has
specialized in manufacturering of fiber optic cable for more than 9 years, we can supply cables
such as Outdoor Fiber Optical cable, Indoor Fiber Optical cable, FTTH Cable, Special Fiber Optic
Cables (OPGW),etc. The application can involve to Aerial / Duct / Underground, etc.
SINCERELY WELCOME YOUR COMING TO US!

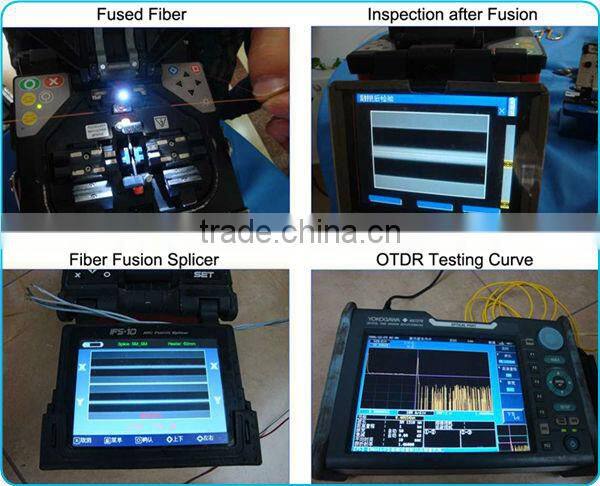

Cable Testing:
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber
Cable to withstand mechanical stresses and strains likely to be encountered in its lifetime. Each
mechanical characteristics can be tested on testing machine for the particular test.
Related Product:

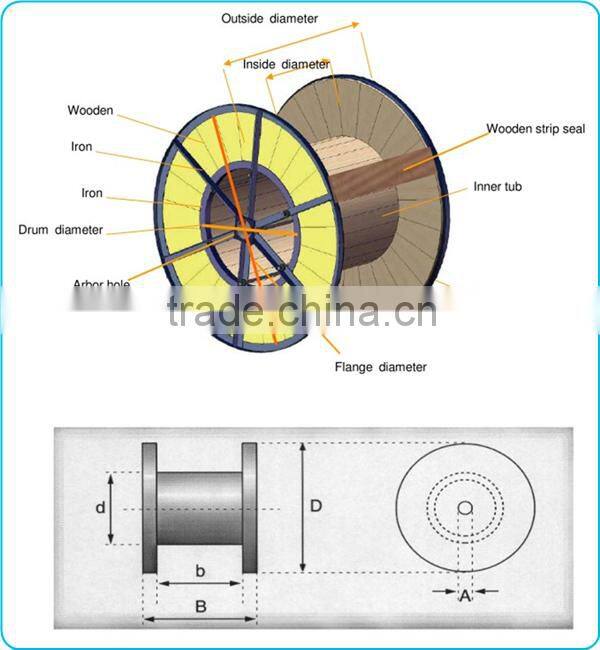

Wooden Drum:
The cables will be shipped on disable wooden or treated wooden drums.
Inner packing: Steel reel on wooden drums which wrapped with insulated material;
Out packing: Protected by wooden batterns.
PS:The inner and outer ends of cable will be capped and made accessible for testing. A direction
of rotation arrow is marked on the drum together with the identification information.
Cooperated Clients:
Advantages from GL
♦ We accept OEM and ODM. The cable size and material are customized.Ur own logo and
own design are welcome. Which makes our custommers satisfied.we have advanced facilities and
excellent quality control department. We will produce according to ur requirment and description;
♦ With more than 9 years experience in fiber optic cable, based on our superior quality, competitive
price and professional service, we already cooperated and established long-term business
relationship with both domestic and overseas famous enterprises.
