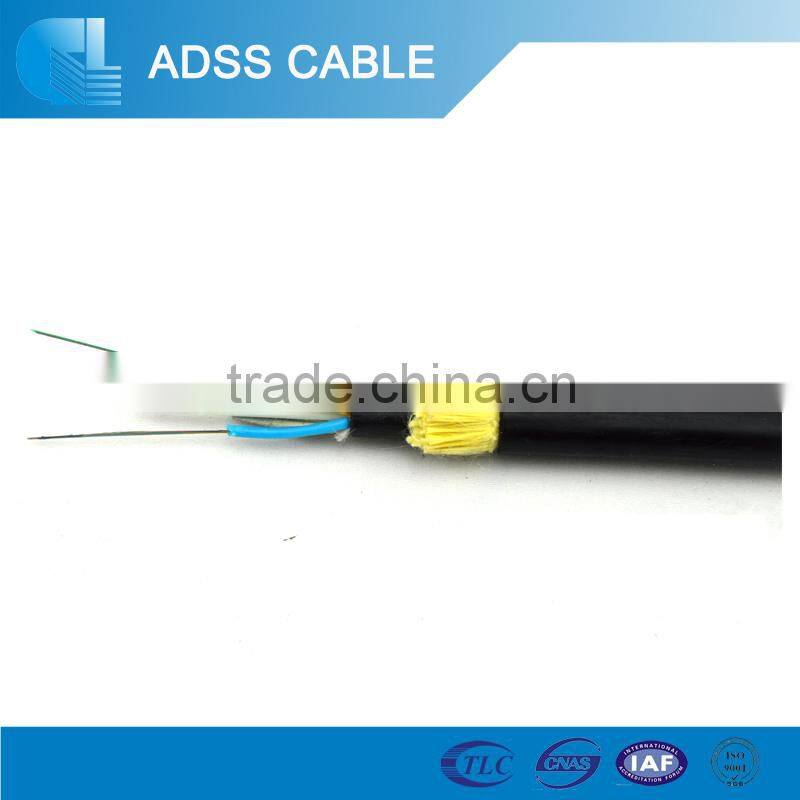

Outdoor Optical Fiber Cable All-dielectric Self-supporting ADSS 24core

1. Loose tube design

    Stable performance and compatibility with all common fiber types

2. Self-supporting

     Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.

3.Track-resistant &jacket available

    For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line,   must by the resistance to corrosion(AT) outer sheath.

4.Sutable for Aerial self-support installation

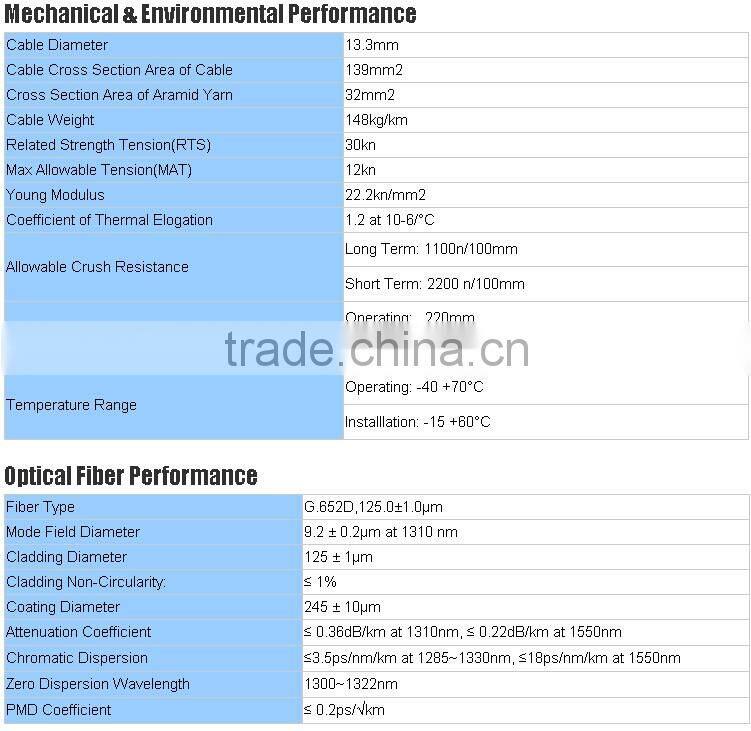

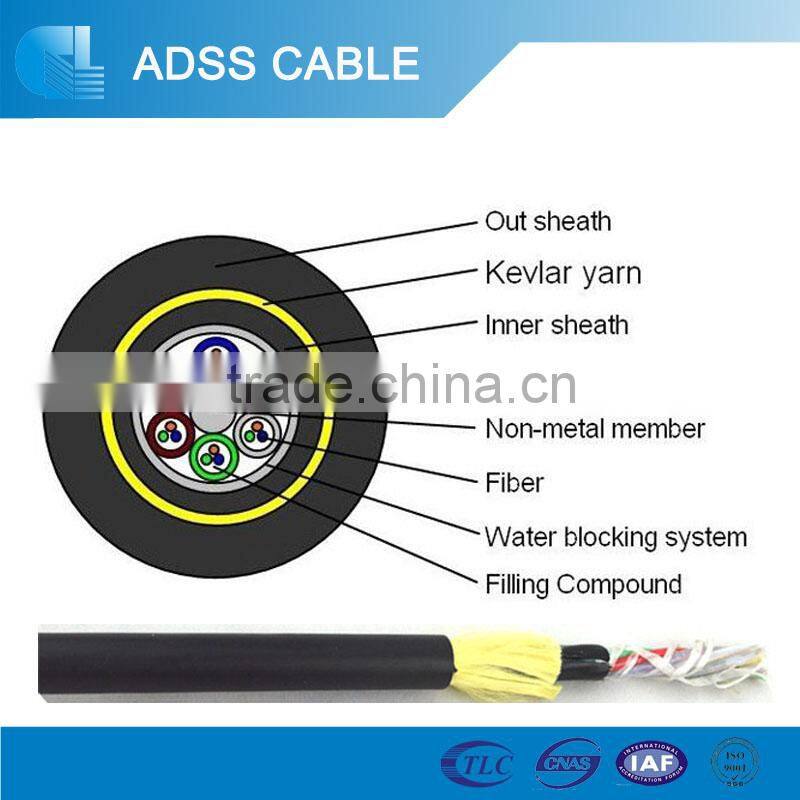

Cable Construction Parameter

Note:

1. Standard Packaging:

Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.

2. Sheath mark

The following printing(white hot foil indentatioin)is applied at 1-meter intervals.

a. Supplier: Guanglian or as cuctomer required

b. Standard Code(Product Type, Fiber Type, Fiber Count)

c. Year of manufacture: xxx

d. Length marking in meters

1. Shipping: Generallyby sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

2. Payment: We accept T/T, L/C and Western Union, just choose what you like

3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.

4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely

Quote Request Information

1. Fiber Count: 2 to 144 Fibers

2. Span length: 50meter to 800meters is available

3. Fiber type: Various kind of Single mode or multi mode is available

4. Line Voltage: 10kV, 35kV, 110kV or 220kV

5. Order Quantity

Hunan guanglian photoelectricity technologies  Co.,Ltd  is the professional enterprise on fiher optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.

1. The Gate of Factory

 2. Raw Material

3. Production Line

4. Fiber Optic Cable Testing

Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.

 5. Wooden Drums

♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

 own design are welcome.  We will produce according to ur requirment and description;

♦  Please send us inquiry for more products info and we will give you feedback in 12 hours.

Contact with us
