Stainless Steel Gold Mercury Amalgamator Machine

This Amalgamator was newly designed with a nice outcome. It’s really good for particulate with good fluidity or powder. Degree of mixing could reach to 97% to 98%. It is widely used for chemical, medicine and light industry.

The amalgamator always works with mercury after gravity separation so as to get the pure gold. Also the amalgamator barrels will fix the retort to recovery the mercury.

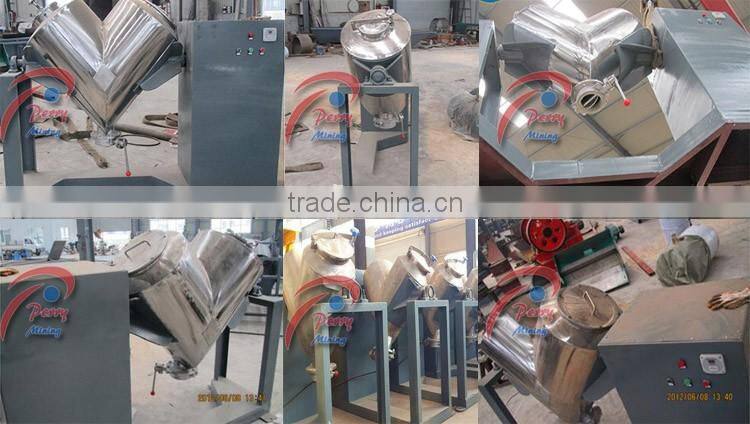

  Gold Amalgamator Machine  Gold Amalgamator Machine  Gold Amalgamator Machine  Gold Amalgamator Machine

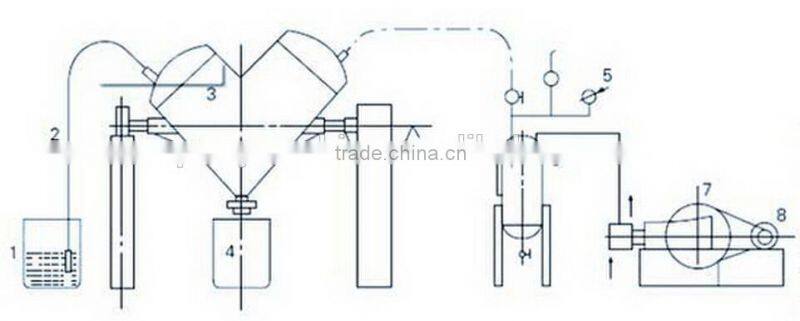

Structure of  Gold Amalgamator Machine

1.Cylinder of raw material 2. Cylinder of suck raw material 3. Mixer 4. Cylinder of discharged

5.Vacuum meter 6. Tank 7.Vacuum pump 8. Motor

1. Barrel is usually made by stainless steel. Its inner and outer are all polishing. From its structure, we could ensure no dead space for remains and easy to rinse thoroughly. It contains three ports, partly for feeding, maintenance and discharging. We provide customized service if U have any other requirement on material quality. Its frame is welded by nice carbon steel and wrapped with sheet iron.

2. Its rotating time could be controlled, and then it will stop.

3. This equipment should be put on the horizontal cement floor. It should be fixed by foundation screw to ensure its smooth operation. Check the jog running. Make sure no leakage.

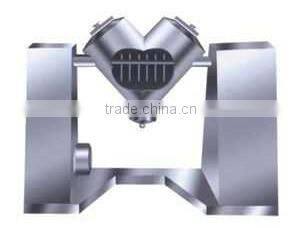

Working principle of  Gold Amalgamator Machine

It consists of two cylindrical barrels which shaped An V. When the barrel rotates, material would combine from separation. After one turn, it would reverse from combination to separation. Meanwhile, with vertical mobility, this operation could get a good mixing result.

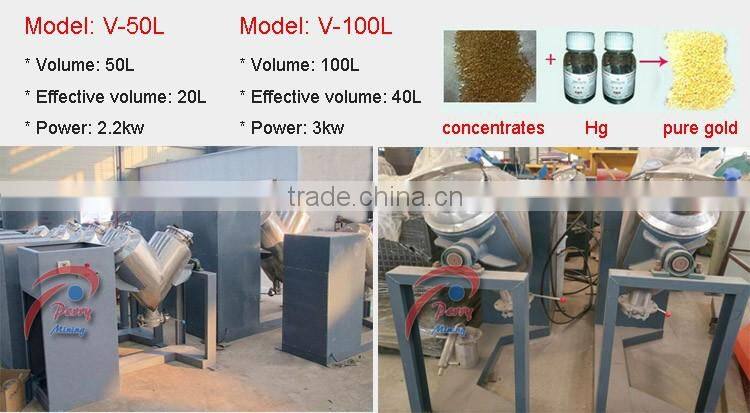

Technical specifications of  Gold Amalgamator Machine

  Gold Amalgamator Machine  Gold Amalgamator Machine  Gold Amalgamator Machine  Gold Amalgamator Machine

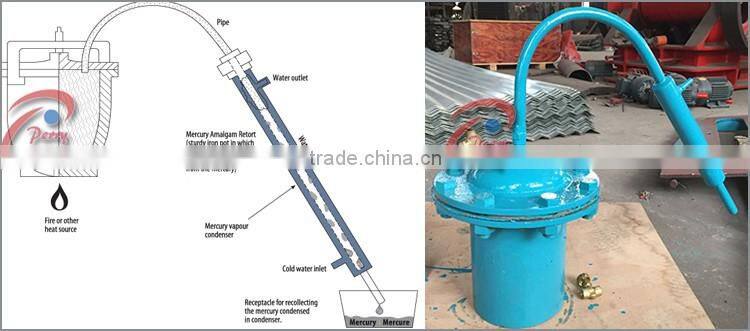

Amalgam retort for separating gold from mercury

The Gold Amalgamator Machine is used to mix the gold concentrates and mercury so that the mercury will wrap the gold. Then we will get the gold amalgam.

The next process after the amalgamator is to distill the gold amalgam in the amalgam retort so as to separate the gold from mercury, during which we could get the pure gold and recover the mercury for re-using.

Gold Amalgamator Machine  Gold Amalgamator Machine  Gold Amalgamator Machine

Gold melting furnace

The following process after distilling amalgam retort is the gold meltng. The separated pure gold sands will be melted into gold bar by gold melting furnace.

  Gold Amalgamator Machine  Gold Amalgamator Machine  Gold Amalgamator Machine  Gold Amalgamator Machine

  Gold Amalgamator Machine  Gold Amalgamator Machine  Gold Amalgamator Machine
