Permanent Magnet Wet High-intensity Drum Magnetic Separator

CTB series drum type permanent magnetic separator is usually applied in wet process to recover or remove the fine particle minerals with strong magnetism. With the function of continuously feeding and discharging, the magnetic separator has the features of high magnetic intensity, large working gap, and huge processing capacity.

After the ore pulp are fed into the magnetic area, the high magnetism minerals will be absorbed on the surface of drum while the minerals with weak or nonmagnetic minerals will be discharged out. Rotating along with the drum, the high magnetism minerals will be taken out the magnetic area and washed into the concentrates tank by water.

The drum could be configured with 3 types of tank which are respectively the fair-current, counter-current, and semi-counter-current so as to adapt to different separation requirements.

• The fair-current type is applicable for roughing and cleaning concentration of 6-0mm minerals;
• The counter-current type is applicable for roughing and scavenging concentration of 0.6-0mm minerals, as well as heavy medium recovery in coal separation industry;
• The semi-counter-current type is applicable for roughing and cleaning concentration of 0.5-0mm minerals, especially the cleaning of 0.15-0mm minerals.

Magnetic Separator Magnetic Separator Magnetic Separator Magnetic Separator

>> Structure of Magnetic Separator

CTB series magnetic separator consists of magnetic drum, tank body, support, feed box, discharge box (ore concentrate box), drive motor, motor reducer, control box, etc.

>> Technical specification of Magnetic Separator

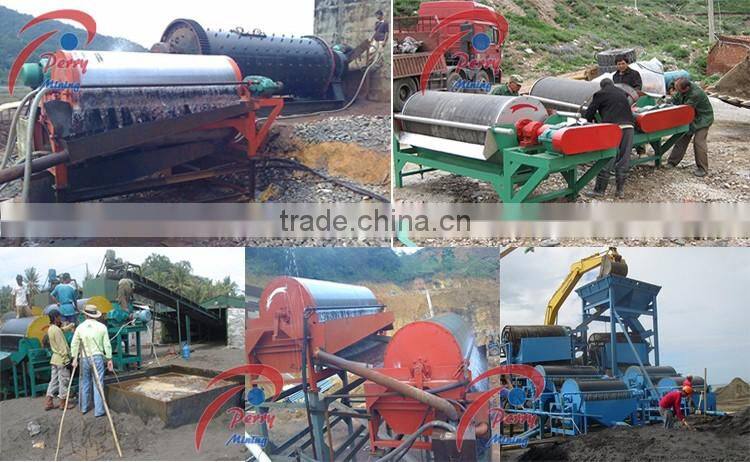

 >> Engineering cases of Magnetic Separator

 Magnetic Separator Magnetic Separator Magnetic Separator Magnetic Separator

 Magnetic Separator Magnetic Separator Magnetic Separator Magnetic Separator

Company Information

 Jiangxi Perry Mining Machinery Manufacturing Co., Ltd, professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.



Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.   Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on.
