Product Details
| Place of Origin | Guangdong, China | Brand Name | HCC | |
| Model Number | HCC 890 |
Product Description
Cheap multi-function card reader/writer HCC890 with PCI pinpad
General

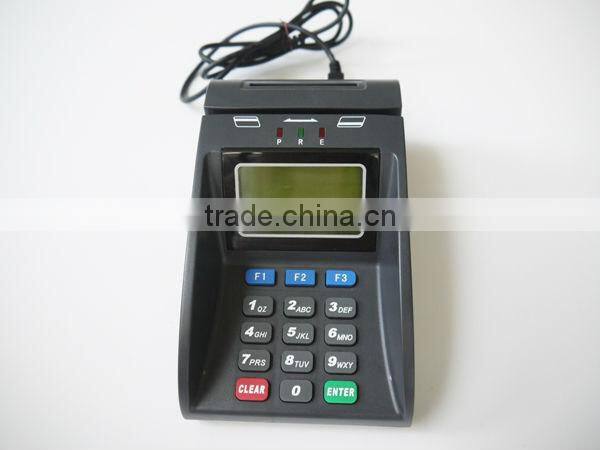

HCC890 is a multifunction Pinpad which perfectly combine the magnetic card reading, IC card / SAM card reading & writing, contactless card reader/writer and also customer personal information & password entry.
HCC890 has compact and refined appearance to save counter space, ergonomically design and user-friendly for operation, reliable performance and flexible application to ensure highly secure service. It is much suitable for bank network, insurance, medical treatment, tariff and POS system.
Feature
Ÿ 15 key include general number input 0-9, ENTER , CANCEL and 3 other functional keys;
Ÿ LCD graphic display and beep indication
Ÿ With internal DES module (3DES module available), realize data transfer and authentication under encryption
Ÿ Encryption support DUKPT & Master/Session Key, compatible with
ANSI X9.24
Ÿ PC/SC, T=0 and T=1 compatible
Ÿ Self-destroyed against violation
Ÿ Provide DEMO drive program and tools for further development in Windows.
Specification
LCD graphic display | 128×64 dots, display 16×2 characters at optional |
Keypad | 15 key, include 10 numeric key 0-9, ENTER , CANCEL and 3 function key |
Magnetic reader | Bi-directional reading track 1/2/3 of magnetic card complied with ISO-7811/7816 ( Dual magnetic head design at optional) |
IC card reader/writer | IC card wedge, also read memory card & CPU card, internal 1-4 SAM card wedge available at option. |
Contactless card reader/writer | ISO 14443 Type A protocol |
Keypad encryption | DES/3DES & DUKPT |
Communication Interface | Standard RS232 interface or USB interface available at option |
Power supply | RS232 interface: P4 power connector supply DC+12V, (AC 90 ~ 250V) USB interface:USB interface supply DC+12V, or fetch power from USB directly; |
Dimension | 180×110×70mm |
Weight | 600g |
Working environment | -10°C-60°C, 20-98 RH, noncondensing |
Model Description:
890x1-x2x3x4x5
Type | X1 | Interface | X2 | LCD | X3 | Magnetic Tracks | X4 | IC/PSAM | X5 | Contactless card |
890 E-Payment Pinpad | R | RS232 Series port | S | 16*2 Character | 4 | 1&2 tracks | 0 | NO | 0 | NO |
U | USB | L | 128*64 Graphic | 5 | 2&3 tracks | 1 | Smart Card | 1 | Yes | |
|
|
|
| 6 | 1&2&3 tracks | 2 | Smart Card and SAM |
|
| |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
For example
HCC890 R S420 – Pin Pad, with RS232 series interface, 16*2 characters LCD, 1/2 magnetic strips reader, smart card reader, SAM module.
