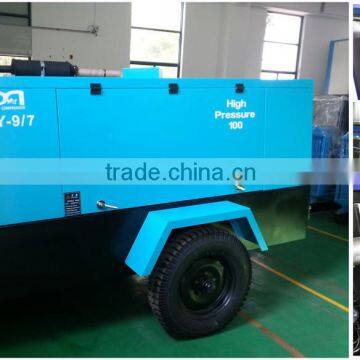

Trailer mounted portable diesel Air Compressor screw
- Shanghai
You May Like
-
Diesel engine screw type Air Compressor for mining
-
Diesel engine portable screw type Air Compressor for mining
-
7bar 10m3/min portable diesel engine rotary screw air compressor
-
diesel engine driven portable air screw compressor
-
portable Diesel air Compressor for mining jack hammer
-
Truck mounted portable diesel Air Compressor machine for mining
Product Details
| Condition | New | Type | Screw | |
| Configuration | Portable | Power Source | Diesel | |
| Lubrication Style | Lubricated | Mute | Yes | |
| Place of Origin | Shanghai, China | Brand Name | DREAM | |
| Model Number | DMCY-13/13 | Dimension(L*W*H) | 3450*1520*2220MM | |
| Weight | 3200KG | Certification | IOS9001 | |
| Warranty | 1Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Trailer mounted portable diesel engine diesel Air Compressor screw
- SKF Bearing match with high effciency screw air end,make sure long service time.
- Yuchai and Cummins diesel engine offer stable power supply,make sure low oil consumption,strong power.
- 1-2 years warranty period for whole machine,5 years for air end.
1.Air end:Patent shape design for big diameter rotor,air end connect to diesel engine by high elasticity shaft coupling,without increasing gear and make sure air end have the same speed with diesel engine,high efficiency,good reliability and long service time.
2.Diesel engine:Use Cummins,Yuchai,Duetz and domestic and foreign famous diesel engine,meet to level II requirement of emission, strong driving force and low oil consumption.
3.Air control system:Simple and reliable system,automatic adjust inlet air capacity from 0-100%,as per air delivery capacity.Meanwhile,Automatic adjust accelerator to save diesel as possible.
4.Microcomputer control system:Intelligent control air compressor’s outlet air pressure,temperature,diesel engine speed,oil pressure,water temperature,oil tank’s level and others,automatic warning and stop machine protection.
5.Filter:a.,b.Multilevel oil filter,suitable to most oil filter,c.Large oil water cooler,suitable to high temperature and altitude environment.
6.Ample maintenance door,easy to maintain most parts,more convenient to maintain air filter,oil filter,fuel tank,battery and oil cooler,no need to stop machine.
Model | Air discharge (m3/min) | Discharge pressure | Diesel Engine | Fuel oil tank volume (L) | Weight | Dimension | Wheels | |
Model | Displacement (L) | |||||||
DMCY-6/7 | 6 | 0.7 | YCD4B22-95 (70Kw) | 2.977 | 80 | 1400 | 3750*1920*1700 | Two |
DMCY-7.5/7 | 7.5 | 0.7 | YC4D80-K11 (70Kw) | 4.21 | 130 | 1850 | 3900*1920*1700 | Two |
DMCY-9/7 | 9 | 0.7 | YC4D95Z-K20 (70Kw) | 4.21 | 130 | 1850 | 3900*1920*1700 | Two |
DMCY-8/14 | 8 | 1.4 | YC4D95Z-K20 (70Kw) | 4.21 | 130 | 1900 | 3900*1920*1900 | Two |
DMCY-10/7 | 10 | 0.7 | 4BTA3.9-C125 (93Kw) | 3.9 | 130 | 1900 | 3900*1920*1700 | Two |
DMCY-10/10 | 10 | 1 | 4BTA3.9-C125 (93Kw) | 3.9 | 130 | 1900 | 3900*1920*1900 | Two |
DMCY-9/14.5 | 9 | 1.45 | YC6B150Z-K20 (110Kw) | 6.871 | 130 | 2380 | 4080*1980*2350 | Two |
DMCY-12/10 | 12 | 1 | YC6B150Z-K20 (110Kw) | 6.871 | 130 | 2380 | 4080*1980*2350 | Two |
DMCY-10/13 | 10 | 1.3 | YC6B150Z-K20 (110Kw) | 6.871 | 130 | 2380 | 4080*1980*2350 | Two |
DMCY-12/7A | 12 | 0.7 | YC4A125Z-T21 (93Kw) | 4.84 | 130 | 2050 | 4000*1980*1900 | Two |
DMCY-12/7 | 12 | 0.7 | 4BTA3.9-C125 (93Kw) | 3.9 | 130 | 2050 | 3900*1980*1900 | Two |
DMCY-12/12 | 12 | 1.2 | 6BTA5.9-C160 (120Kw) | 5.9 | 130 | 2380 | 4080*1980*2350 | Two |
DMCY-11/13 | 11 | 1.3 | 6BTA5.9-C180(132Kw) | 5.9 | 130 | 3000 | 3200*1600*2300 | Four |
DMCY-13/13 | 13 | 1.3 | 6BTA5.9-C180 (132Kw) | 5.9 | 130 | 2750 | 3450*1520*2220 | Four |
DMCY-13/13A | 13 | 1.3 | YC6A190Z-T10 (140Kw) | 7.26 | 200 | 2750 | 3450*1520*2220 | Four |
DMCY-17/7 | 17 | 0.7 | 6BTA5.9-C180 (132Kw) | 5.9 | 150 | 3050 | 3380*1640*2350 | Four |
DMCY-15/13A | 15 | 1.3 | YC6A240-20 (180Kw) | 7.26 | 200 | 3350 | 3380*1650*2500 | Four |
DMCY-16/13 | 16 | 1.3 | 6CTA8.3-C215 (160Kw) | 8.3 | 300 | 3700 | 3980*1800*2450 | Four |
DMCY-13/17 | 13 | 1.7 | 6CTA8.3-C215 (160Kw) | 8.3 | 300 | 2380 | 3780*1980*2350 | Four |
DMCY-18/17 | 18 | 1.7 | 6CTA8.3-C260 (195Kw) | 8.3 | 300 | 3700 | 3980*1800*2450 | Four |
DMCY-17/14.5 | 17 | 1.45 | 6CTA8.3-C260 (195Kw) | 8.3 | 300 | 3700 | 3980*1800*2450 | Four |
DMCY-22/8 | 22 | 0.8 | 6CTA8.3-C260 (195Kw) | 8.3 | 300 | 4000 | 4580*1950*2600 | Four |
DMCY-22/14 | 22 | 1.4 | YC6M340-20 (250Kw) | 9.84 | 400 | 4500 | 4580*1950*2600 | Four |
DMCY-22/14K | 22 | 1.4 | 6CTA8.9-C325 (239Kw) | 8.9 | 380 | 4500 | 4580*1950*2600 | Four |
DMCY-27/10 | 27 | 1 | YC6M340-20 (250Kw) | 9.84 | 400 | 5000 | 4600*1950*2850 | Four |
DMCY-32/10 | 32 | 1 | YC6M390-20 (292Kw) | 9.84 | 380 | 5000 | 4600*1950*2850 | Four |
DMCY-19.5/19 | 19.5 | 1.9 | 6CTA8.3-C260 (195Kw) | 8.3 | 300 | 3700 | 3980*1800*2650 | Four |
DMCY-22/20 | 22 | 2 | 6CTA8.9-C325 (239Kw) | 8.9 | 380 | 4500 | 4600*1950*2850 | Four |
DMCY-26/20 | 26 | 2 | 6LTA8.9-C360 (264Kw) | 8.9 | 380 | 4500 | 4600*1950*2850 | Four |
DMCY-27/22 | 27 | 2.2 | NTA855-P400 | 14 | - | 4850 | 4600*1950*2850 | Four |
DMCY-26/25 | 26 | 2.5 | QSZ13-C500 | 13 | - | 5500 | 4600x1950x2850 | Four |
DMCY-33/25 | 33 | 2.5 | QSZ13-C550 | 13 | - | 6800 | 4700*2100*2850 | Four |
DMCY-39/25 | 39 | 2.5 | KTA19-P700 | 19 | - | 7000 | 4700x2100x2850 | Four |
DMCY-21/35 | 21 | 3.5 | QSZ13-C500 | 13 | - | 5500 | 4600x1950x2850 | Four |
DMCY-26/35 | 26 | 3.5 | QSZ13-C550 | 13 | - | 6500 | 4700x2100x2850 | Four |
DMCY-33/35 | 33 | 3.5 | KTA19-P700 | 19 | - | 6800 | 4600*1950*2850 | Four |
Remark:1Mpa=10bar=145psi,1m3/min=35.3cfm
Dream(Shanghai) Compressor Co., Ltd., founded in 2005, is a Sino-German high-tech enterprise in research, development, production and sales. Our company is located in Songjiang district, Shanghai, covering an area of ten thousand square meters with more than 300 employees. We have set up offices in the major provinces and cities. We are not only provide the high-quality air compressors from minimum 7.5Kw to maximum 355Kw, but also provides matching processing equipment of compressed air.We will wholeheartedly serve you.
