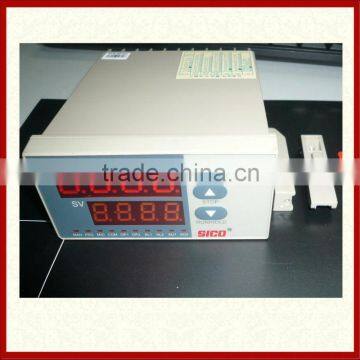

Artificial Intelligence Temperature Controller

Input

Thermocouple(TC),resistance temperature detector(RTD),standard current and volage signals.

Display

Process value(PV),setting valuse(SV):-1999+1999

Output(out1,out2)alarm(alarm1,alarm2)auto setting(AT)display:LED

Control way

1. PID control(including ON/OFF,position PID and continuous PID)

2. Auto setting control

Accuracy

Measurement accuracy:±0.5%FS compensation error of cold terminal:±2(amend within 050 by soft)

Resolution:14bit. Sampling period:0.5sec.

Setting range

Setting value(SV):same range with PV derivative time(D):03600sec(no derivative action when set to 0)

Proportion bard(P):0full range(ON/OFF control when set to 0) proportional period:1100sec

Integration time(I):03600sec(no integral action when set to 0)

On-off control output hysteretic loop width:1100(or other PV units)

Control output

1. currency output: DC 010Ma,420mA(RL500Ω)

2. voltage output:DC 0-5V,1-5V(RL10K)

3. relay output:contact capacity:250V AC 3A(resistive load)

4. voltage impulse output:0-12V(applicable for solid state relay SSR)

5. silicon controlled rectifier(SCR)output:zero-cross triggering or phase-shift triggering(resistive load)

Alarm output

2 groups output at most,12 modes

Inanlating resistanle

50MΩ(500V DC)

Inanlating intensity

1500V AC/min

Power cosumed

10V

Work condition

050,3085RH,no corrosive gas

weight

Abt.0.5Kg(CXTA type)
