SMJY(Different-diameter)Pre-insulated Joint Pipe
- 68 Piece / Pieces per Month
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SICO |
Product Description

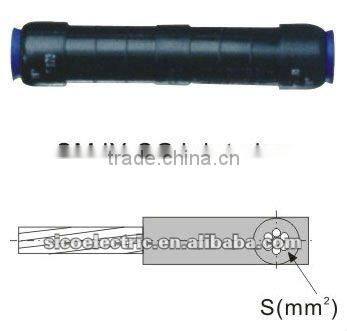

SMJY(Different-diameter)Pre-insulated Joint Pipe
Product description
SMJY (different diameter) Pre-insulated Joint Pipe
It is apply in connect the different diameter cable and suspend cable below 10KV
It have grease inside pipe and apply in different diameter cable joint, Al. alloy cable joint at suspend
Apply in cable connection of Al. to Al./ Al. to Cu. /Cu to Al.
It have press resistance and waterproof (It is dielectric strength test 6KV/min)
The joint colors identify section indication
Mark logos list on pipe, numbers of press and order, the length of stripping cable, cable section and press mold.

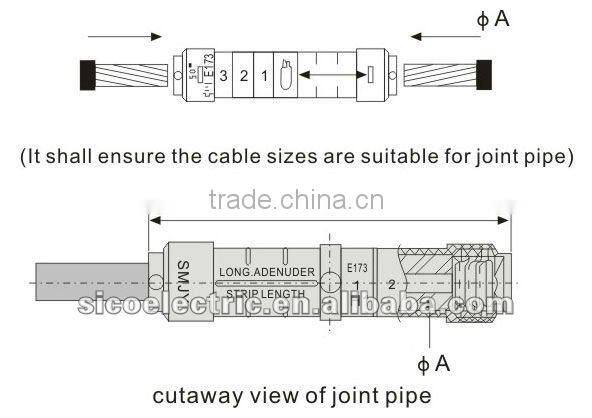

Joint pipe for different diameter
| Type | Cross area of conductor(mm2) | Diameter of conductor(mm) | Joint pipe(mm) | Mold(mm) | Color ribbon | Package | ||
| S1 | S2 | A1 | A2 | |||||
| SMJY 4 CG | 4 | 4 | 2.8 | 2.8 | 82 | 14 | Lvory | 10 |
| SMJY 6-4 CG | 6 | 4 | 3.4 | 2.8 | 82 | 14 | Brown | 10 |
| SMJY 6 CG | 6 | 6 | 3.4 | 3.4 | 82 | 14 | Brown | 10 |
| SMJY 10-6 CG | 10 | 6 | 4.3 | 3.4 | 82 | 14 | Green | 10 |
| SMJY 10 CG | 10 | 10 | 4.3 | 4.3 | 82 | 14 | Green | 10 |
| SMJY 16-4 CG | 16 | 4 | 5.3 | 2.8 | 82 | 14 | Blue | 10 |
| SMJY 16-6 CG | 16 | 6 | 5.3 | 3.4 | 82 | 14 | Blue | 10 |
| SMJY 16-10 CG | 16 | 10 | 5.3 | 4.3 | 82 | 14 | Blue | 10 |
| SMJY 16 CG | 16 | 16 | 5.3 | 5.3 | 82 | 14 | Blue | 10 |
| SMJY 25-6 CG | 25 | 6 | 7 | 3.4 | 82 | 14 | Orange | 10 |
| SMJY 25-10 CG | 25 | 10 | 7 | 4.3 | 82 | 14 | Orange | 10 |
| SMJY 25-16 CG | 25 | 16 | 7 | 5.3 | 82 | 14 | Orange | 10 |
| SMJY 25 CG | 25 | 25 | 7 | 7 | 82 | 14 | Orange | 10 |
| SMJY 35-6 CG | 35 | 6 | 8 | 3.4 | 82 | 14 | Red | 10 |
| SMJY 35-10 CG | 35 | 10 | 8 | 4.3 | 82 | 14 | Red | 10 |
| SMJY 35-16 CG | 35 | 16 | 8 | 5.3 | 82 | 14 | Red | 10 |
| SMJY 35-25 CG | 35 | 25 | 8 | 7 | 82 | 14 | Red | 10 |
| SMJY 35 CG | 35 | 35 | 8 | 8 | 82 | 14 | Red | 10 |
