Woodworking CNC panel saw
- 50 Set / Sets per Month
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Table Panel Saw, Reciprocating panel saw | |
| Use | Woodworking | Style | Horizontal | |
| Place of Origin | Shandong, China | Brand Name | ZhongDing | |
| Model Number | MJB3300A | Usage | Wood cutting | |
| Certification | ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

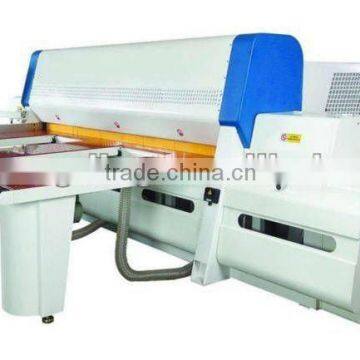

woodworking CNC panel saw
Brief Introduction:
1. Max cutting speed can be 36m/min. It is the fastest cutting speed in china. (the ordinary models can only 26m/min).
2. All the Programmable Controller (PLC) and other electric parts are from Mitsubishi in Japan.
3. The working table is used the 16mm thick of high-strength extruded aluminum alloy, it is bent by the whole alloy. it is with more stable and reliable performance
4. The diagonal precision of Automatic system is 0.3mm, the scoring saw precision is below 0.1mm. Much more precision.
5. Alpha frequency converter to control the speed.
Technical Specification:
Max. Cutting Length | 3300mm |
Max. Cutting Thickness | 90mm |
Diameter of Main Saw Blade | Φ400mm |
Diameter of Main Saw Spindle | Φ60mm |
Rotation Speed of Main Saw Blade | 4800rpm |
Diameter of Scoring Saw Blade | Φ180mm |
Diameter of Scoring Saw Spindle | Φ30mm |
Rotation Speed of Scoring Saw Blade | 6500rpm |
Forward Speed of Saw Carriage | 9~37m/min |
Backward Speed of Saw Carriage | 67m/min |
Drive Motor of Main Saw Blade | 15kw |
Drive Motor of Saw Carriage | 1.5kw |
Automatic Feeding Motor | 1.5kw |
Total power consumption | 18kw |
Automatic Feeding Speed | 50m/min |
Pneumatic Pressure | 5~7kg/cm2 |
Table height from floor | 960mm |
Net Weight | 6200kg |
Overall Dimensions(L X W X H) | 5830X6630X1810mm |
