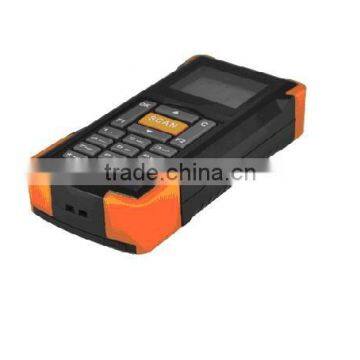

Stockcount Handheld
- shenzhen
- Credit Card
You May Like
Product Details
| Style | Other | Memory Capacity | Other, ≤ 16MB | |
| Brand Name | MAX | Model Number | RT-M3 | |
| Place of Origin | China | Color | Black, Yellow |
Product Description
Features:
nSIMPLE
Distinct function area for fast switch and straightforward operation
nSAFE
Supports real-time, storage and batch transmission
nWIRELESS
Adopts mainstream wireless and storage technology, free from cables
nCAMPACT
Cell phone size, easy to carry with comfortable feel
Radio Specifications: (optional Bluetooth or 433MHz)
BLUETOOTH |
|
Frequency | ISM band,2.400~2.483MHz |
Rate of Transmission | 2Mbps |
Output Power | Bluetooth Class2,3dBm |
Regulatory | Bluetooth 2.1 compliance |
Transmission Coverage | 10M visibility range (Max.) |
Antenna | Integrated PCB |
433MHz |
|
Frequency | ISM band,433MHz |
modulation | GFSK |
Rate of Transmission | 50Kbps |
Output Power | 20dBm (max) |
Transmission Coverage | 300M visibility range(Max.) |
Antenna | Integrated PCB |
Performance Characteristics:
Light Source | 650nm Laser Diode |
Scan Pattern | Single line |
Scan Rate | 45±2 /sec |
Scan Precision | 4mil |
Scan Width | 20mm@window,220mm@200mm |
Depth of Field | 0~500mm |
Roll(Till) | 30° |
Pitch | 65° |
Skew(Yaw) | 55° |
Resolution | 30% minimum reflectance |
Operating Mode | Continuous / itemized scanning |
Error Rate | 1 million-to-one |
Indicator | beeper,LCD |
Decode Capability | EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI… |
Interfaces supported | Mini USB receiver,optional RS232 or PS2 |
Electrical Parameters:
Receiver Voltage | DC5V |
Receiver Current | 120mA |
Battery | Rechargeable lithium ion battery (3.7V ,1700mAh) |
Charging Indicator | LCD |
Stockcount Working current | 150mA |
Stockcount Standby Current | 50mA |
Laser Safety | national classII regulatory |
EMC | CE & FCC DOC compliance |
Physical Characteristics:
Memory | 4M |
keypad | 17 keys |
Stockcount Dimensions | 102mm×46mm×28mm |
Material | ABS + silicon |
User Environment:
Operating Temperature | 0℃~45℃ |
Storage Temperature | -20℃~60℃ |
Humidity | 5%~95% (non-condensing) |
Ambient Light Immunity | Max.5,000 Lux(fluorescent) |
