G1388 Flysight radio audio remote control rc receiver RC306

Flysight  RC306 wholesale FPV 5.8Ghz  32CH Small Wireless Audio Video Receiver for FPV Transmitter

Product Description

1.Features

•  Channel changing by press channel button
•  ultra mini size
•  Easy to use and looks pretty

2.Specifications

Receiver:RC306

Remark

The transmitter's power input is ranging from 7-12V,however the voltage output from the TX for the camera us 0.5V,lower than the input power.It's suggested to use 3S lipo 11.1V battery.

Note:Antennas must be attched before powering on.

Frequency of each channel:

CH1: 5705 CH2:5685

CH3:5665 CH4:5645

CH5:5885 CH6:5905

CH7:5925 CH8:5945

3. Flysight Frequency:

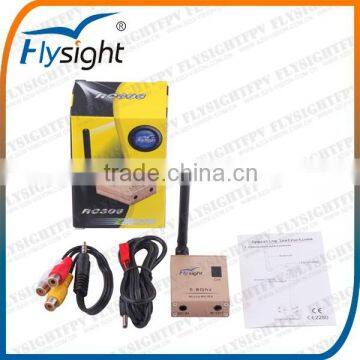

4.Contents

• 1x RC306 mini Receiver
• 1x 5.8Ghz "rubber duck" antenna
• 1x power cable - JST connection.
• 1x RCA cable connector set for video output

5.Our Product Advantages:

Compatible Fatshark FPV Tx Transmitter

1. We promise not to do the domestic market, avoiding cross sales.

2. Original products for our own brand Flysight, quality is warranty.

3. We aim to provide customers high quality products and services.

4.  Flysight hot  selling product models: SPX01,RC801  , TX58025,TX5802,TX5804,TX5812,TX5820V2,RC306.,etc.

5. OEM orders are welcome!

Product Image

RC306

Operating Instructions

How To Use

1. Connect RX/TX according to the schematics above .After powering on the RX/TX, “LED display” will show the initial channel number.

2. By quick pressing “Channel button” one times the channel number will change. While pressing button the channel number will increase in order of 1,2,3,4,5,6,7,8. “LED display” will show current channel number.

3. By long pressing (at least 3 seconds) “Channel button” the frequency band setup will appear and can be modified.
1).the letters for A,B,E,F band icons will show as follow:
“A” is A band, “B” is B band, “E” is E band, “F” is F band.
2).Long press “Channel button” to enter frequency band setup model, “LED display” will show the current frequency band, and the icon will lights up permanently; at this moment ,each quick pressing on “Channel button”, the frequency band will change in order of A,B,E,F.
Long pressing on “Channel button” again, it will quit from frequency band setup mode and the frequency is also be changed.
3). If you want to check the current working frequency band, please long press “Channel button”. Once again long pressing “Channel button” to quit menu.

Important notes
1.After performing frequency band setup ,please check properly quitting frequency band setup mode. Otherwise you can't change frequency correctly.

2. The unit will save current channel while changing and power off.

Trade Terms

♦ Payment: T/T in advance (Western Union or PAYPAL are welcomed)

♦ Production lead time  500PCS: 5-7days, 500~1000PCS:10-15days, above 5000PCS 15-20days.

♦ Sample can be delivered in 3days

♦ Shipping freight are quoted under your requests

♦ Shipping port: Shenzhen, Mainland China

♦ Discounts are offered based on order quantities

♦ MOQ:10PCS
