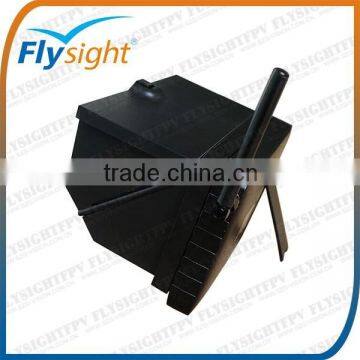

C764 5 Inch FPV 5.8G 32 Channels Vrx Wireless Mini DVR LCD Monitor DV05S V2 for DJI Phantom

Items

             Value

Wireless Receiving

5.8GHz   32 channels

A1:5.740GHz;A2:5.760GHz;

A3:5.780GHz;A4:5.800GHz

A5:5.820GHz;A6:5.840GHz;

A7:5.860GHz;A8:SPI

B1:5.725GHz;B2:5.745GHz;

B3:5.765GHz;B4:5.785GHz

B5:5.805GHz;B6:5.825GHz;

B7:5.845GHz;B8:5.865GHz

C1:5.733GHz;C2:5.752GHz;

C3:5.771GHz;C4:5.790GHz

C5:5.809GHz;C6:5.828GHz;

C7:5.847GHz;C8:5.866GHz

D1:5.705GHz;D2:5.685GHz;

D3:5.665GHz;D4:5.645GHz

D5:5.885GHz;D6:5.905GHz;

D7:5.925GHz;D8:5.945GHz

2.4GHz–8 channels

A1: 2414MHz;A2:2432MHz;

A3: 2450MHz;A4:2468MHz.

A5:2490MHz;A6:2510MHz;

A7: 2390MHz;A8:2370MHz

1.2GHz–8 channels

A1:1080 MHz;A2:1120MHz;

A3:1160MHz;A4:1200MHz

A5:1010 MHz;A6: 1040MHz;

A7:1240MHz;A8:1280MHz

1.2G-B–4 channels

A1:1258MHz;A2:1280MHz;

A3:1320MHz;A4:1360MHz

Within 5.8G-A

   8 channels

A1: 5865MHz;A2: 5845MHz;

A3: 5825MHz;A4: 5805MHz.

A5: 5785MHz;A6: 5765MHz;

A7: 5745MHz;A8: 5725MHz

Beyond 5.8G-B

8 channels

A1: 5705MHz;A2: 5685MHz;

A3: 5665MHz;A4: 5645MHz.

A5: 5885MHz;A6: 5905MHz;

A7: 5925MHz;A8: 5945MHz

Within 5.8G-C

  8 channels

A1: 5733MHz;A2: 5752MHz;

A3: 5771MHz;A4: 5790MHz.

A5: 5809MHz;A6: 5828MHz;

A7: 5847MHz;A8: 5866MHz

Within 5.8G-D

7channels for FPV

A1: 5740MHz;A2: 5760MHz;

A3: 5780MHz;A4: 5800MHz.

A5: 5820MHz;A6: 5840MHz;

A7: 5860MHz;A8: SPI

Beyond 5.8G-E

7 channels for FPV

A1: 5705MHz;A2: 5685MHz;

A3: 5665MHz;A4: 5645MHz.

A5: 5885MHz;A6: 5905MHz;

A7: 5925MHz;A8: SPI

Sensitivity

-88dB

AV IN

TV system

NTSC / PAL

Output voltage

3.6-4.2 V

AV OUT

TV system

NTSC / PAL

HD 5-inch LCD screen

Active area

108mm(W)  X  64.8mm(H)

Resolution

800 X 480 Pixel

Luminance for LCD

300 cd/m2

Video

Resolution

720*576 / 720*480

Video compress

MPEG-AVI    30fps

Play format

MPEG-AVI

Audio

Frequency

20HZ-20KHz stereo

Earphone Output

Left: 20MW+ right 20mW [16O](suit to largest volume)

Speaker

1W


Format

JPG/JPEG

Storage

External SD card

TF card  1GB-32GB(optional)

32GB recording time

10-32 hours

1GB photos

15625pcs

Operating system

PC

Windows & Mac OS

Port

USB 2.0

Language

Multiple

Power

Voltage

DC 5V

Current(receiving mode)

660MA

Current( recording mode)

680MA

Current(recording with off-screen mode)

340MA

AC adapter

DC 5V  2A

Built-in battery

Li-battery 3200Mah

Standby time

Wireless record

≥9.5 hours(off-screen);  ≥5hours(on-screen)

Wired record

≥12 hours(off-screen);  ≥6hours(on-screen) *LED camera not included.

size

without sunshield

131mm x 90.5mm x 18mm

size

with sunshield

131mm x 90.5mm x 28mm

Weight

without sunshield

215g

Weight

with sunshield

260g
