Home > Products > FPV 5.8G Diversity Receiver > D763 Black Pearl 7" HD Diversity Screen Monitor Receiver with HDMI for Radio Controlled Model Planes

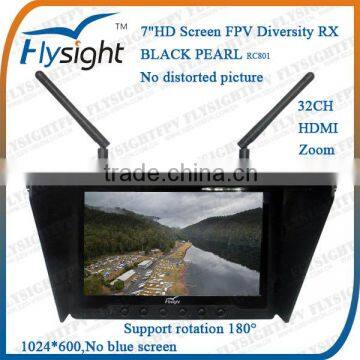

D763 Black Pearl 7" HD Diversity Screen Monitor Receiver with HDMI for Radio Controlled Model Planes
- Shenzhen China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
D764 FPV 7" LCD 5.8G 32CH FPV Monitor Receiver for Aircraft Flying
-
D765 Built-in 5.8G 32CH Diversity Receiver 7" LCD FPV Monitor for Electric Radio Controlled Airplane Kit
-
D766 7" LCD 32CH Wireless FPV Monitor Built-in Diversity Receiver 5.8GHz for RC Drone Aircraft
-
D767 32CH 5.8GHz Diversity Receiver 7 inch FPV Monitor Built-in Battery for Gopro Drone
-
D768 Flysight 5.8GHz 32CH Wireless Receiver 7" LCD FPV Monitor Diversity 1024*600 Resolution for Parrot Drone Helicopter
-
D769 Black Pearl 7" HD LCD Screen FPV Diversity Rx 5.8GHz 32CH FPV Monitor for DJI Quadcopter Phantom
Product Details
| Type | Other, Radio Controlled Model Planes | Power | Battery | |
| Radio Control Style | RC Hobby | Place of Origin | Guangdong, China | |
| Brand Name | Flysight | Model Number | RC801 |
Product Description
Specifications
Black Pearl 7" HD Diversity Screen Monitor Receiver with HDMI for Radio Controlled Model Planes1.HDMI
2.1024*600
3.Zoom
D763 Black Pearl 7" HD Diversity Screen Monitor Receiver with HDMI for Radio Controlled Model Planes
Features
*High resolution 1024*600
*No "blue screen" problem when the signal gets weak
*Sunlight readable with ultra brightness&definition screen
*Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
*Dual buffered AV outputs
*Can receive 2 different channels at the same time
*Not affect by 2.4GHz R/C Radios
*Anti-black, anti-blue, anti-flash.
*AV Receiver with Diversity inputs,AV, HDMI
*Support Zoom function
*Small, light weight, durable
*4 Bands and total 32 Channels
*Tripod connector: General 1/4 "thread
*Working Temperature: -10~+65 degree
*Support rotation 180 degree
Specification
Display Screen | Diagonal | 7 inch |
Resolution | 1024X600 | |
Contrast | 700:1 | |
Luminance | 300cd/m2 | |
Wireless Receiving | Sensitivity | -90dBm±1dBm |
Channel | 32Channel ( 4 Band X 8 Channel ) | |
Antenna Port | 2 X SMA,50ohm | |
Diversity receiving | Antenna diversity | |
TV System | NTSC/PAL | |
Video output level | 1.0Vp-p Typ,75ohm | |
Audio output level | 1.0Vp-p Typ,10Kohm | |
AV Port | RX1 AV OUT | Video,Audio output |
RX2 AV OUT | Video,Audio output | |
DIV AV OUT | Diversity receiving, Video,Audio output | |
AV IN | Video,Stereo Audio input | |
HDMI IN(A Type) | Support HDMI 1.3 Digital Input, Support HDMI Audio in | |
Built-in Microphone | 8Ω/1W X 2 | |
Power Supply | DC IN | 7~28V/ 2A |
DC OUT | Output Voltage:DC IN or battery voltage Output Current:1A | |
Battery | 11.1V/1000mAh(3 series LiPo cells) | |
Consumption | 12V input:7.8W | |
Dimensions | Main Body | 183X126X19.5mm(not include sun shadow) |
Battery | 105X87.5X6.7 mm(not include prominent part) | |
Weight | Main body | 350 g |
4 brands 32channels
Product Show
Advantages
1. Original products for our own brand Flysight, quality is warranty.
2. We aim to provide customers high quality products and services.
3. CE certification provided for our products model: TX58025, RC306, RC305 etc.
4. OEM orders are welcome!
Accessories
Charger Optional
Packing Details
1*Main Body
1*Sun Shadow
2*SMA Antennas
2*AV Cable
1*DC Input Cable
1*DC output Cable
1*Battery
1*Charger
Contact Us
- Shenzhen Aoweishi Technology Co., Ltd.
- Contact nameLisa Li Chat Now
- Phone0086-755-66634279
- AddressFloor 6th,CHINO-E industrial park MingZhu branch NiuLanQian Village Longhua New District Shenzhen,Guangdong,China, Shenzhen, Guangdong
