D758 7" LCD FPV 5.8GHz Receiver Monitor with Battery for Parrot Air Drone Toy
- Shenzhen China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
D760 5.8GHz 32CH 7" LCD Wireless Diversity Receiver FPV Monitor for Drone RC Helicopter
-
D761 No Blue Screen 7" LCD FPV Montior Ideal Display for Parrot Flying Drone
-
D762 32CH 7" FPV Monitor Built-in 5.8Ghz AV Recevier for Electric RC Plane
-
D763 Black Pearl 7" HD Diversity Screen Monitor Receiver with HDMI for Radio Controlled Model Planes
-
D764 FPV 7" LCD 5.8G 32CH FPV Monitor Receiver for Aircraft Flying
-
D765 Built-in 5.8G 32CH Diversity Receiver 7" LCD FPV Monitor for Electric Radio Controlled Airplane Kit
Product Details
| Type | Other, Parrot Air Drone Toy | Power | Battery | |
| Radio Control Style | RC Hobby | Place of Origin | Guangdong, China | |
| Brand Name | Flysight | Model Number | RC801 |
Product Description
Specifications
7" LCD FPV 5.8GHz Receiver Monitor with Battery for Parrot Air Drone Toy1.HDMI
2.1024*600
3.Zoom
4. 32CH RX
D758 7" LCD FPV 5.8GHz Receiver Monitor with Battery for Parrot Air Drone Toy
Features
*High resolution 1024*600
*No "blue screen" problem when the signal gets weak
*Sunlight readable with ultra brightness&definition screen
*Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
*Dual buffered AV outputs
*Can receive 2 different channels at the same time
*Not affect by 2.4GHz R/C Radios
*Anti-black, anti-blue, anti-flash.
*AV Receiver with Diversity inputs,AV, HDMI
*Support Zoom function
*Small, light weight, durable
*4 Bands and total 32 Channels
*Tripod connector: General 1/4 "thread
*Working Temperature: -10~+65 degree
*Support rotation 180 degree
Specification
Display Screen | Diagonal | 7 inch |
Resolution | 1024X600 | |
Contrast | 700:1 | |
Luminance | 300cd/m2 | |
Wireless Receiving | Sensitivity | -90dBm±1dBm |
Channel | 32Channel ( 4 Band X 8 Channel ) | |
Antenna Port | 2 X SMA,50ohm | |
Diversity receiving | Antenna diversity | |
TV System | NTSC/PAL | |
Video output level | 1.0Vp-p Typ,75ohm | |
Audio output level | 1.0Vp-p Typ,10Kohm | |
AV Port | RX1 AV OUT | Video,Audio output |
RX2 AV OUT | Video,Audio output | |
DIV AV OUT | Diversity receiving, Video,Audio output | |
AV IN | Video,Stereo Audio input | |
HDMI IN(A Type) | Support HDMI 1.3 Digital Input, Support HDMI Audio in | |
Built-in Microphone | 8Ω/1W X 2 | |
Power Supply | DC IN | 7~28V/ 2A |
DC OUT | Output Voltage:DC IN or battery voltage Output Current:1A | |
Battery | 11.1V/1000mAh(3 series LiPo cells) | |
Consumption | 12V input:7.8W | |
Dimensions | Main Body | 183X126X19.5mm(not include sun shadow) |
Battery | 105X87.5X6.7 mm(not include prominent part) | |
Weight | Main body | 350 g |
4 brands 32channels
Product Show
Advantages
1. Original products for our own brand Flysight, quality is warranty.
2. We aim to provide customers high quality products and services.
3. CE certification provided for our products model: TX58025, RC306, RC305 etc.
4. OEM orders are welcome!
Accessories
Charger Optional

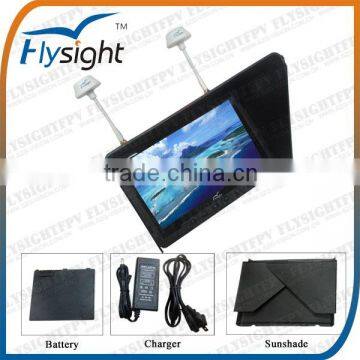

Packing Details
1*Main Body
1*Sun Shadow
2*SMA Antennas
2*AV Cable
1*DC Input Cable
1*DC output Cable
1*Battery
1*Charger
