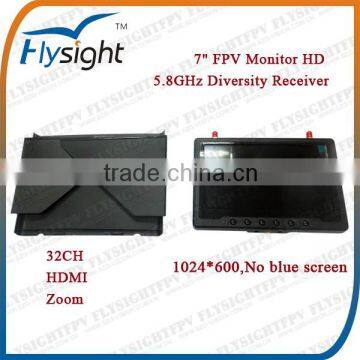

524 Flysight RC801 5.8GHz 7 inch Monitor HDMI with Zoom Function for RC Helicopter Hobbies
- Shenzhen China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
D525 FPV Built-in 5.8G Wireless Diversity Receiver 7" HD Monitor HDMI for RC Helicopter FPV Equipment
-
D526 5.8GHz 7 inch HD LCD Monitor for RC Helicopter RTF
-
D527 5.8GHz 7 inch FPV Monitor Built-in Battery for FPV Electric Helicopter
-
D528 32CH 5.8GHz FPV Monitor 7 inch HDMI for UAV RC Helicopter
-
D529 5.8GHz 7 inch LCD Monitor HDMI Input for RC Airplane Model
-
D530 5.8GHz 7 inch LCD FPV Monitor with HDMI Input for RC Airplane Accessories
Product Details
Type | Helicopter | Power | Battery | |
Radio Control Style | RC Hobby | Place of Origin | Guangdong, China | |
Brand Name | Flysight | Model Number | RC801 7 inch Monitor HDMI |
Product Description
Specifications
7 inch Monitor HDMI with Zoom Function for RC Helicopter Hobbies1.5.8GHz 32CH
2.1024*600
3.No blue screen
4.FPV Kit
524 Flysight RC801 5.8GHz 7 inch Monitor HDMI with Zoom Function for RC Helicopter Hobbies
Features
*High resolution 1024*600
*No "blue screen" problem when the signal gets weak
*Sunlight readable with ultra brightness&definition screen
*Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
*Dual buffered AV outputs
*Can receive 2 different channels at the same time
*Not affect by 2.4GHz R/C Radios
*Anti-black, anti-blue, anti-flash.
*AV Receiver with Diversity inputs,AV, HDMI
*Support Zoom function
*Small, light weight, durable
*4 Bands and total 32 Channels
*Tripod connector: General 1/4 "thread
*Working Temperature: -10~+65 degree
Specification
Display Screen | Diagonal | 7 inch |
Resolution | 1024X600 | |
Contrast | 700:1 | |
Luminance | 300cd/m2 | |
Wireless Receiving | Sensitivity | -90dBm±1dBm |
Channel | 32Channel ( 4 Band X 8 Channel ) | |
Antenna Port | 2 X SMA,50ohm | |
Diversity receiving | Antenna diversity | |
TV System | NTSC/PAL | |
Video output level | 1.0Vp-p Typ,75ohm | |
Audio output level | 1.0Vp-p Typ,10Kohm | |
AV Port | RX1 AV OUT | Video,Audio output |
RX2 AV OUT | Video,Audio output | |
DIV AV OUT | Diversity receiving, Video,Audio output | |
AV IN | Video,Stereo Audio input | |
HDMI IN(A Type) | Support HDMI 1.3 Digital Input, Support HDMI Audio in | |
Built-in Microphone | 8Ω/1W X 2 | |
Power Supply | DC IN | 7~28V/ 2A |
DC OUT | Output Voltage:DC IN or battery voltage Output Current:1A | |
Battery | 11.1V/1000mAh(3 series LiPo cells) | |
Consumption | 12V input:7.8W | |
Dimensions | Main Body | 183X126X19.5mm(not include sun shadow) |
Battery | 105X87.5X6.7 mm(not include prominent part) | |
Weight | Main body | 350 g |
4 brands 32channels
Product Show
Advantages
1. Original products for our own brand Flysight, quality is warranty.
2. We aim to provide customers high quality products and services.
3. CE certification provided for our products model: TX58025, RC306, RC305 etc.
4. OEM orders are welcome!
Packing Details
1*Main Body
1*Sun Shadow
2*SMA Antennas
2*AV Cable
1*DC Input Cable
1*DC output Cable
G.W: 0.86kg
Color Box Size: 21.2*6.5*16.5cm
