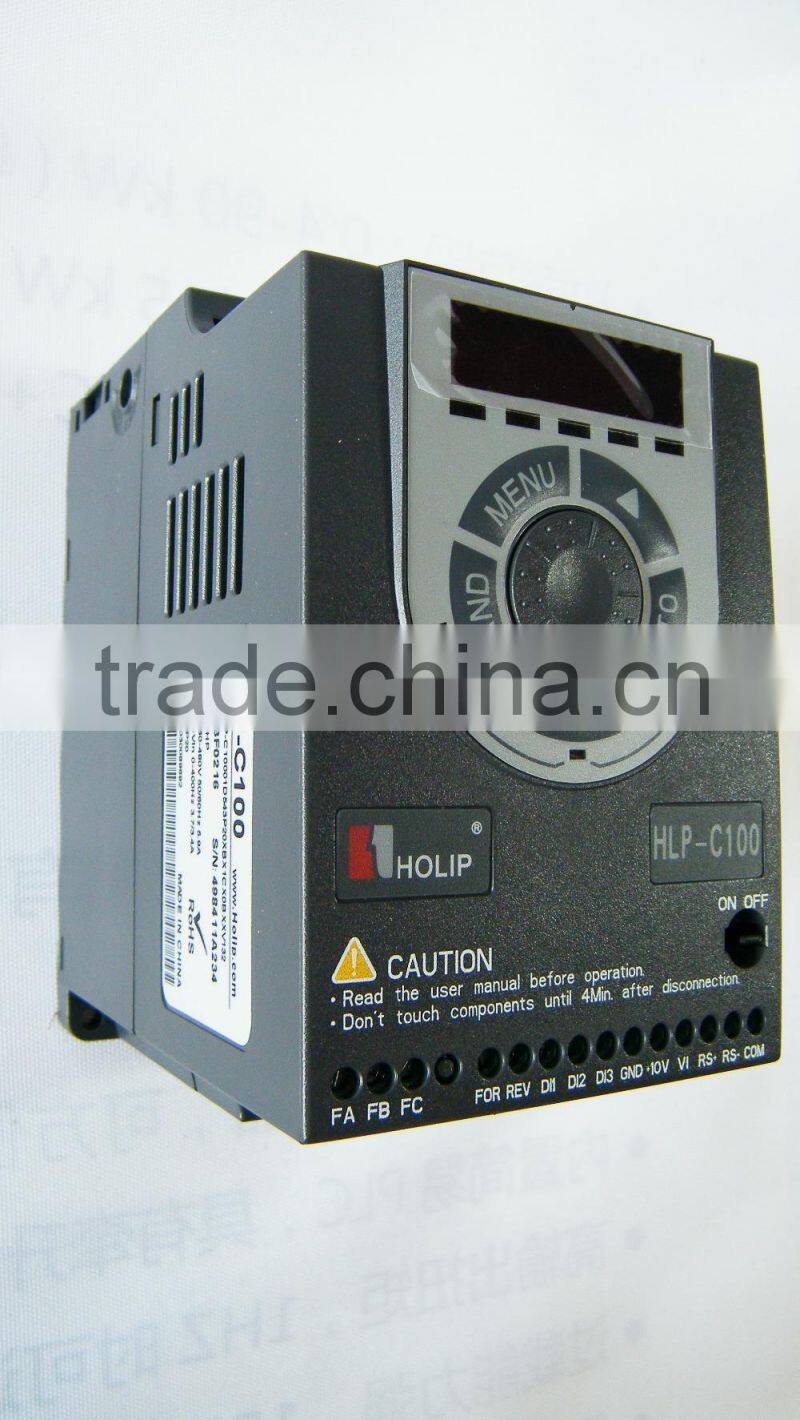

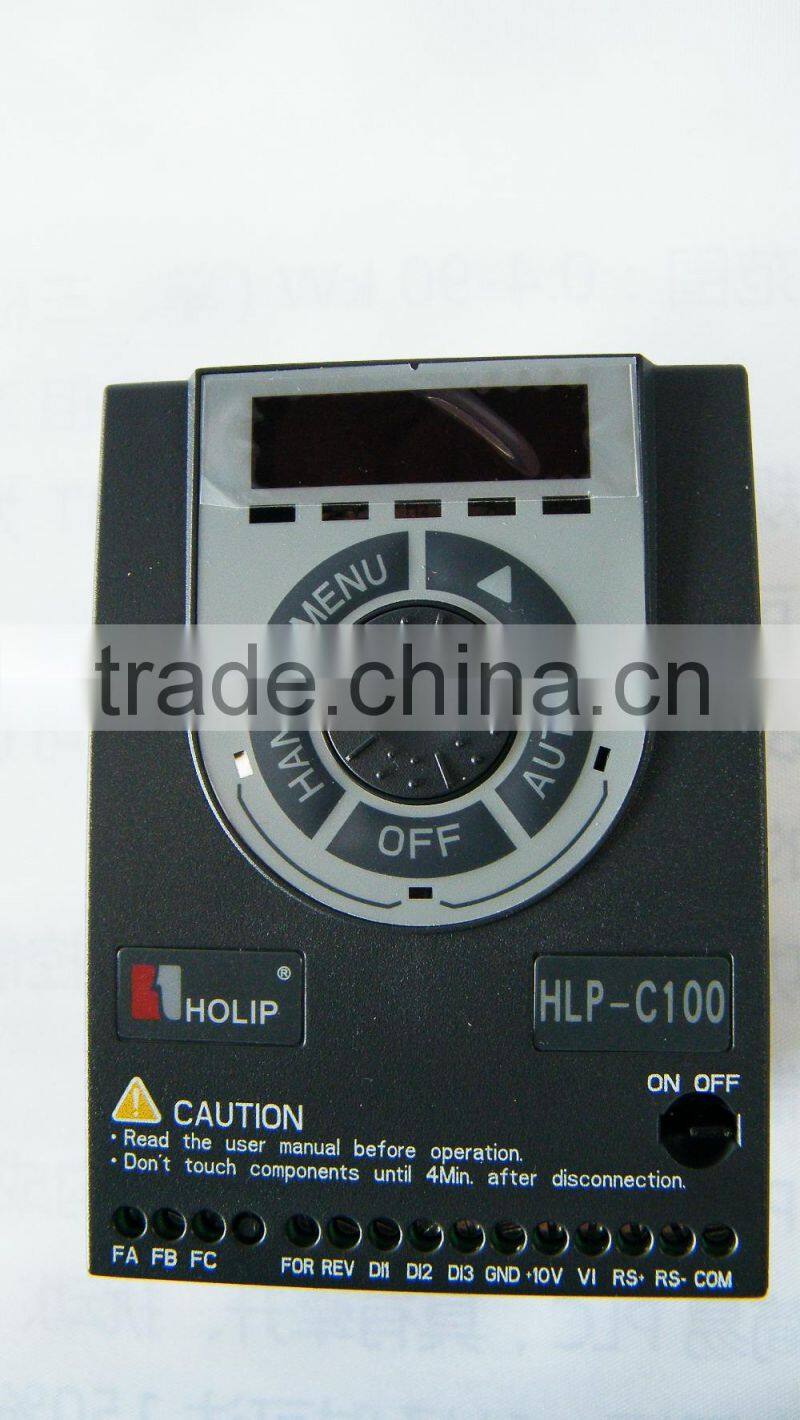

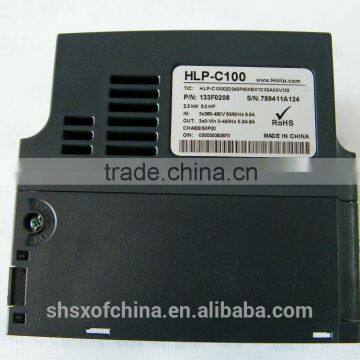

2015 New Type Top Quality Frequency Inverter for Single Phase Motor HLP-C1002D243 Quality Choice

Item

Specification

Power

Supply voltage

Single/three phase 200-240 V±20%;

Three phase 380-480V±20%;

Frequency

48-62Hz;

Max. imbalance

3%;

Motor output

Output voltage

Three phase 0-100% of supply voltage;

Output

frequency

0-400Hz

Main control functions

Control mode

V/F

Start torque

0.5Hz 150%;

Overload capacity

150% rated output current(60s)

PWM switch frequency

2K-16KHz

Control command source

LCP, analog, local bus;

Frequency setting source

LCP, analog, local bus;

Ramp control

Selectable 8-speed steps;

Display

8 segments, 5numeric displays

Display frequency, warning, status and so on;

Indicator

Light FWD,REV,HZ,A, R/MIN display various status of the inverter;

Data read-outs

Frequency setting, output frequency, feedback value, output current, DC link voltage, output voltage, output power, input terminals state, output terminals state, analogue input, 1-10 fault records and accumulated working time etc.;

accessory

Remote mounting kit

Available when the control panel for external use;

Copy card

Copy parameters f rom one inverter to another ;

enclosure

IP20

Ambient temperature

-10℃-40℃

Humidity

5%-85%(95% without condensation)

Vibration test

1.14g

Max. altitude above sea level

1000m, derating use when more than 1000 meters;

Motor cable length

Shield cable; 5meters, unshielded cable;:50meters;

Basic Functions

Automatic Voltage Regulation; V/F Control, DC Brake; Speed Limit; Current Limit; Reset Function; Timer; PI Controller;

Application Functions

Speed Open-loop Control; Process Closed-loop Control; Jogging ; Multi-speed Control via Digital input; Deferent speed with deferent ramp; Mechanical Braking; Catch up /

Slow down; Relative Scaling Reference; Recover user settings by a key etc.

Protection Functions

Missing Motor Phase Protection; Low-voltage Protection; Over-voltage Protection; Over-current Protection; Output Phase Loss Protection; Output Short Circuit Protection;

Output Grounding Fault Protection; Motor Thermal Protection; CPU Fault; EEPROM Faults; Button f reeze; Duplicate Fails; LCP Invalid; LCP Incompatible; Parameter

Read-only; Reference Out of Range; Invalid While Running; Password Error etc.

Control Terminals

Digital input

Number

5 digital inputs.

Scanning time

1ms;

Analog input

Number of input

1 analog inputs(VI), both can receive voltage or current signals.

Input accuracy

Max.error:0.5% of full scale

Resolution

11bit;

Scanning time

1ms;

Digital output

Relay output

1 relay outputs(FA-FB-FC);

Scanning time

1ms;

Power supply

+10V

10VDC power supply;

RS485 serial communication

Terminal number

1, RS+(TX+,RX+), RS-(TX-, RX-);

Ground for RS485

COM

Power range (Maximum: 415KW):

        single phase    220-240V: 0.37-1.5KW;

        three phase     220-240V: 0.37-1.5KW;

        three phase     380-480V: 0.75-2.2KW;

Model

Input voltage

Input current /A

Output current /A

Rated power /KW

Suitable motor /KW

Net weight /KG

HLP-C1000D3721

1×200-240V 50/60Hz

6.1

2.2

0.37

0.37

0.84

HLP-C1000D7521

1×200-240V50/60Hz

11.6

4.2

0.75

0.75

0.84

HLP-C10001D521

1×200-240V50/60Hz

18.7

6.8

1.5

1.5

0.84

HLP-C1000D3723

3×200-240V50/60Hz

3.5

2.2

0.37

0.37

0.84

HLP-C1000D7523

3×200-240V50/60Hz

6.7

4.2

0.75

0.75

0.84

HLP-C10001D523

3×200-240V50/60Hz

10.9

6.8

1.5

1.5

0.84

HLP-C1000D7543

3×380-440V50/60Hz

3.5

2.3

0.75

0.75

0.84

3×440-480V50/60Hz

3.0

2.1

HLP-C10001D543

3×380-440V50/60Hz

5.9

3.7

1.5

1.5

0.84

3×440-480V50/60Hz

5.1

3.4

HLP-C10002D243

3×380-440V50/60Hz

8.5

5.3

2.2

2.2

0.84

3×440-480V50/60Hz

7.3

4.8

Packaging Details:

 ac to ac 4 kva frequency converter 50hz to 60hz with carton box or wooden case

Delivery Detail:

 frequency In 7 days for samples; 20 days after payment for order
