A Batten Roll Forming Machine With Flying Cut

Condition	New		Type	Tile Forming Machine
Tile Type	Colored Glaze Steel		Use	Roof
Place of Origin	Vietnam		Brand Name	VIMECO
Model Number	TT-A001		After-sales Service Provided	Engineers available to service machinery overseas

Specifications

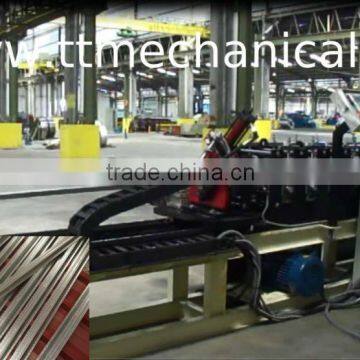

Fully automatic A batten roll forming machine with flying cut

1-Technical specifications :

- Electric requirement        : 380V/3ph/50Hz

- Hydraulic motor power    : 5.5 KW

- Weight of machine          : 6 tones

- Dimension                       : L= 7.0 m; W= 1.2 m; H= 1.6 m

- Roll forming speed          : 15m/min

- Max .thickness of material : 0.5 - 1.0mm

- Material Yield Strength    : 550 Mpa

- Tolerance of length          : +/- 1.5mm

- PLC& Touch panel          : SIEMENS (Germany)

- O.D of shaft                     : 70mm, the material is S45C

- Encoder  360 ppr             : KUBLER(Germany)

- Hydraulic system             : YUKEN(Japan)

- Electric motor                  : SIEMENS (Germany)/Mitsubishi( Japan)



2-Features :

- Inter-convert automatically levels of speed when stop and start.

- Control system of machine : Stop to flat cut with digital length, position and bath ,multi orders by PLC and  Siemens Touch panel (999 programs).

- Signal feedback from encoder showing current length of product and holes position compare with range

- Before finishing each order has alert to pre-cut

- The rollers made of S45C base material solid form CNC precision machined , through hardened with hard  chrome finish get  hardness 50HRC.

- Pre-cut, Flying profile cut powered by stationary hydraulic : The cutting dies  made of SKD 11 base material solid form CNC wire cutting machined , through hardened get hardness 60HRC.

- Emergency stopping system  to safe user.

-The machine is equipped with air cooling system allows the machine working continuously from 12 to 16 hours per day.

- A synchronous un coiler speed with roll forming speed
