2.4GHz mt 7620n 300m Ceiling Access Point up to 30 Users(WD-7204)

WD-R7204 is a best-in-class 802.11n indoor access point designed specifically for business-class environments

such as hotels, airports, coffee shops, shopping centers, sporting venues, and university campus.

With transfer rates of up to 300Mbps in the 2.4 GHz frequency range, the device provides an adequate level

of service to all users who connect with legacy 802.11b/g adapters in addition to the latest 802.11n adapters

for faster downloads and instant communication.

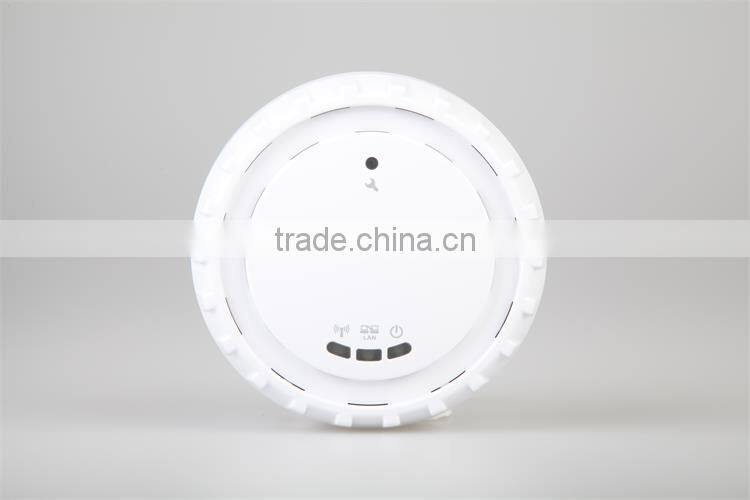

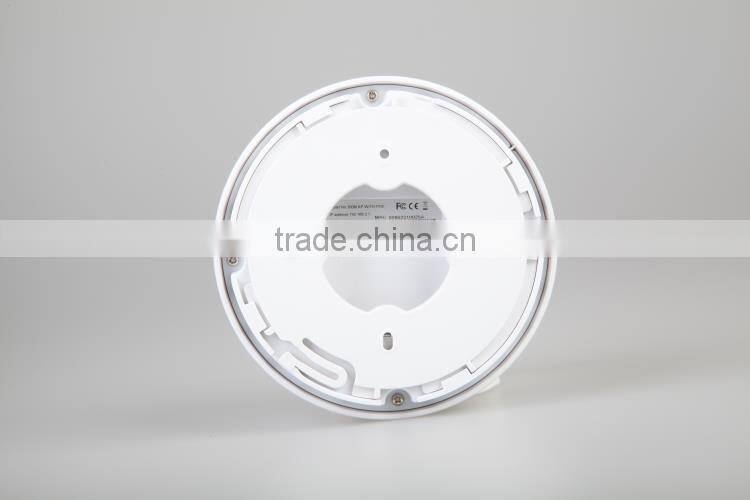

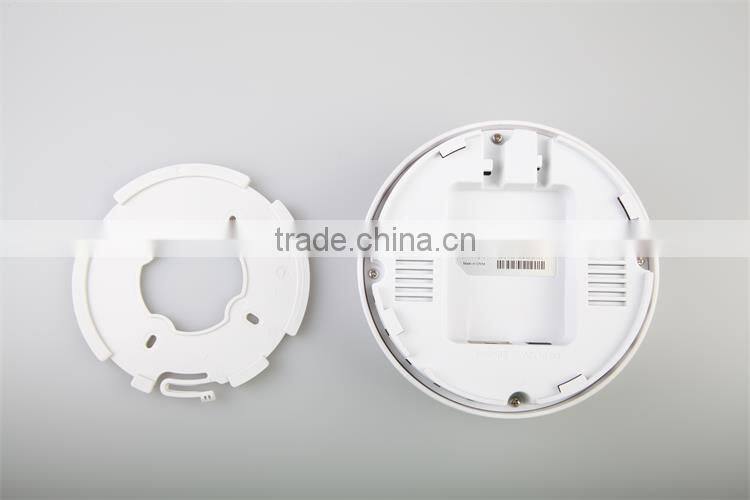

Housed in a stylish ceiling mountable case, the WD-R7204 can be installed on a wall or ceiling just as a ceiling

lamp and blends in nicely with most interior decorations in a modern hotel. Installed highly on ceiling, it extends

optimum wireless signal to multiple neighboring rooms.

Internally equipped with 2X 2 multiple-input, multiple-output (MIMO) antennas improve range and

maximize data rates. Field tested to wirelessly cover 8-10 hotel rooms at an indoor operating distance of

40-50 meters and allow simultaneous accesses by up to 30 users. Up to 300Mbps wireless rate ensures

multiple users an adequate level of service.

The device has integrated Power over Ethernet (PoE) for easy installation and lower cost. So it can be

installed in areas where power outlets are not readily available, eliminating the mess of altering existing

network infrastructure.

• Comply with IEEE 802.3af Powered Device (PD) standard
• Comply with IEEE 802.11b/g/n standards
• Supports high data rate up to 300Mbps while connecting with IEEE 802.11n devices
• High transmit power with good receive sensitivity extends wireless coverage dramatically
• Provides MAC access control
• Provides hidden SSID function
• Supports Web-based configuration
• Firmware upgradeable via Web browser

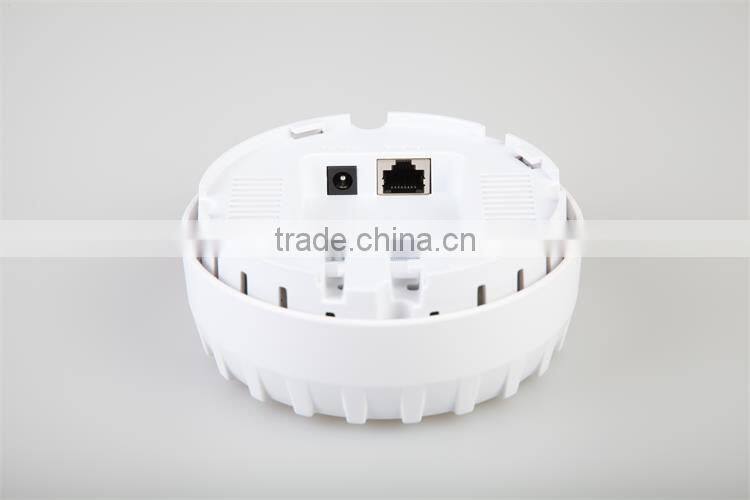

• Provides one 10/100M Ethernet interface, and support Auto MDI / MDIX
• Support automatically adjust the wireless transfer rate
• Support 64/128 bit WEP Encryption,WPA,WPA2,WPA-Mixed,802.1X authentication encryption and security mechanism, can guarantee the security of the data in the wireless network transmission
• Supporting SSID broadcast control, effectively prevent the SSID broadcast leak
• Support WMM,let your voice and video more smooth
• Support software to control the the AP working status LED is turned on and off, more humane

We are LG, D-Link, Telecom of Russia, Telecom of India, Skyworth, China Netcom and China Telecom’s OEM supplier. Have over 10 years of experience on research about WIFI cards, wireless adapter, wifi router with OPEN/DD -WRT, 3G router with print server outdoor router, CPE and Ethernet Giga Switch POE switch.

Contact person: Lucian |Tel: 86 185 8904 1112 |skype: live:wifi2  |QQ:1771612431
