12W/m Electric Under Floor Heating Cable for Tile and Stone Floor
- Shanghai Ningbo
 - T/T Credit Card PayPal

You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | HUARRUI electric underfloor heating cable | |
| Model Number | T-cable | Type | Floor Heating Parts | |
| Floor Heating Part Type | Floor Heating Cables |
Product Description

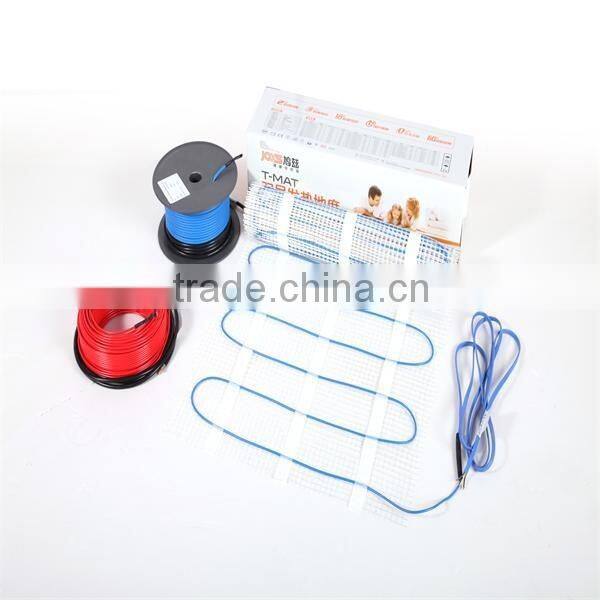

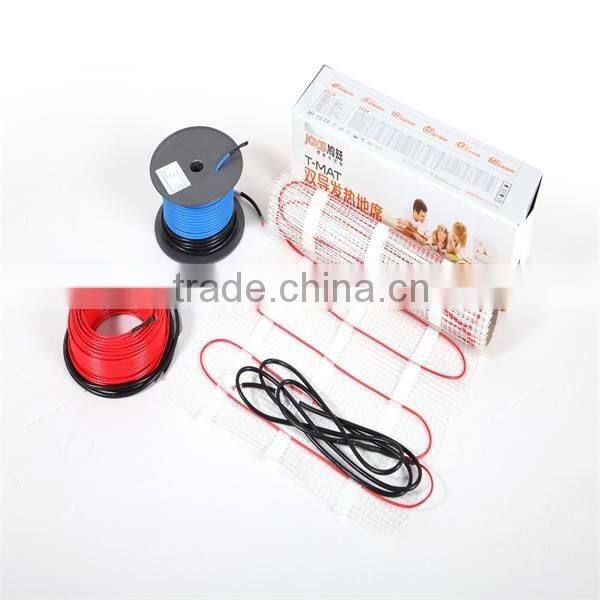

12W/m electric under floor heating cable for tile and stone floor
is designed to be as thin as possible, only 3.6mm, have two kinds of output power. ensure the economic and energy saving and decrease the floor level to the maximum extend.
On existing floors - Low overall height.
technical data:
| Cable construction | Twin conductor(Double wires heating) |
| Conductor | Solid heating wire |
| Insulation | Fluoropolymer |
| Shield | Al foil and Copper wire |
| Protective jacket | PVC |
| Connector | Outer splice |
| Cable diameter | 3.6mm |
| Rated voltage | 230VAC |
| Power output | 12W/m, 18W/m |
| Resitance tolerance | -5%~+10% |
| Cold lead | 2.5m length |
12W/m 18W/m electric under floor heating cable for tile and stone flooring can be used for different flooring, such as tile,stone,marble etc.
Output power have 12W/m,18W/m.can set the one square meters power as the actual need.
Renovated and Ultra thin cable
Min Installation Temp: 5℃
Max Ambient Temp: 30℃
Heating Cable Length: 12.5-150.0m(12W/m) & 7.5-154.2m(18W/m)

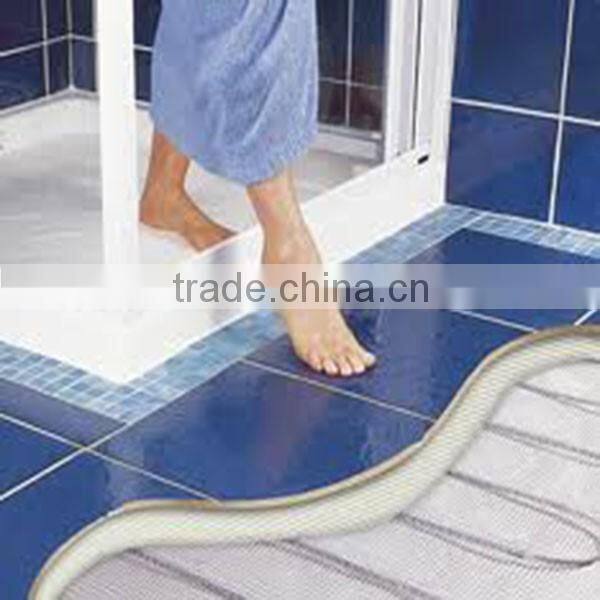

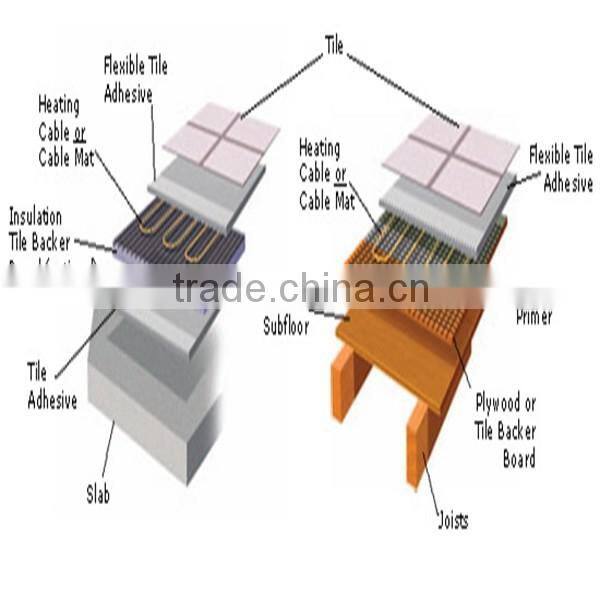

electric under floor heating cable systems are the ideal solution for those complicated floor areas where a mat is not suitable,our systems are all rated at 12w and 18w per linear meter. This means the closer you space the cable the higher the output.these cables are suitable for use directly beneath tiled floors. They can also be used under some carpet/vinyl and wooden floors providing a suitable layer of levelling compound is applied to the cables first.
Electric under floor heating cable features:
Twin conductor cable
Flexible installation
Emit zero EMF (electromagnetic fields)
Durable construction
Single point safety connection
100% waterproof
25-Years limited warranty
12W/m 18W/m electric under floor heating cable for tile and stone flooring chooge the top quality raw material to process and produce.environmental protection and saving energy. for example the high quality fluoropolymer insulation,high-intensive outer jacket, export the cable heating conductor terminals.about the heating cable and cold lead coupling/conection, we can provide two kind of manufacturing processes. one is use heat shrinkable tube, the other one is machine injection mold. please check the details photo below:
Flat cold lear three wires(Blue,brown,yellow+green), Connection manufacturing process:machine injection mold.
Flat cold lead two wires+tinned copper braid as earth wire, Connection manufacturing process:Heat shrinkable tube.
Round cold lead three wires (Blue,brown,yellow+green), Connection manufacturing process:Heat shrinkable tube.

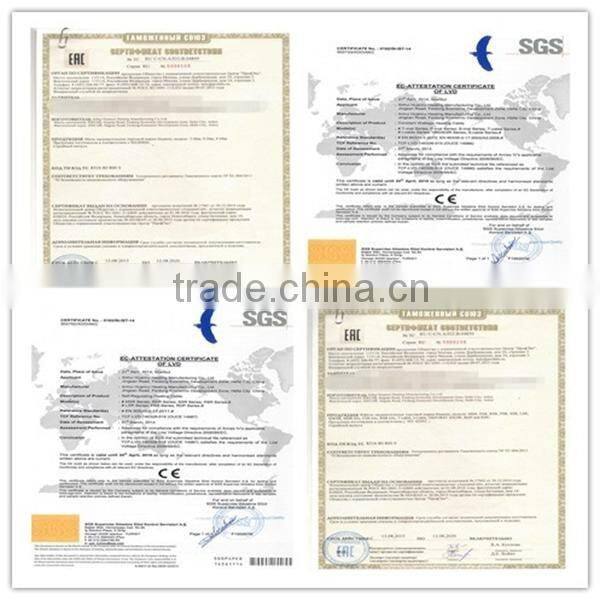

12W/m 18W/m electric under floor heating cable for tile and stone flooring CE GOST EAC CSA approved, ISO9001verified facotry :

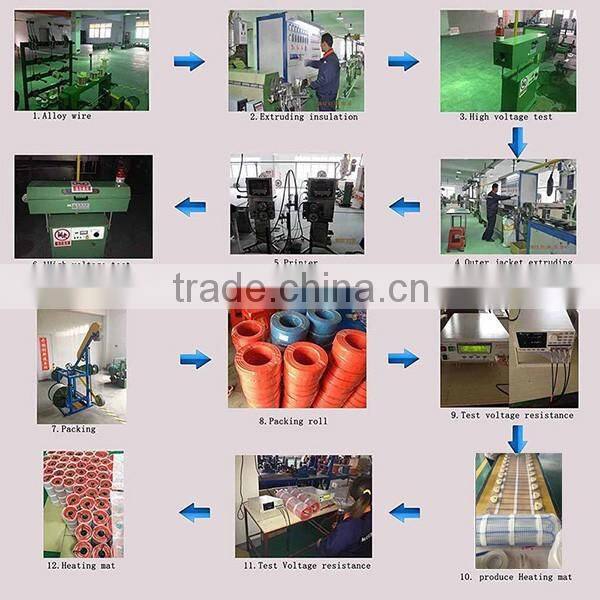

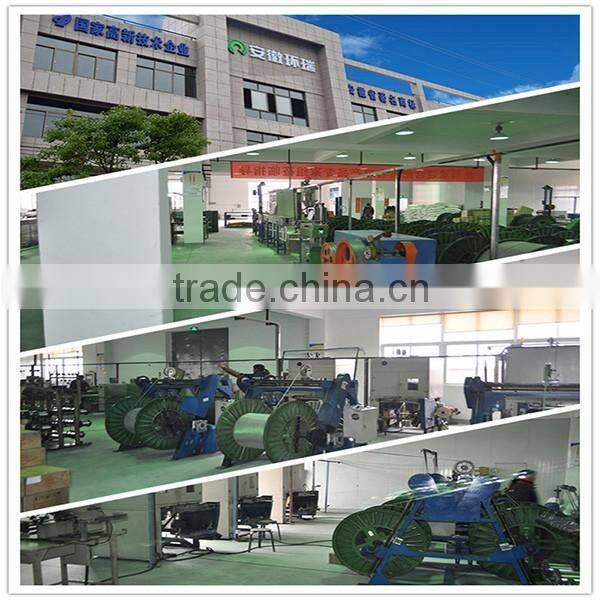

12W/m 18W/m electric under floor heating cable for tile and stone flooring production flow: all procedures will be tested by Q/A department.No any defective products.

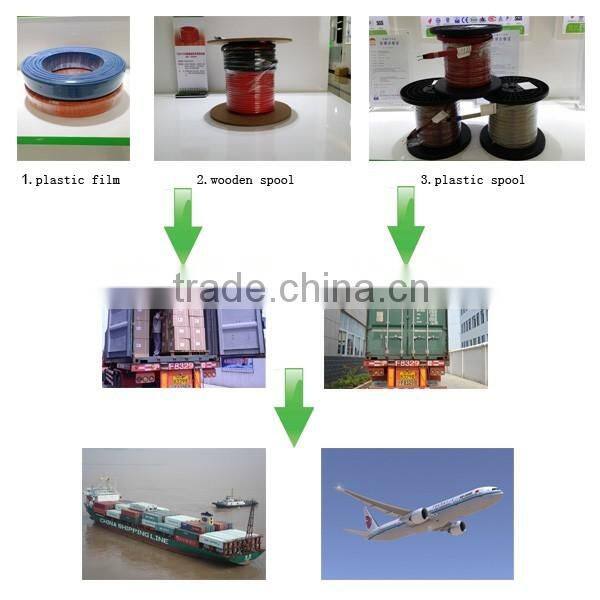

12W/m 18W/m electric under floor heating cable for tile and stone flooring packing:usually packed with wooden spool & plastic spool or packing film. then packed in white neural box, then packed into carton box. if big order with large quantity. will provide the customized service. such as the cable marking.individual color box or other order requestments.
Electric under floor heating cable shipping: customer can choose the carton box packing by pallet or without pallet.the delivey type can be by sea,by air, by train,by truck.by international express.

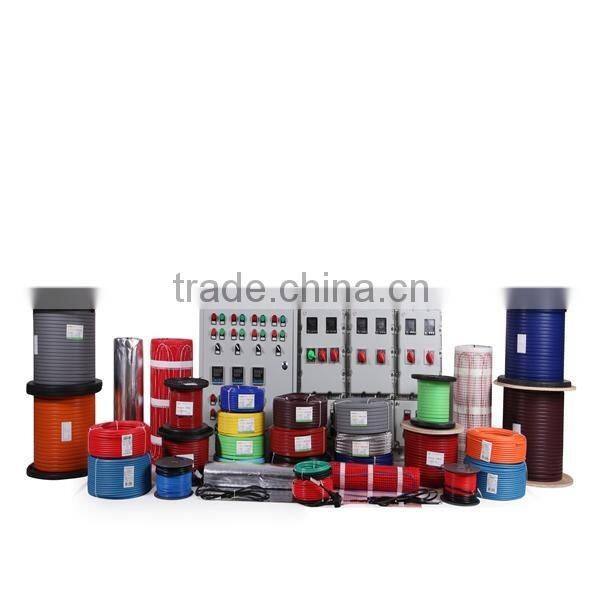

Anhui Huanrui Heating Manufacturing Co.,Ltd is a china famous manufacturer & National hightech enterprises,which can research and development, production, sales and service the self regulating heating cable,Constant wattage heating cable,electric underfloor heating products,pipe heating cable.pipe freeze protection cable.pre-assembled heating cable kits,roof & gutter de-icing cable,snow melting cable & mat,concrete curing & drying cable,mineral insulated heating cable,accessories & thermostat etc. Company located in National science and technology innovative pilot city Hefei,found in 2004,the registered fund is 20.8 million RMB,have 100 pany own the first period building area 8476 square meters,have ten automatic production lines,the annual output is 20 million meters of self regulating heating cables. In 2015,Anhui Huanrui Heating manufacturing Co.,Ltd will invest 120 million RMB to the second factory project, covers an area 16500 square meters. Then Anhui Huanrui Heating Manufacturing Co.,Ltd will be the largest self regulating heating cable manufacturer provide the research and development, production, sales and service.
Warranty:
25 years. the defects against factory's material,design,workmanship
OEM service:
Large order or long term cooperate relationship provide the customized service:
heating cable cold lead length: 2.5m, 3m ,4m, etc.
heating cable color: white,black,green,blue, orange, red, purple, rose, etc
heating cable volt: 110V,120V,220V,230V,240V
Heating cable marking: Available
RFQ:
Sample available.just tell me the specifications.
Payment terms negotiable.
After-sale services available.
free design and installation guide.
Delivery time: normall within 7-15 days, large order should be negotiated.
