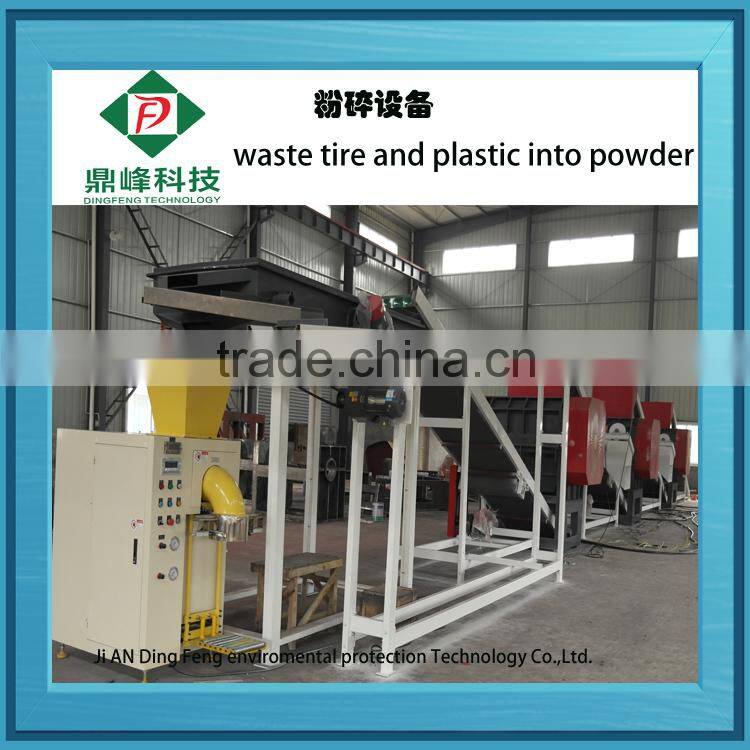

Dingfeng Ambient Temperature Tyre Recycling Machinery for Rubber Powder



      This project uses the Room temperature physical methods of waste tires crushing, grinding, fine rubber powder preparation, steel, fiber. The waste tire form the "black pollution" fully control, with great economic and social benefits, making 100% recycled scrap tires.

     Whole production process closed, no waste emissions, no secondary pollution, to achieve high efficiency, energy saving, environmentally friendly . Automatic PLC process control operation, 20-120 mesh of arbitrary regulation.

 1.     Rolling circle machine:pull out the steel wire before cutting tire

2.     Tire crusher:cut the diameter<1200mm tire into 50*100mm rubber

3.     Rubber shredder:shred <100mm rubber into <15mm rubber particles

4.     Magnetic separator:remove the broken steel in the rubber particles

5.     Particles pulverizer:shred <25mm particles into <5mm rubber particles

6.     Particles grinder: grind 5-20mesh pure rubber particles into 40-120 mesh powder.

7.     Line vibrating screen: move impurity, powder, testing and end washing

8. Fiber separator: separate powder into light and heavy parts

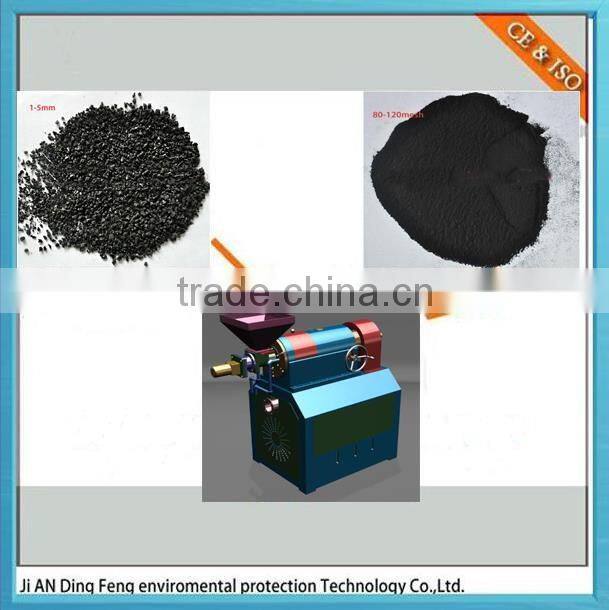

1. The machine is used for mixing the natural rubber, used to make good quality of reclaimed rubber from used tire and mixing after desulfurization.

2. This machine is suitable for reclaimed  rubber plant,conveyor factory,rubber products fatory,shoe factory,cable plant,seals and other related industries.

 3.The complete equipment is at room temperature without any pollution, is using physical methods to break down waste tires into steel wire and rubber particles or powder, it can re-use of waste tires into renewable resources, “black gold”.

1 one year warranty and life-long technique supporting.

2. Engineers are available to help  install and debug

3. Our company can provide the safe operation training, the maintain and repairing of

equipment training freely.

4. For the damage caused by the user, our factory provides the parts and repairing  with best price.

1.Q:Are you a factory or trading company?

A:We are a factory.

2.Q:Where is your factory located?

A:Our factory is located in Ji An City, Jiangxi Province, China. All our clients, from home or

    abroad, are warmly welcomed to visit us!

  3.Q:How does your factory do regarding quality control?

A:"Quality is priority. quality,integrity first, controlling from

   the very beginning to the very end.

      The quality control in our factory is very strict, all defective semi-manufactures must be treated again or reject.  all the machine must be checked out , then deivered to our customer.
