1WAN + 2LAN WLAN AR9331 ATHEROS WIFI Module

        Openwrt Embedded Wifi Module WLM113H with Atheros Ar9331

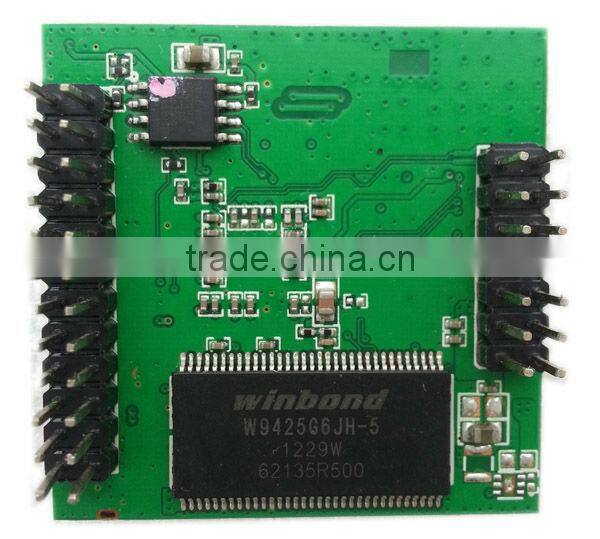

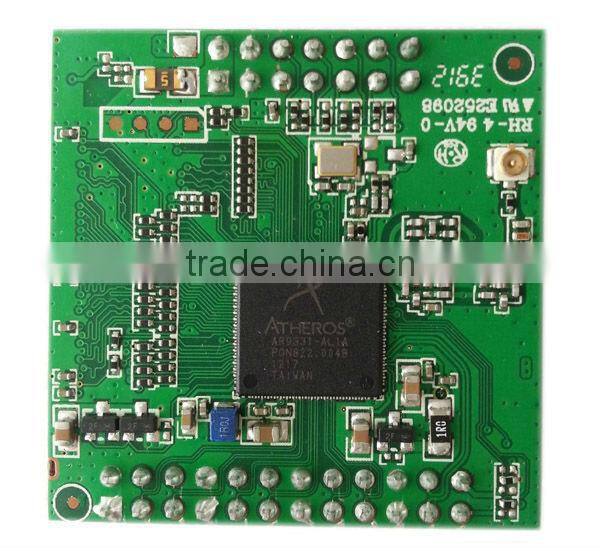

Product Pictures

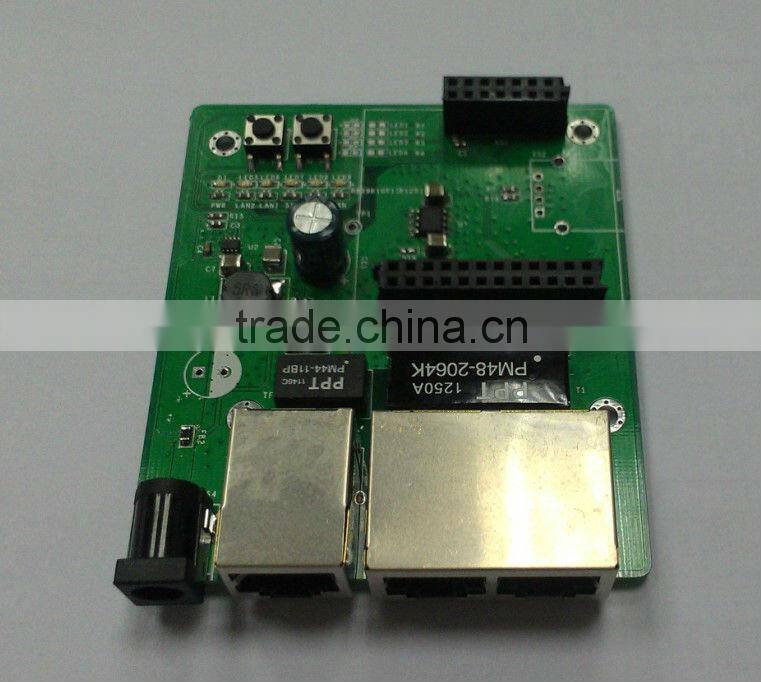

Development board

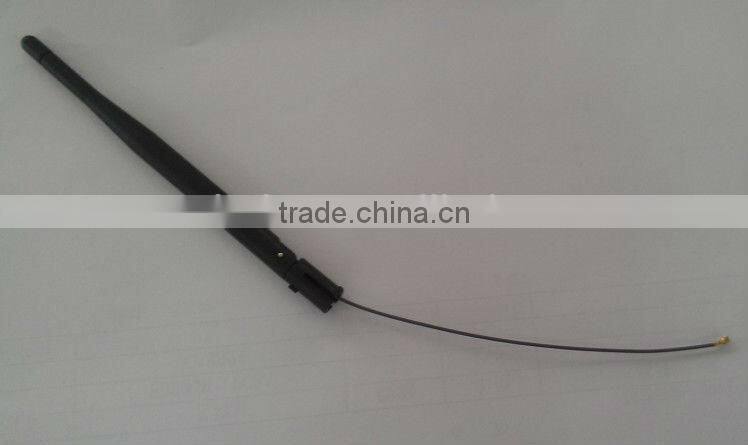

WiFi accessory: antenna

Technical parameters

Main Function

1)      Support for UART data serial, four baud rate options: 19200 / 38400 / 57600 / 115200bps.

2)      Wireless data rates support the 802.11b/g/n Standard, the maximum rate is 150Mbps.

3)      Integrate the functions of 802.11 MAC protocol Software.

4)      Support for the STA appliances in the Infrastructure Network.

5)      Support for the OPEN/WEP/WPA/WPA2 mode authentication.

6)      Support for the wep64/wep128/ccmp/tkip data encryption transmission in the shared key mode

7)      Support for the automatic networking mode and manual networking mode.

8)      In the automatic networking mode. The module can automatically scan the target network, and automatically connect when disconnection.

9)      In the manual networking mode, operation of connect and disconnect is touched off by order, this supports a flexible control space.

10)   Support the network data transmission in RAW/UDP/TCP format.

11)   Support seven groups of the basic parameters set, and can connect to seven target networks the most.

12)   Support to configure the parameters through user serial.

13)   Support to upgrade the firmware on line by the internet.

For more information, please add my Skype: mickeycc3

Relative Equipments Applying During R&D

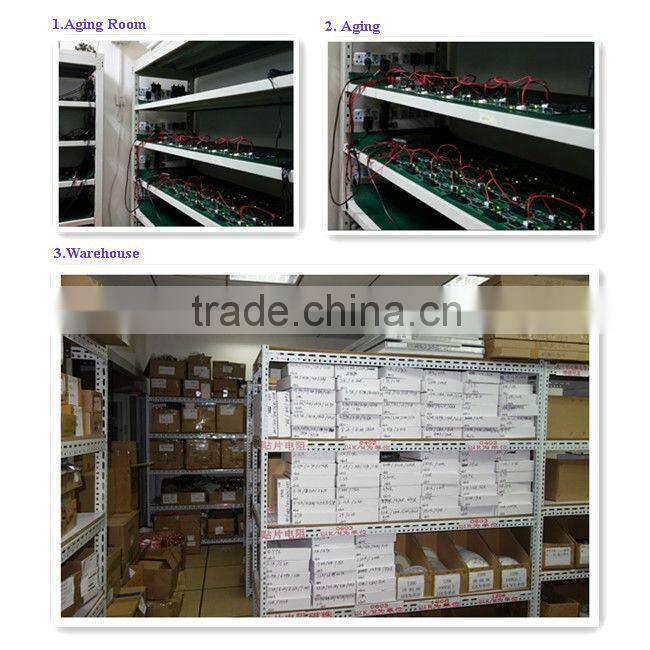

Warehouse & Aging Room

Workshop

All of our products are R&D by V-solution team, we are the professioner in telecommunication area.
