4 Router+ 2 POTS+Wireless CPE

 VS Let more partners adopt V-S' solutions

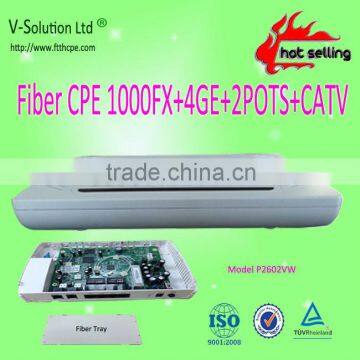

Item P2601VW   1000FX+4GE+2POTS+2T2R WiFi  Triple Play P2P

CPE  Pictures and Description Details Below:

For more Info, pls add my skype:  Vickie-VSolution

1. Data Functions
     Easy to access to Internet or internal network. P2600 series provide a 1000M uplink. You can flexible connect to an Ethernet P2P optical network.
     4 downlink 1000M Ethernet interface: The device integrates 4 L2 switch ports. Full speed non-blocking switching.
     High performance forwarding ability: It integrates powerful network processor. There are 3 accelerators in the processor. It achieves nearly L2 wire speed forwarding capability, powerful throughput and load capacity.
     Integrated simple firewall, support domain filter and IP address filter.
     Support virtual server and DMZ host.
     Rich network protocol: TCP/IP, UDP, RTP/RTCP, ARP, FTP/TFTP, HTTP, Telnet, ICMP, NTP/SNTP, DHCP Server/Client etc.
     2K MAC address table.
     64 full range VLAN ID.
     Powerful L2 switch function: VLAN bridging, port rate limiting, flow control, 4 IEEE802.1p QoS priorities, multicast(IGMP Snooping V1/V2), etc.
     Support ToS(Type Of Service) and QoS.
    Support TXT, Web and CLI, DHCP option 66/67 for auto configuration and firmware upgrade, configure easily.

2. VoIP Functions
     Call protocol: SIP(IMS compatible), compliant with RFC2543 and RFC3261, seamless compatible with all popular call agent, including HUAWEI, ZTE, Alcatel-Lucent, etc.
     Integrate heartbeat function and support active/standby call agent.
     Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.
     Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length.
     Support high/low speed fax, bypass fax, and T38 fax.
     Support high speed MODEM(56Kbps) dial access.
    Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, CID, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service.
     Multi-party conferencing.
     IP address assignment: dynamic PPPoE/DHCP Client and static IP.
     Support TR069, WEB, IVR and CLI, configure easily.
     Upgrade firmware remotely or on line.
     Call loss less than 0.01%.

3. CATV Functions
     RF frequency: 45~875MHz.
     Turn on/off RF output remotely.
    RF level can be showed on Web real time. Introduction

4. Application Chart

Factory introduction:

V-SOLUTION Electronic Technology Co., Ltd. is manufacturer in China Guangzhou. we are 6  years professional of devoting  products GEPON ONU, GEPON OLT. GPON ONU, VoIP Gateway, P2P CPE, Wifi Module

Why Choose Us?

1.7 Years Telecom Manufacture in China
2.Best service
3.High quality products with the lowest price, Cheap, Cheaper, Cheapest
4.Delivery time Short, Shorter, Shortest--7-15 Days
5.You could design your own products, Special Function, Special Box, Special Logo
Our services:
1. MOQ: No MOQ for your sample order and from your second, the MOQ is only 10pcs.
2. Payment terms: T/T, Western Union, L/C and Paypal.
3. OEM FREE: Print your brand, put your model numbers in the stickers and make your box.
4. Warranty: Two years for CCTV Cameras.
5. ODM accepted and welcomed.

Our Advantage:

1. Provided fully OLT and ONU, and pre-configure VLAN for using.

2.40 engineers for SW/HW support and after-sale service.

3.Seamless compatible with Huawei/ZTE/FIberhome/BDCOM OLT.

4. Foremost service for Mid-small carrier Operaters.
