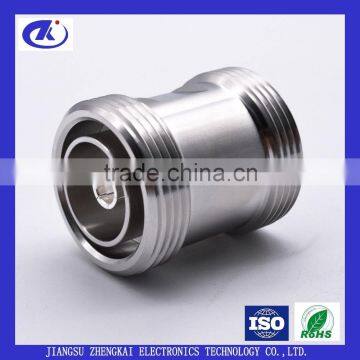

7/16 DIN FEMALE JACK TO 7/16 DIN FEMALE JACK RF CONNECTOR ADAPTOR
USD $2.98 - $3.12
/ Piece
1 Piece(Min.Order)
- 2000 Piece / Pieces per Month
- SHANGHAI NINGBO QINGDAO GUANGDONG SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | ZK DIN 7/16 FEMALE ADAPTOR | |
| Model Number | DIN 7/16 FEMALE ADAPTOR 7/16-KK-3 | Type | Adapter | |
| Application | Microwave | Gender | Female |
Product Description
Product Description
Interface
| According to | IEC60169-4 |
Electrical
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | DC-3GHz |
| 3 | VSWR | 1.08 |
| 4 | PIM3 | ≤-155dBc |
| 5 | Dielectric Resistance | ≥10000MΩ |
| 6 | Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ |
Mechanical
| 1 | Durability | Mating cycles ≥500 |
Material and plating
| Description | Material | Plating |
| 1 | Body | Brass | Tri-alloy |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Phosphor bronze | Ag |
| 4 | Other | Brass | Tri-alloy |
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
| 2 | Rosh-compliance | Full ROHS compliance |
1.CNC machines ,advanced test equipment
2.All products are suit for ROHS.
3.ISO14001 certificate,ISO9001 certificate
Metal Workshop
Assembly Workshop
Assembly workshop and professional team;
Test Area
Quality: We use the best quality components to ensure the standard of our
product range is of the highest caliber
All products we sold out are strictly selected and tested by our QC department
Packing Area
