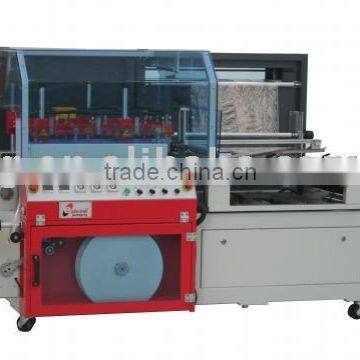

Vertical L-Bar Shrink Wrappers

Condition	New		Packaging Material	Plastic
Automatic Grade	Automatic		Driven Type	Pneumatic
Power	2.5 KW		Place of Origin	Guangdong, China
Brand Name	E-Shrink Packaging Machine		Model Number	LB-802

Specifications

Self developed brand new L-type vertical sealing machine.
Excellent sealing.
Customer-made versions are available.

Features:





*Self developed brand new L-type sealing machine which is specially designed for larger products. It allows the products to wrap without using excess shrink films and can save 10-20% shrink film cost. An excellent shrink result when equipping with our T-62 shrink tunnel. An excellent choice for industrial end-user.

*The sealing blade is using imported materials to provide reliable heat transmission system. Excellent in durability, workability and easy maintenance.

*Excellent sealing because of the vertical operation of the sealing system. This vertical operation can sovle the film folding problem during sealing action.

*The height of sealing line can be easily adjusted according to the product size. It can be overcome the sealing line with wrinkle effect found from other L-type sealing machines.

*Excellent in sealing effect. 35 packs per minute can be achieved under high speed operation with stability.

*Customer-made versions are also available



Uses:

Beverages, tin can, bottled, soya sauce, daily-use products, cosmetic, candy, electronically appliances, stationery, gift boxes, greeting card, photo album, etc. They create extremely elegant packaging quality.



Model	LB802
Machine specification L x W X H (mm)	2000 X 1450 X 1315
Sealing blades length L X W (mm)	640 X 520
Packaging goods dimension range(mm)	Product Width + Height must not larger than 660mm	Customer-made versions available
Length	60-560
Width	60-430
Height	10-180
Packaging Capacity (PPM) (depends on goods size and dimension)	10-40
Electrical source	AC, 1ph, 220v, 14A
Power consumption (kW)	3
Air requirement (kg/cm2)	6.0 (325L/min)
Film to be used	POF,PVC, PE
