Automatic Vertical L Bar Sealing Machine

FOB Price

USD $10,000 - $25,000 / Set

1 Set(Min.Order)

Supply Ability 99 Set / Sets per Month
Port shenzhen
Payment TermsT/T L/C Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, Tissue for l bar sealing machine
Packaging Type	Film, Other, Film, pvc pof for l bar sealing machine	Packaging Material	Plastic, Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220v	Power	3kw
Place of Origin	Guangdong, China	Model Number	LB801
Dimension(LWH)	1485x1320x1230mm	Weight	300KG
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Automatic Vertical L Bar Sealing machine
1.Photoelectric Sensor;
2.Automatic Film advance system;
3.Film scrap Auto receiver;

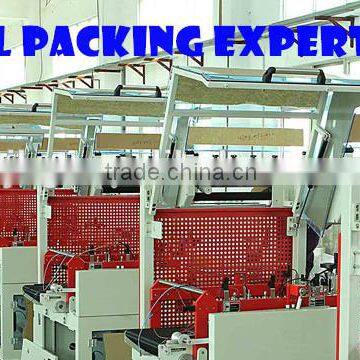

We intend to help you packing everything

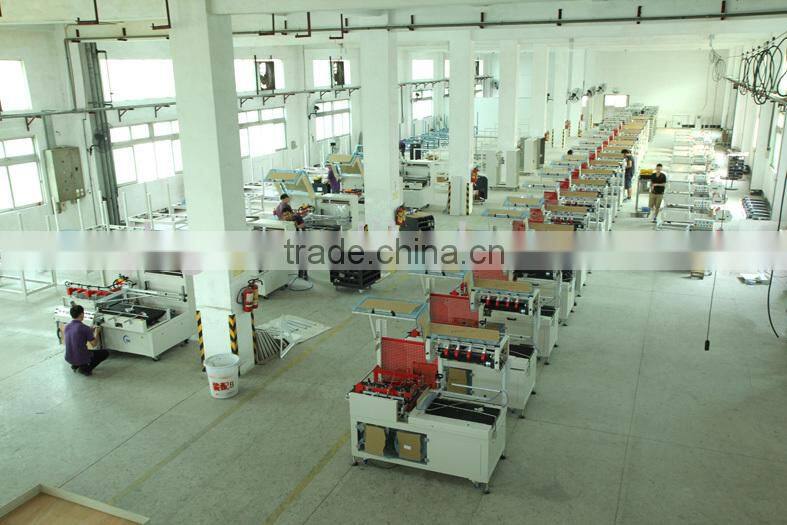

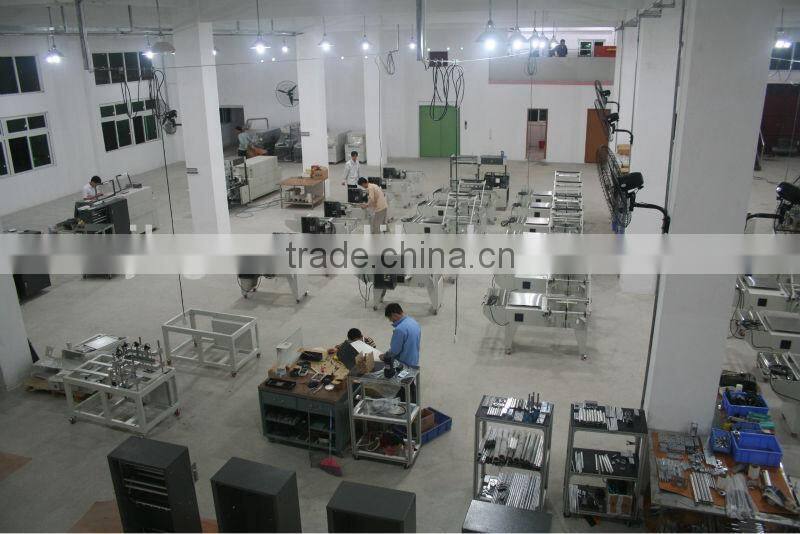

VIEW OF WORKSHOP

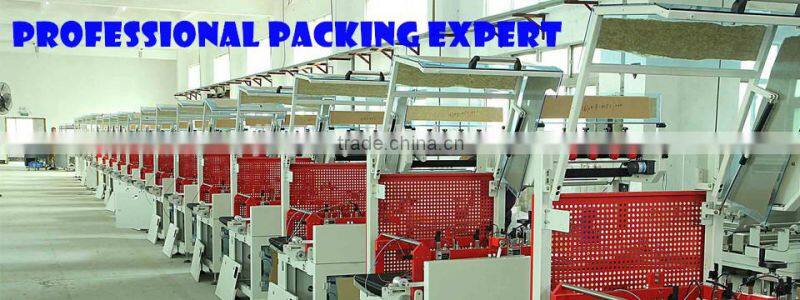

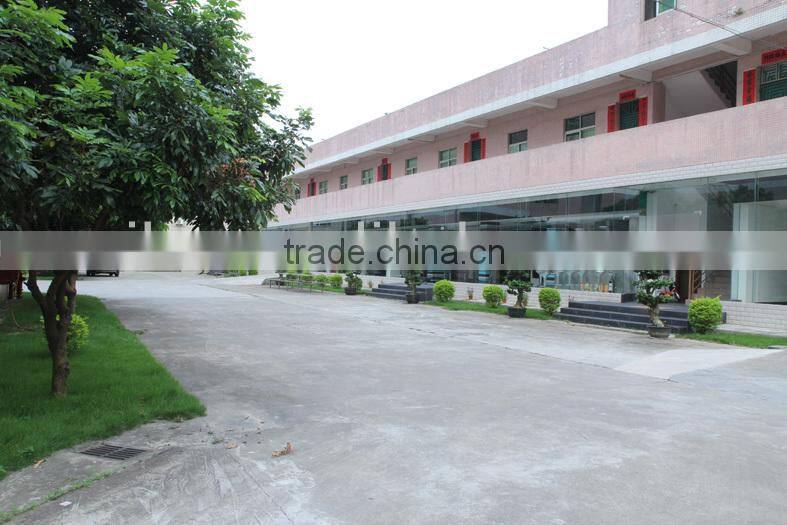

VIEW OF FACTORY

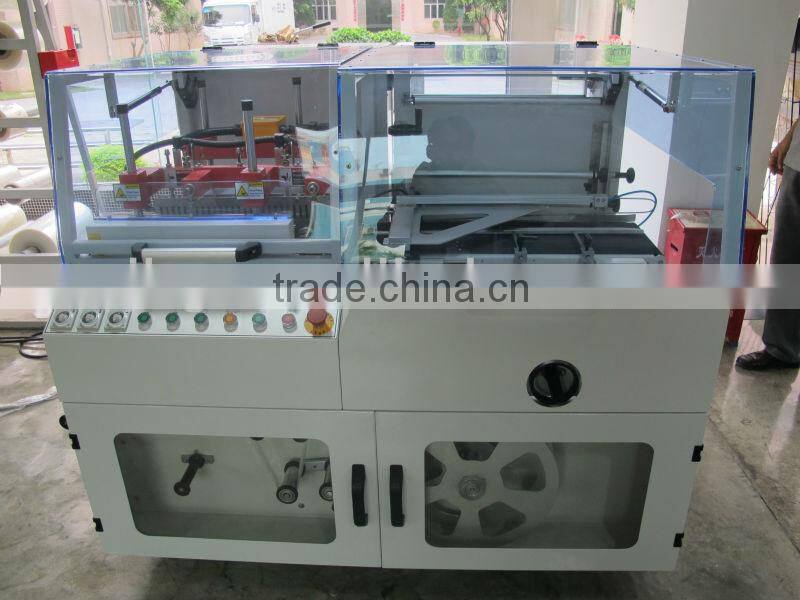

AUTOMATIC VERTICAL L BAR SEALING MACHINE LB801

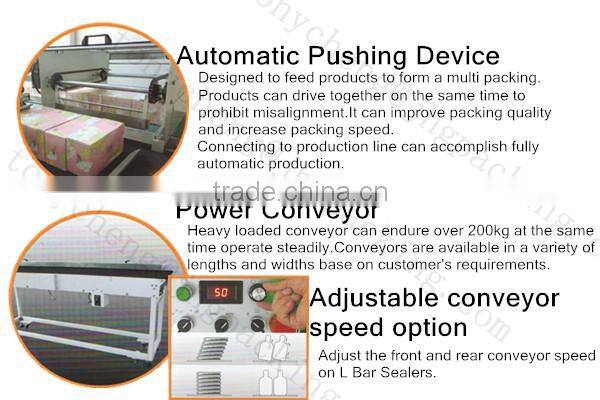

FEATURES:

1.The procedure of plastic film packing from feeding, sealing, to shrinking is operated

automatically;
2.The auto vertical L-sealer is available for various kinds of films such as PP,PE and POF film;

3.Two sets of photoelectric sensor system for precise package length;

4.Labor cost saving. All you need to do is to load the product onto the in-feed conveyor;
5.Easy adjustment, maintenance and operation,Touch Panel control.

7.Automatic film scrap receiver;

8.4 pillars drive sealing frame.Sealing frame is adjustable, sealing seam can adjust by product height.

9.Equipped with durable and easy adjust perforation system;

Uses:

Food, gift boxes, electronics, stationery, toys, metalwares, tools, cosmetic, drug, clothing, daily-use products, electrical appliances, bambooware, etc.

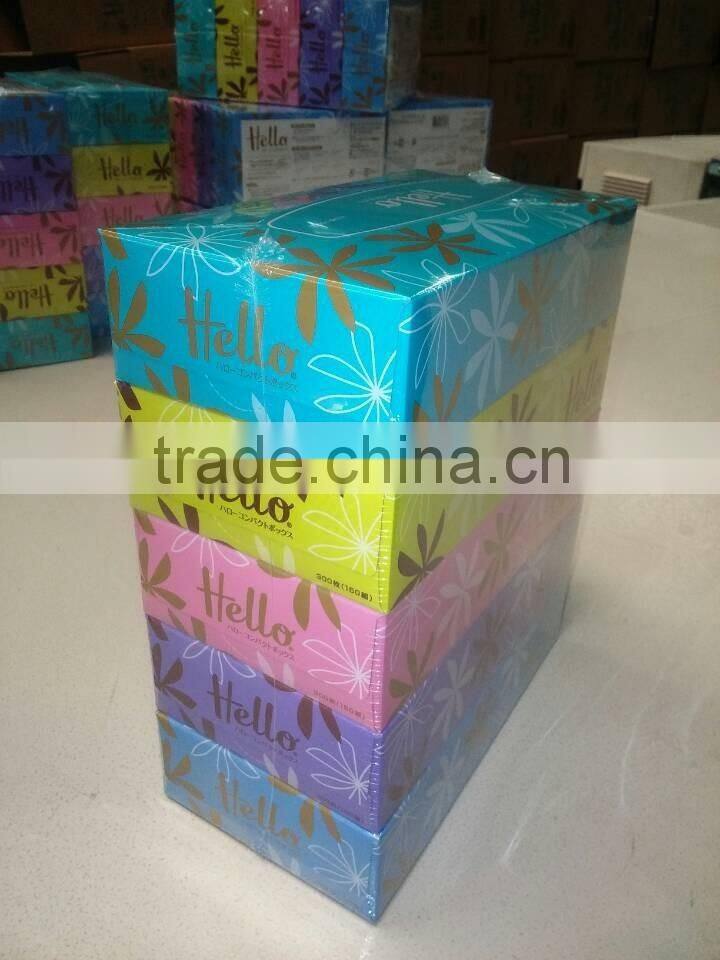

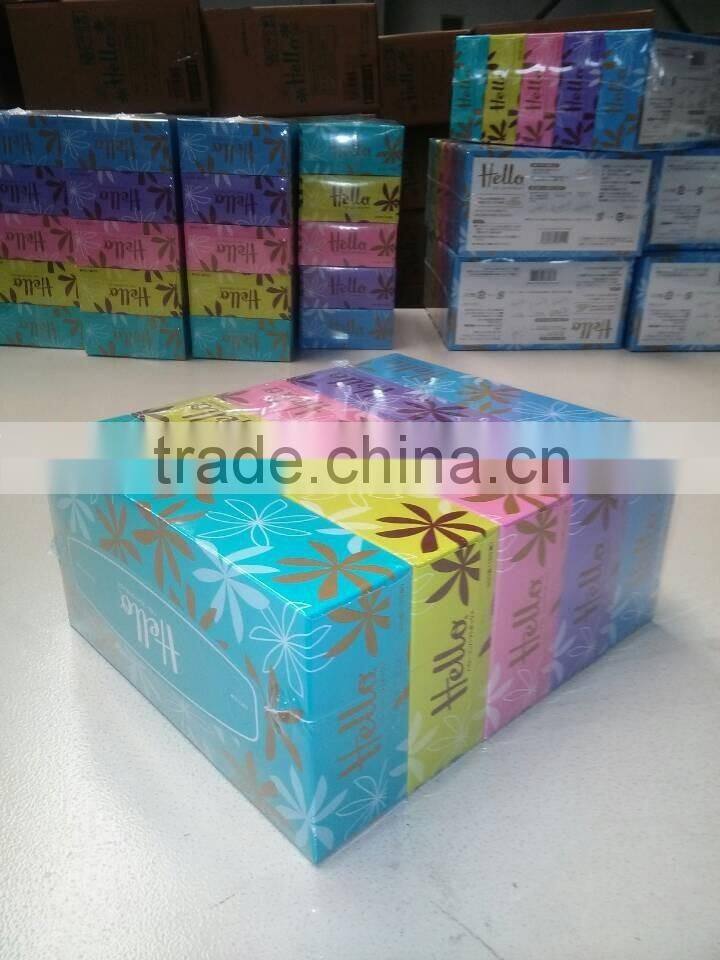

Packaging products: Tissue

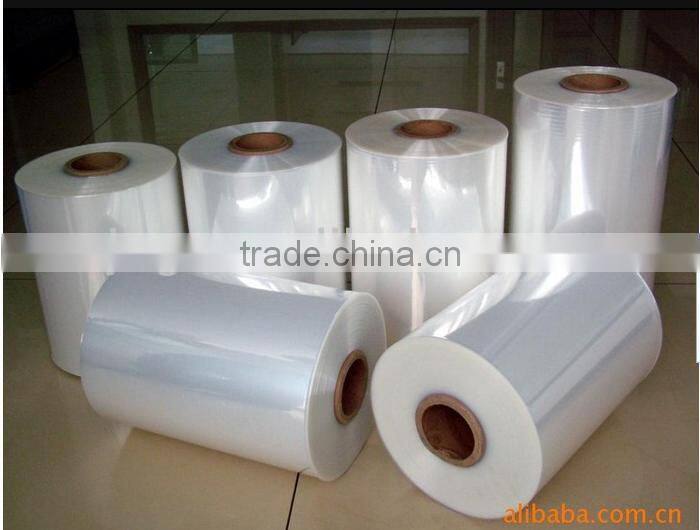

Films:

Product Specification:

Model	LB-801	LB-803
Machine Size(mm) L x W x H	1475x1320x1230	2420x1710x1325
Packing Size(mm) L x W x H	(50-400)x(50-280)x(2-80)	(200-830)x(200-630)x(10-180)
Sealing bar (mm) L x W	450x335	900x700
Power	1p,220v,2.5kw	1p,220v,4kw
Conveyor Speed	26 m/min
Pneumatic	55psi,4kg/sq.cm	87psi,6kg/sq.cm

*Tailor made version is available

Optional Accessory:

24 Hours Service:

Be free to ask me for working video
