XCMG function of China motor grader blades

FOB Price

US$ 20,000 - 60,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Forward Speed(km/h)	38
Reverse Speed(km/h)	23	Place of Origin	Jiangsu, China
Brand Name	XCMG	Model Number	GR260
Weight	24000kg	Dimension(LWH)	1028031003550mm
Certification	ISO, CE	After-sales Service Provided	Overseas service center available

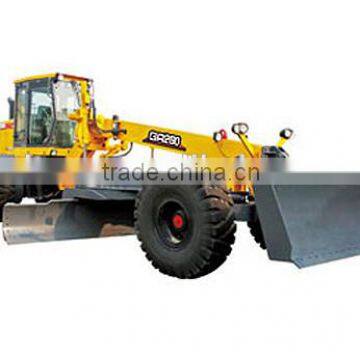

GR260 XCMG function of China motor grader blades

Product Description

Detail Specification of XCMG China GR260 motor grader blades

Basic specification
Engine model	6CTA8.3—C260
Rated power/speed	194kW/2200rpm
Dimension(LxWxH)	10280×3100×3550mm
Operating weight(Standard)	24000kg
Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.8)	132KN
Max. gradeability	36%
Tire inflation pressure	350 MPa
Working hydraulic pressure	18 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	Left / Right 50°
Max. lean angle of front wheels	Left / Right 17°
Max. oscillation angle of front axle	Up / down 15°
Max. oscillation angle of balance box	Before / after 15
Frame articulation angle	Left / Right 27°
Min. turning radius using articulation	8.3m
Blade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	4572×787mm
