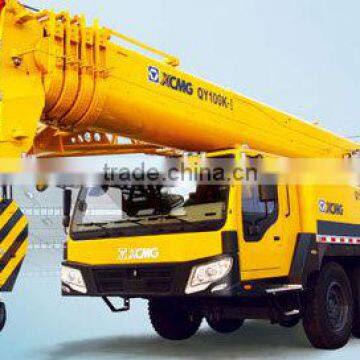

XCMG QY100K-I block truck mounted crane manufacturer

Dimension

Unit

QY100K-I

Overall length, width, height

mm

15600×3000×3850

Wheel base

mm

1420+2420+1800+1420+1505

Weight

Total weight in travel

kg

54900   58000

Axle load

Axle 1

kg

7500    7500

Axle 2

kg

7500    7500

Axle 3

kg

8300    10000

Axle 4

kg

12000    12500

Axle 5

kg

12000    12500

Axle 6

kg

7600       8000

Power

Engine rated power

kW/(r/min)

360/1800 (306/1900)

Engine rated torque

N.m/(r/min)

2200/1300 (2010/1200)

Engine rated speed

r/min

1800 (1900)

Min. ground clearance

mm

310

Travel

Approach angle

°

20

Departure angle

°

14

Braking distance (at 30km/h)

m

≤10

Max. grade ability

%

40

Min. turning diameter

m

24

Fuel consumption for 100km

L

70

Main performance

Max. rated total lifting capacity

m

100

Min. rated working radius

3

Turning radius at turntable tail

Counterweight

mm

4200

Aux. winch

mm

4590

Max. lifting torque

3450

Base boom

kN.m

3450(4m×88t)

Fully extended boom

kN.m

1950(24m×7.1t)

Fully extended boom+ jib

kN.m

1230(19.2m×6t)

Outrigger span (full extension)

Longitudinal

m

7.56

Lateral

m

7.6

Lifting height

Base boom

m

13.5

Fully extended boom

m

50.9

Fully extended boom+ jib

m

70.4

Boom length

m

13.5

Fully extended boom

m

51

Fully extended boom+ jib

m

51+18.1+4

Working speed

Jib setting angle

°

0,15,30

Boom luffing time

s

75

Boom

Boom telescoping time

Full extension

s

160

Max. swing speed

r/min

2

Outrigger extension/retraction time

Outrigger beam in extension/retraction

s

25/15

Outrigger jack in extension/retraction

s

45/25

Lifting speed (single rope, layer 4)

Main winch

m/min

105

Aux. winch

m/min

104
