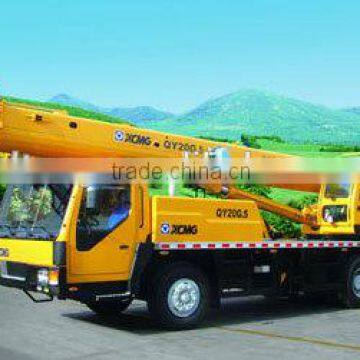

XCMG Factory Price Brand New 20 Ton Truck Crane Quality Choice

FOB Price

USD $60,000 - $100,000 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	construction,agriculture,forestry,railway,ports,roads,electricity
Rated Loading Capacity	20t	Rated Lifting Moment	860kN.m
Max. Lifting Load	20 ton	Max. Lifting Height	42.12m
Span	5.4m	Place of Origin	Jiangsu, China
Brand Name	XCMG	Model Number	QY20B.5
Certification	ISO9001	Warranty	1 Year
After-sales Service Provided	Overseas service center available

Detail Specification of XCMG Factory Price Brand New 20 Ton Truck Crane

Dimension	Unit	QY20B.5
Overall length	mm	12400
Overall width	mm	2500
Overall height	mm	3300
Weight
Total weight in travel	kg	26020
Front axle load	kg	6900
Rear axle load	kg	19120
Power
Engine model		SC8DK260Q3, WD615.327
Engine rated power	kW/(r/min)	192/2200 198/2200
Engine rated torque	N.m/(r/min)	1100/1400 1150/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	20
Min. ground clearance	mm	270
Approach angle	°	21
Departure angle	°	11
Max. grade ability	%	35
Fuel consumption for 100km	L	≈35
Main performance
Max. rated total lifting capacity	t	20
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.385
Max. lifting torque	kN.m	860
Base boom	m	10.06
Fully extended boom	m	32.76
Fully extended boom+jib	m	42.12
Longitudinal outrigger span	m	4.97
Lateral outrigger span	m	5.4
Working speed
Boom luffing time	s	75
Boom full extension time	s	95
Max. swing speed	r/min	3
Max. speed of main winch (single rope)	m/min	100
Max. speed of aux. winch (single rope)	m/min	100
