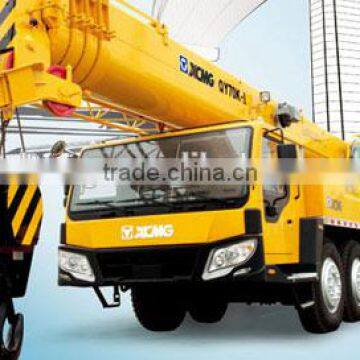

xcmg 70 ton mobile crane QY70K price

FOB Price

USD $200,000 - $300,000 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	3000mm
Rated Loading Capacity	70000kg	Rated Lifting Moment	2302
Max. Lifting Load	70000kg	Max. Lifting Height	59.5m
Span	13930mm	Place of Origin	Jiangsu, China
Brand Name	XCMG	Model Number	QY70K
Certification	CE	Warranty	one year or 2000 working hours
After-sales Service Provided	Engineers available to service machinery overseas

xcmg 70 ton mobile crane QY70K price

Description

Dimension	Unit	QY70K-I
Overall length	mm	13930
Overall width	mm	2800
Overall height	mm	3575
Weight
Total weight in travel	kg	43000(without 1t vice counterweight)
Front axle load	kg	17000
Rear axle load	kg	26000
Power
Engine model		WD615.338(domestic III)
Engine rated power	kW/(r/min)	276/2200
Engine rated torque	N.m/(r/min)	1500/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	327
Approach angle	°	19
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	70
Min. rated working radius	m	3000
Turning radius at turntable tail	m	3.55
Max. lifting torque	kN.m	2303
Base boom	m	11.6
Fully extended boom	m	44.5
Fully extended boom+ jib	m	59.5
Longitudinal outrigger span	m	6.1
Lateral outrigger span	m	7.3
Working speed
Boom luffing time	s	60
Boom full extension time	s	≤150
Max. swing speed	r/min	≥2.0
Max. speed of main winch (single rope) (no load)	m/min	≥130
Max. speed of aux. winch (single rope) (no load)	m/min	≥10
