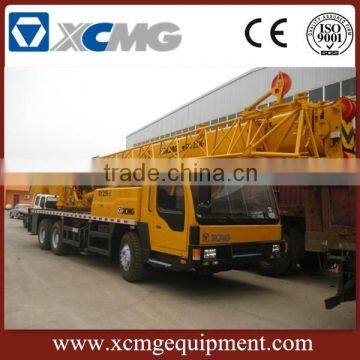

XCMG QY25K5-I 25t truck crane

FOB Price

USD $80,000 - $140,000 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	construction
Rated Loading Capacity	25 ton	Rated Lifting Moment	961 kN.m
Max. Lifting Load	25 ton	Max. Lifting Height	47.8m
Span	6m	Place of Origin	Jiangsu, China
Brand Name	XCMG	Model Number	QY25K5-I
Certification	ISO9001	Warranty	1 Year
After-sales Service Provided	Overseas service center available

Main Information

Max.lifting capacity:25t

Fully extended boom: 39.5m

Fully extend boom+jib:47.8m

Detail Specification of XCMG QY25K5-I truck crane

Dimension	Unit	QY25K5-I
Overall length	mm	12300
Overall width	mm	2500
Overall height	mm	3350
Weight
Total weight in travel	kg	31750
Front axle load	kg	6550
Rear axle load	kg	25200
Power
Engine model		SC8DK280Q3	WD615.329
Engine rated power	kW/(r/min)	206/2200	213/2200
Engine rated torque	N.m/(r/min)	1112/1400	1160/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	≈37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	961
Base boom	m	10.4
Fully extended boom	m	39.5
Fully extended boom+jib	m	47.8
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	68
Boom full extension time	s	150
Max. swing speed	r/min	2.5
Max. speed of main winch (single rope) (no load)	m/min	125
Max. speed of aux. winch (single rope) (no load)	m/min	125
