YX120-345 Automatic Roofing Ridge Cap Roll Forming Machine

Product Description

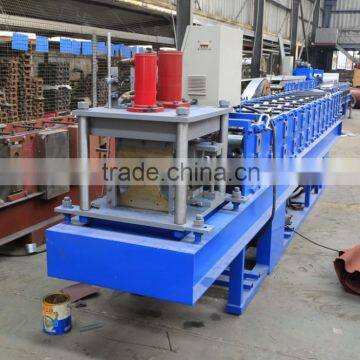

                  Metal Roof Ridge Cap Roll Forming Machine

1. Details of ridge cap roll forming machine

Material

Material Thickness(&):0.4-0.6mm

Applicable material:Galvanized Steel Sheet,with Yield Strength 550Mpa

Machine Components

1)Manual Decoiler: one set

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton

2)   Cold Rolling Mills:

Rollers manufactured from bearing steel GCr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust)   ;

Motor Driving,Gear chain transmission, 14 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling)

Main Motor=4KW  , Frequency speed control

Forming speed approx.12-15m/min

3)Hydraulic Cutting device

hydraulic motor: 5.5KW, Hydraulic pressure range: 0-12Mpa

Cutting tool material: Cr12, Heat treatment

4)PLC Control System(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss ,Encoder brand: Japan Koyo)

Control the quantity and cutting length automatically

Combined with: PLC, Inverter, Touch Screen, Encoder, etc

Cut-to-length tolerance≤±1mm

Control Voltage 24V

5) Exit Rack Un-powered, three units

2. Machine Features of ridge cap roll forming machine

The advantages of ridge cap roll forming machineare as follows:

1.Easy operation, low maintenance cost
2.Material saving

3.Type of penel is wide used.

4.Short construction period

3. Detailed Images of ridge cap roll forming machine

Name: rollers
Brand: BMS
Original: China
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.With black treatment or Hard-Chrome Coating for options.

Name: PLC control system
Brand: SIEMENS/SCHNEIDER ELECTRIC
Original: Germany/France
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Encoder: KOYO/Omron (Japan brand)
