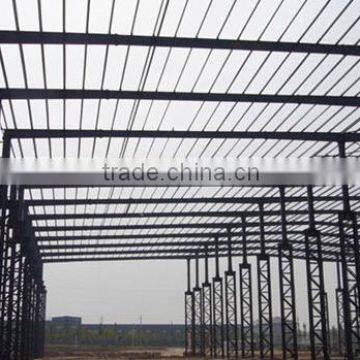

Steel Structure Workshop

steel structure workshop

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Characteristics:

1.      Enviromental friendly

2.      Lower cost and maintenance

3.      Long using time up to 50 years

4.      Stable and earthquake resistance up to 9 grade

5.      Fast construction, time saving and labor saving

6.      Good appearance

 ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Usage:

The steel workshop warehouse building is widely used for workshop plant, warehouse, office building, steel shed, aircraft hangar etc.

Technical Parameters :

 ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Main steel structure frame:

Manufacturing Progress:

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.

1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height)
_____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
