POULTRY LAYER FARM DESIGN

Qingdao Xinri Poultry Co.,LTD, founded in 2004, is specialized in poultry shed, chicken housing, broiler housing and agricultural shed design and construction. QXR Poultry Co has over 10 years experience in all aspects of poultry housing and chicken farm development. We do not just design and construct sheds, we build innovative farming solutions utilizing superior materials and products, proven industry experience, and our commitment to developing quality farming investments for our clients.

All our constructed buildings, whether they be poultry sheds, farm sheds, general agricultural applications, or factories, workshops, warehouses, and mine sites, are designed with the most extreme and demanding of conditions in mind. Wherever you are in the world, our sheds are engineered to comply with all the relevant standards and local special requirements.

Use of the farm : chicken eggs production

Breeding system : A cages raising sytem

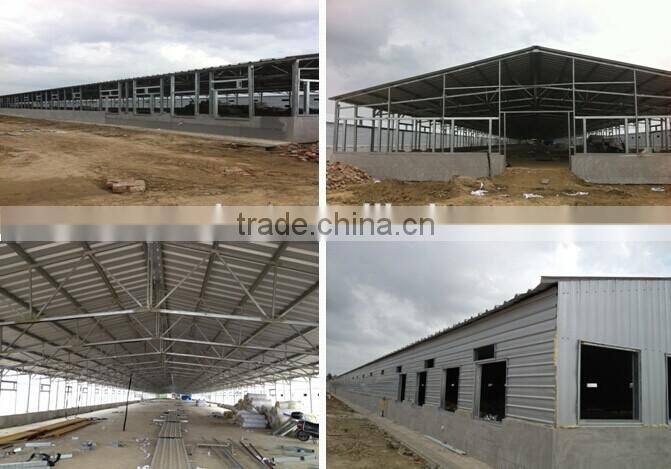

  characteristics of the steel structure shed

All parts are shaped and perforated in the factory, and are ready for installation site.

The mounting of shed buildings requires no soldering since all components are bolted

together.

Hot-dip galvanized ensures a long longevity and reduces the rate of corrosion and aging.

The whole is fixed by anchors and the complete structure can be modified or changed without altering the original structure.

equipments of the shed

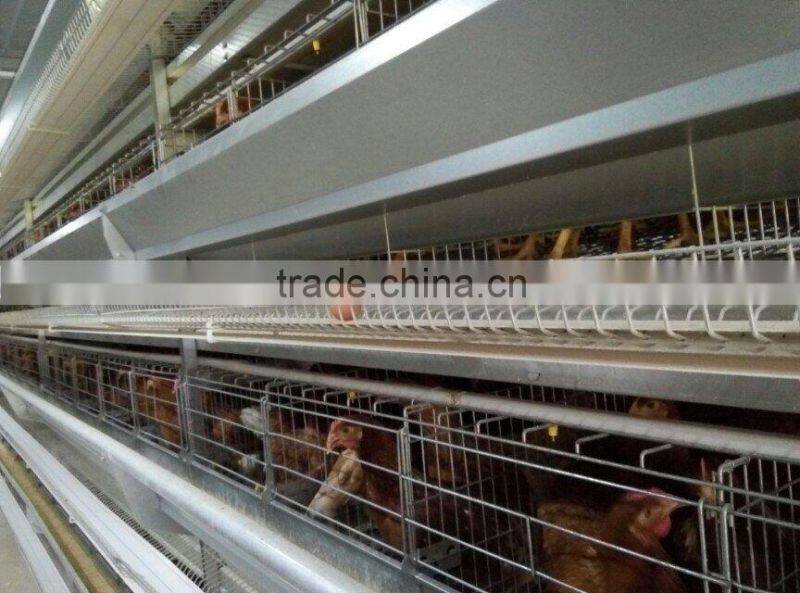

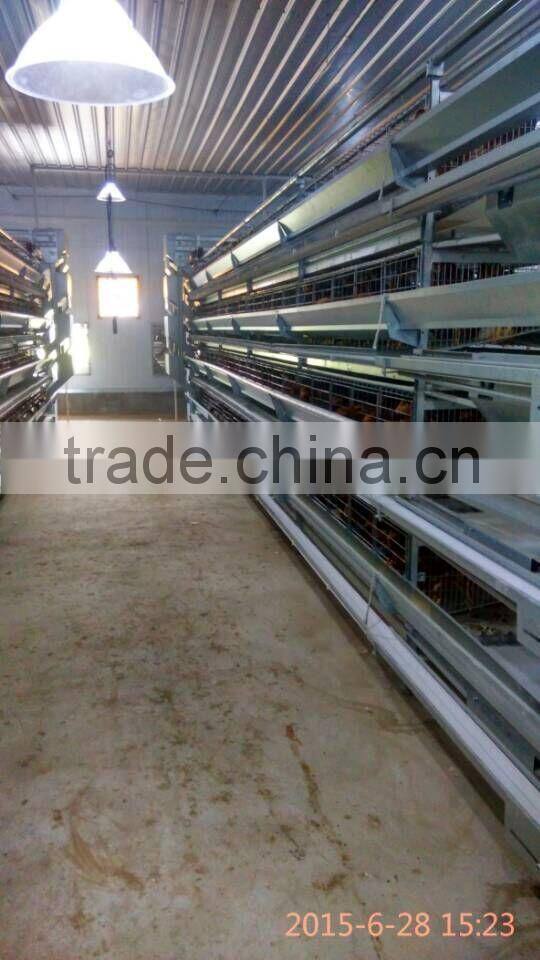

high efficiency A cages breeding system

The A type raising cage system can house 4 chicks per cells and is equipped with automatic drinking and feeding system.

The feeding pans are situated outside the cages which can prevent from any contamination of food droppings.

Nipples water supply are installed in a fixed position to the front of each cages and

provide clean and fresh water.

frame of the cages : hot-dip galvanized

cell dimensions : 1870x466x370mm

raising area : 545 cm²

cells capacity : 4 chicks

number of tiers : 3 to 6

feeding and drinking system : automatic

manure cleaning system : automatic

egg collecting system : automatic or manual

food trolley system

The food trolley moves automatically along the cages and allows a quick and efficient delivery of the food in each tiers. The food is distributed equally and evenly. The system can be automated or manual according to customer’s request.

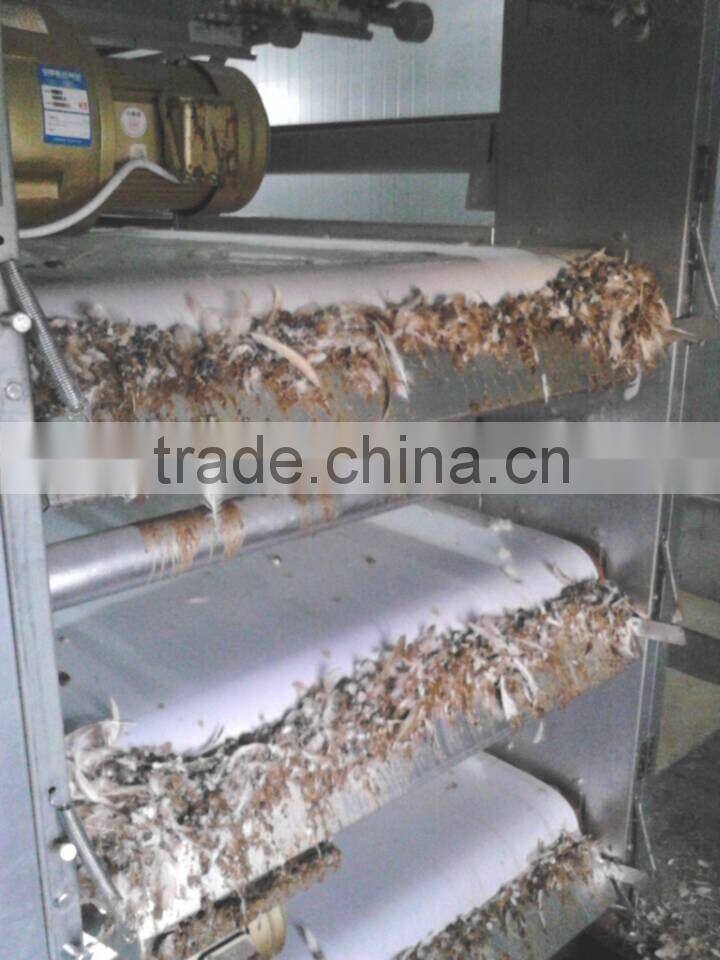

traction manure cleaning system

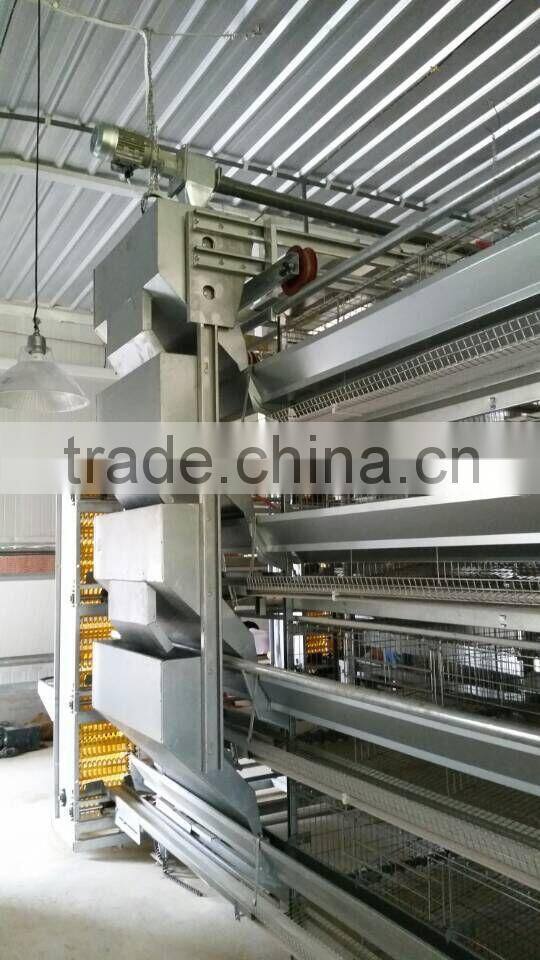

egg conveyor system

The belt conveyor collect the eggs from each tiers and provide gentle, smooth transport of the eggs until the pick-up area . It helps preventing cracks in the shells and preserving egg quality.

The pick-up area is situated behind each cage rows, and the eggs are to be gathered together manually.

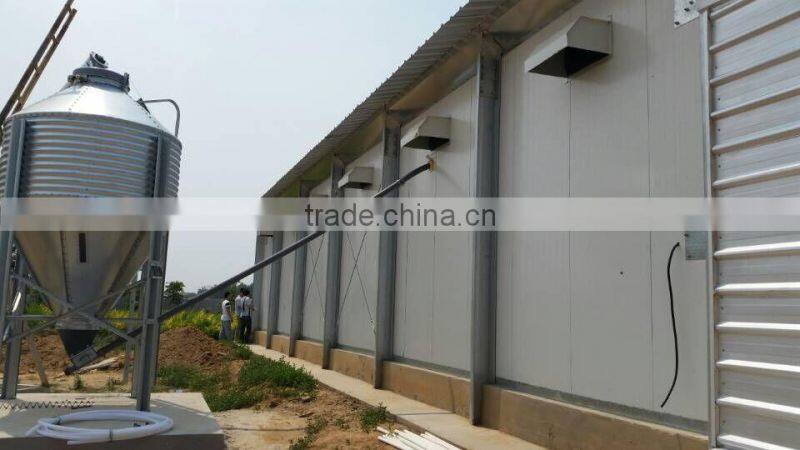

silos

Our silos are made from galvanized sheet steel. These silos are used in agricultural for the storage of food grains. They are highly appreciated by the customers due to their remarkable attributes such as durability, spacious, resistance against corrosion and ability to withstand adverse weather conditions.



The size of the silo required depends on daily feed consumption and required storage time. All systems can be filled pneumatically or by auger.

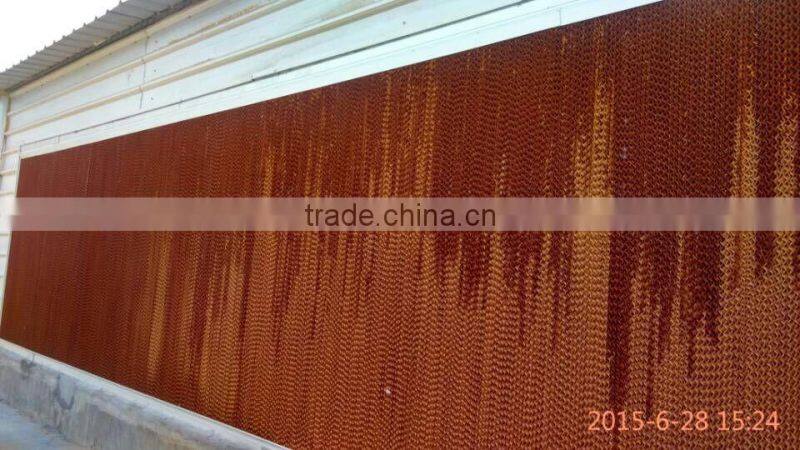

pad cooling system

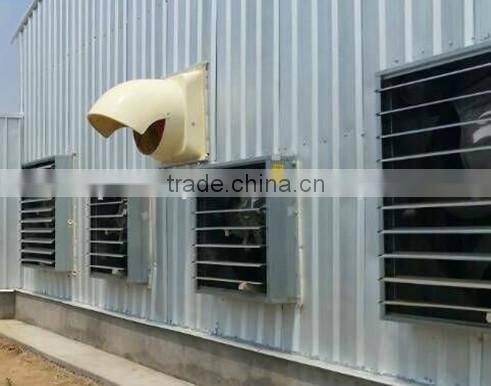

fan & ventilation system

 It delivers fresh air and removes excess heat, moisture and undesirable gases from the broiler house. A typical ventilation system in a chicken house consists of fans, air inlets, evaporative cooling system and controller/thermostats.

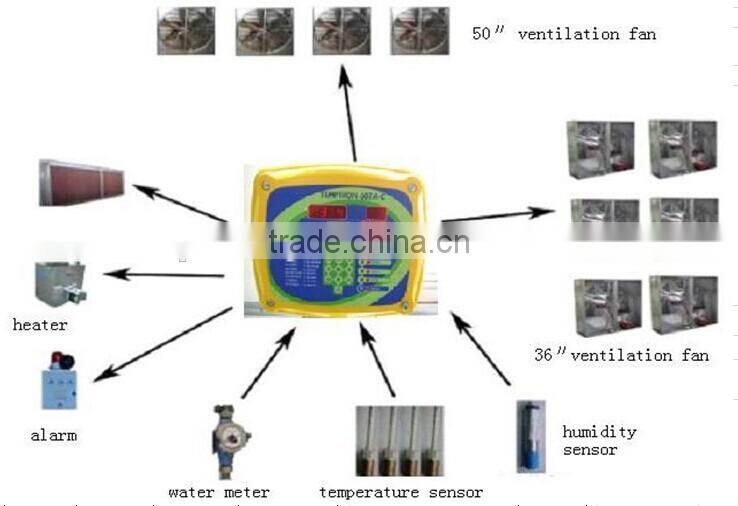

environmental control system (Agrologic)

As the house temperature fluctuates, the controller will turn on the brooders or fans as needed. The controller operates equipment in the house including: brooders, fans, inlet machines, curtain machines, evaporative cooling systems and lights.

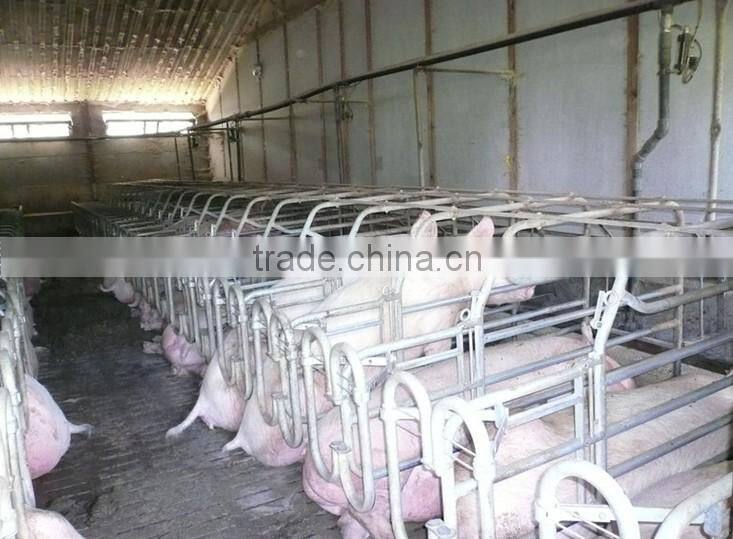

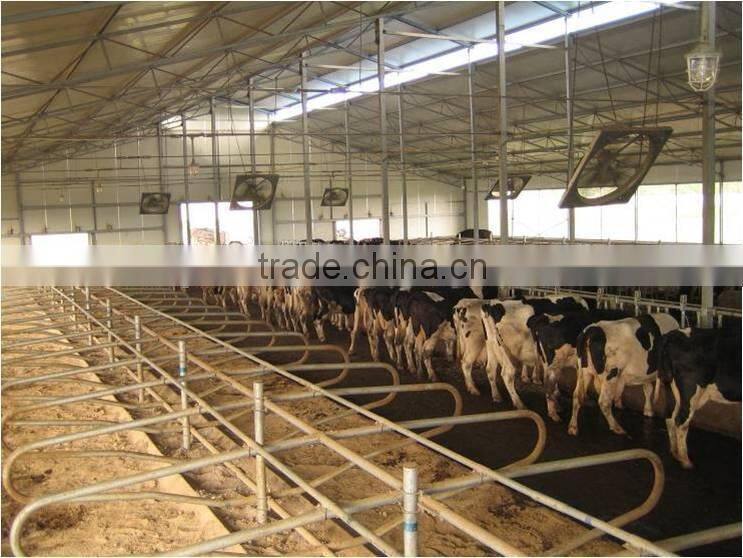

- other farms available (cow shed, pigs farm)

We have undertaken a lot of projects for many foreign corporation and are used to meeting special specifications.

We will respect your requirements and follow your directions to the letter.

For us, every project is unique and has its own spirit.

In order to give a quotation, please send me the following informations :

 - dimensions of the shed : L*W*H

- number total of poultry

- type of chicken : laying hens, broiler chickens

- type of breeding : in cages, on the ground

- climate condition : wind power, humidity rate, ....

DON'T HESITATE TO CONTACT ME NOW  !!!

Others products:

 Workshop, Warehouses, Sheds and buildings

20'ft &40'ft Container House

Prefabricated House

Poultry houses

Overhead cranes

 Certificates:

ISO9001:2000 ; ISO14001:2004 and OHSAS18000

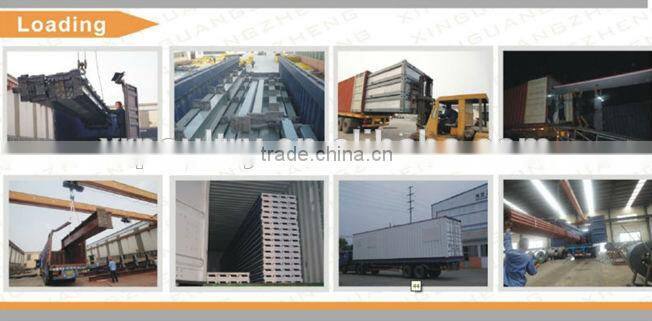

 Packaging & shipment:
