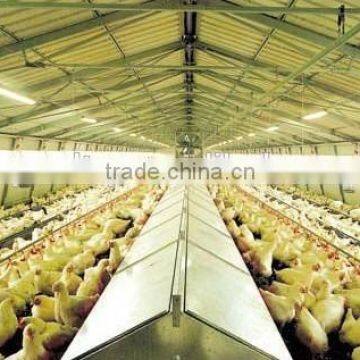

Automatic Poultry Pan Feeder in Chicken House

Chicken House composed of :

1) Main feeding system

2) Feed pan system

3) Nipple drinking system

4) Ventilaion fan system

5)cooling pad system

6) Environmental control system

7) Lighting system

8) Spraying system

9)Heating system

1.Main feeding system

This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.

4.Ventilation fan system

This system controls climate conditions,fresh air,humidity and temperature in poultry shed,it is vital for growing birds.This system include Poultry house fan, Cooling pad,Air inlet window.

5.Cooling pad system

6.Environmental control system

This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

7.Spraying system

This system effectively cools,humidifies,dedusts and disinfects the henhouse(the temerature is quickly reduced by 3-8 degrees centigrade within a few minutes).

8.Heating system

9.Lighting system

Our projects of poultry house

Steel structure design common norms are as follows:

"Steel Design Code" (GB50017-2003)

"Cold-formed steel structure technical specifications" (GB50018-2002)

"Construction Quality Acceptance of Steel" (GB50205-2001)

"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)

"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)

Commonly used steel grades and performance of steel

Carbon structural steel: Q235, Q345,etc.

High-strength low-alloy structural steel

Quality carbon structural steel and alloy structural steel

Special purpose steel
