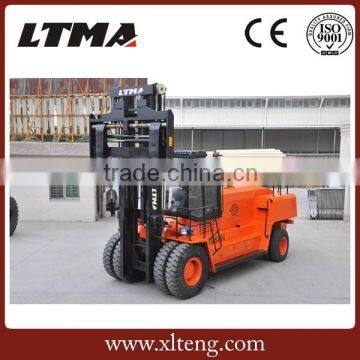

heavy duty forklift 30 ton similar to kalmar 30 ton diesel forklift
- Xiamen port
- T/T Credit Card PayPal
You May Like
-
LTMA 12t forklift with diesel forklift
-
China forklift manufacturer LTMA 15 ton 16 ton forklift truck
-
LTMA electric forklift price competitive 1.5 ton 3 ton battery forklift
-
LTMA new forklift price competitive 1.5t - 5t small forklift truck Quality Choice
-
LTMA 25 ton 30 ton heavy diesel forklift
-
LTMA tcm type forklift compare with TCM 1.5 - 10 ton diesel forklift
Product Details
Condition | New | Place of Origin | Fujian, China | |
Brand Name | LTMA | Model Number | FD330T | |
Type | Powered Pallet Truck | Power Souce | Diesel Engine | |
Rated Loading Capacity | 33T | Max. Lifting Height | 4 M | |
Fork Length | 2550 mm | |||
Fork Width | 180 mm | Overall Dimensions | 9190x3050x3860 mm | |
Certification | CE / ISO | After-sales Service Provided | Overseas third-party support available |
Product Description
big capacity 30 ton biggest forklift for sale price cheap
big capacity 30 ton biggest forklift for sale price cheap
Volvo engine Euro III standard
ZF electric transmission
Original German axles
Joystick,
American Parker hydraulic hose
Sealed and luxury cab with air-conditioner
The Specifications of Material Handling Equipment 33 ton forklift for sale
Load Centre | mm | 1200 | ||
Lift Height | mm | 4000 | ||
Fork Size | L×W×T | mm | 2550×180×150 | |
Mast Tilt Angle | F/R | Deg | 6°/12° | |
Front Overhang (Wheel center to fork face) | mm | 1200 | ||
Ground Clearance(Bottom of mast) | mm | 250 | ||
Overall Dimension | Length to face of fork(Without fork) | mm | 9260 | |
Overall Width | mm | 3050 | ||
Mast Lowered Height | mm | 4000 | ||
Overhead Guard Height | mm | 6000 | ||
Turning Radius (outside) | mm | 6500 | ||
Speed | Travel (Full load) | km/h | 20 | |
Lifting(Full load) | mm/s | 300 | ||
Max.Gradeability (No load/Full load) | % | 20 | ||
Tire (solid tire) | Front | mm | 14 -25 | |
Rear | mm | 14-25 | ||
Wheelbase | mm | 4650 | ||
Service weight | kg | 42500 | ||
Battery | Voltage/Capacity | V/Ah | 24V/180Ah | |
Engine | Model | TAD750VE | ||
Manufacture | Volvo | |||
Rated output/r.p.m. | kw | 181/2300 | ||
Rated torque/r.p.m. | N·m | 1050/1500 | ||
No.of Cylinder | 6 | |||
Displacement | cc | 7150 | ||
Fuel Tank Capacity | L | 420 | ||
Transmission | Type | Powershift | ||
Stage | FWD/RVS | 2/2 |
1.What's the Certificate do you have?
LTMA workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements. LTMA never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMA will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMA warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 90 days.
7, How can you ensure the quality of the products ?
Don’t worry,we joined the trade assurance. If the products have quality problem when you received the goods, Alibaba can return you full payments.
