Product Details
LED Light Source | SMD 2835 LED | Warranty(Years) | 3 | |
Input Voltage(V) | AC85-265 | Lamp Power(W) | 12 | |
Lamp Luminous Flux(lm) | 1620 | Lamp Luminous Efficiency(lm/w) | 85 | |
Color Temperature(CCT) | Other, 3000K, 4000K, 5000K, 6000K | Working Temperature(℃) | -25, 45 | |
Working Lifetime(Hour) | 35000 | Lamp Body Material | Other, Die-Cast Aluminum alloy+Light Guide Plate | |
IP Rating | IP44 | Certification | C-tick, CE, EMC, FCC, SAA | |
Place of Origin | Guangdong, China | Brand Name | TOBRAND | |
Model Number | PN-R22-18W-03 |
Product Description

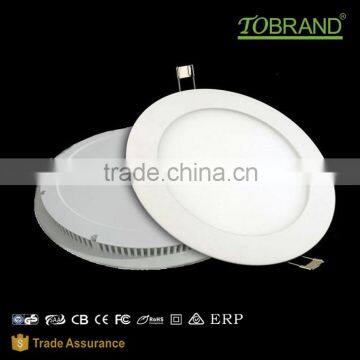

12w Plastic Panels CE RoHS Certificated Ultrathin LED Panel Light
What Round LED Panel Lights do we have?
Tobrand round led panel lights use high lumens EPISTAR SMD2835, with CRI>80RA,
Dimmable and Non-dimmable provided, with 3 years warranty.
Passed TUV-GS, SAA, RCM, CE, RoHS, CB certificates.
Model No. | Size(mm) | Hole Size (mm) | Power ±(5%+0.5) | Input Voltage | Power Factor | Color Temp. | Lumens(±10%) | CRI |
PN-R9-3W-03 | Φ90xH12 | Φ75 | 3W | AC100-240V | 0.6 | WW: 3000K NW: 4000K CW: 6000K | 250lm 260lm 270lm | 80 |
PN-R12-6W-03 | Φ120xH12 | Φ105 | 6W | AC100-240V | 0.6 | WW: 3000K NW: 4000K CW: 6000K | 510lm 530lm 540lm | 80 |
PN-R15-9W-03 | Φ150xH12 | Φ135 | 9W | AC100-240V | 0.6 | WW: 3000K NW: 4000K CW: 6000K | 760lm 790lm 810lm | 80 |
PN-R17-12W-03 | Φ170xH12 | Φ155 | 12W | AC100-240V | 0.98 | WW: 3000K NW: 4000K CW: 6000K | 1010lm 1050lm 1080lm | 80 |
PN-R20-15W-03 | Φ200xH12 | Φ180 | 15W | AC100-240V | 0.98 | WW: 3000K NW: 4000K CW: 6000K | 1260lm 1310lm 1350lm | 80 |
PN-R22-18W-03 | Φ225xH12 | Φ205 | 18W | AC100-240V | 0.98 | WW: 3000K NW: 4000K CW: 6000K | 1510lm 1580lm 1620lm | 80 |
PN-R24-20W-03 | Φ240xH12 | Φ220 | 20W | AC100-240V | 0.98 | WW: 3000K NW: 4000K CW: 6000K | 1680lm 1750lm 1800lm | 80 |
PN-R30-24W-03 | Φ300xH12 | Φ280 | 24W | AC100-240V | 0.98 | WW: 3000K NW: 4000K CW: 6000K | 2010lm 2100lm 2160lm | 80 |
Features
1) SMD2835 LED passed LM-80 test, Ra>80.
2) Entire Lamp pass TUV-GS Mark + CE + CB + SAA + RCM Certificate.
3) Isolated Protection Driver PF>0.97
4) Driver Efficiency >88%.
5) Three Years Warranty.
6) panel light
Application
1. Instead of the indoors ceiling light
2. School / Universities / Hospital
3. Conference / Meeting room /Show Room
4. Commercial Complexes
5. Super-markets
6. Residential / Institution buildings
7. LED lighting manufacturers
1. Quality Control:
a.100% of the lamps will be tested and keep lighting for 48 hours to test its quality reliability.
b.Then after it is cool we again test 100% of the lamps to see if it still work well.
c.Each lamp should pass all these QC procedures before shipping to customer.
2. Our service:
a. Fast response, reply all in the 24hours, well-trained and professional engineer team;
b. We own well-tranied and passional sales & after-sale services who can speak fluent Engligh language;
c. We offer OEM services. Can print your own logo on product, can customize the retail box packing;
d. We have the strong advantage to serve our exclusive agent and distributor.
About Us
Company Profile
Tobrand Lighting Technology Co,.Ltd is a Hi-tech enterprise, professionally engaged in developing, manufacturing and marketing of LED lighting products, which is located in Shenzhen city, the LED lighting industry base of China. We have been devoted into designing and manufacturing commercial LED lighting products including LED panel lights, Tube Lights, Downlights, Floodlights,etc. All Tobrand illumination products are manufactured to the highest standards.
Technology Innovation
Tobrand's faith is to boost advanced" energy saving, high efficiency, eco-friendly" lighting concept and method. With strong research and development capability, professional technical team and substantial experience in the LED Lighting field, we constantly make technology innovation, launch new products beyond customers expectation every year to provide our users with highest-performance LED products.
Development
Tobrand's lighting products have been exported to over 60 countries and regions including Europe, America, Oceania, Africa, Southeast Asia, and the Middle East. Meanwhile, our domestic market share is also experiencing and enormous growth. With excellent quality, professional technical support and perfect service, we have gained praise-worthy reputation and have been widely recognized by customers domestically and globally.
Q1:: What is CRI?
A1: CRI is a figure which feedback the real objects colors. For LED panel lights, the CRI is more than 80 Ra.
Q2: Will your LED lights work on a dimmer switch?
A2: Yes, our most of LED lights can work on triac dimming or DALI dimming.
Q3: Why does my LED lights not work properly in extreme temperatures?
A3: Any temperature below -10 F or above 45 F may cause a LED bulb to flicker, dim, change color or cease
to function. Once the LED bulb is returned to an operational environment it should began to work properly.
Q4: Can we get support if we have our own market position?
A4: Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
