Free Magic Arm + SpectraHD 4 Monitor And Loupe Kit

Specifications

  Free Magic Arm + SpectraHD 4 Monitor And Loupe Kit

  The F&V SpectraHD 4 is a compact 4.3"" monitor with a stunning 1280 x 720px high-resolution display. The SpectraHD 4 has a 170-degree viewing angle, 8-bit color depth, and a 900:1 contrast ratio which makes it a strong, standalone monitor not only for reference but also for focus pulling.

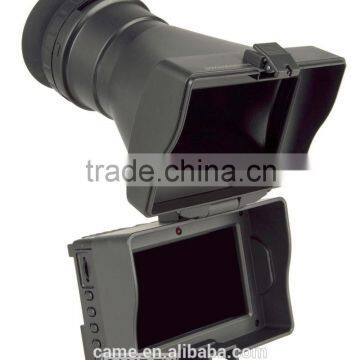

An optional, flip-down loupe completes the system, transforming the monitor into an Electronic Viewfinder (EVF). The loupe is a practical solution for over the shoulder camera work or when shooting in bright environments. The loupe has a slight magnification, yet it retains full-screen viewing which makes framing your shot easy. The loupe is sold separately or as part of a kit.

Advanced software features make the SpectraHD 4 a perfect solution for professionals. The SpectraHD 4 is packed with key features such as: vectorscope, histogram, focus peaking, false color, and adjustable frame guides. The SpectraHD 4 gives you tools to understand your image signal, ensuring its overall integrity. The SpectraHD 4 will be capable of future firmware upgrades via its integrated mini-USB input.

The SpectraHD 4 has a lightweight and strong aluminum body with two mounting options: one 1/4""-20 and one Arri Rosette. It has an HDMI IN and OUT with loop-through as well as an SDI IN and OUT with loop-through. The SDI input supports 3G/HD/SD. Another powerful feature of the SpectraHD4 is its ability to convert from HDMI IN to SDI OUT.

The SpectraHD 4 has several available power options: a Sony NP-F battery plate, a DC2.5mm jack, and mini-XLR. The mini-XLR can also be used for multi-camera shoots to receive a tally signal from the switch-board, illuminating the monitor's integrated Tally Light.

Whether on-location or in the studio, the SpectraHD 4 has all the physical and internal features to make it a versatile, reliable companion on-set.

Software Features Include:
Histogram
Vectorscope
False Color
Zebra Pattern
Focus Peaking
Frame Guides & Safety Area
Overscan & Pixel to Pixel
DSLR Scale
H/V Image Flip
Image Freeze
Image Zoom
Audio Columns
Timecode

Highlights
4.3" LCD Display with 1280x720px Resolution with 170-degree Viewing Angle
HDMI to SDI Conversion
Histogram, Vectorscope, False Color and Zebra Overlays
Focus Peaking, Frame Guides, Audio Columns, Timecode, and DSLR Scale
1/4"-20 and Arri Rosette Mounting Options
Multiple Power Options: Sony NP-F, DC2.5mm, Mini-XLR
Ability to Upgrade via mini-USB

Specs
Screen Size ....................... 4.3" (diagonal)
Pixels ............................ 1280(H) x 3(RGB) x 720(V)
Viewing Angle ..................... 170º
Display Area ...................... 93.6mm(H) x 58.2mm(V)
Aspect Ratio ...................... 16:9/4:3
Selectable Color Depth ............ 24-bit (16,777,216 colors)
Brightness ........................ 400 cd/m²
Contrast Ratio .................... 800:1
Compatible Input Formats .......... NTSC/PAL
HDMI Input Formats ................ 480i/p, 576i/p, 720i/p, 1080i/p
HDMI Input/Output ................. HDMI (type A)
SDI Input/Output .................. BNC Female (8)
TALLY ............................. Mini XLR
Operating Voltage ................. 6 - 18V
DC Power .......................... Max 6.2W
Operating Temperature ............. 0ºC to 40ºC (32ºF to 104ºF)
Storage Temperature ............... -20ºC to 60ºC (-4ºF to 140ºF)

Package Contents
(1) x SpectraHD 4
(1) x Loupe for SpectraHD 4
(1) x Regular BNC to Right Angle BNC Cable
(1) x D-tap to Mini-XLR Cable
(1) x Regular HDMI Right Angle Mini-HDMI
(1) x D-tap to DC2.5mm
(1) x AC Power Adapter 12V/1A/DC2.5mm
(1) x Free 11" Magic Arm
