Free Magic Arm + MeticaFM 7 HD MI Video Monitor

Specifications

Free Magic Arm + MeticaFM 7 HD MI Video Monitor

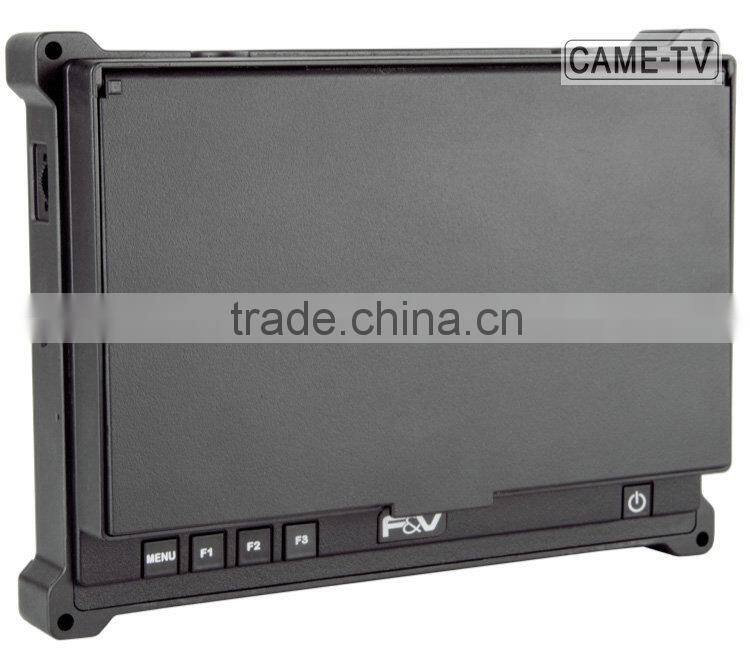

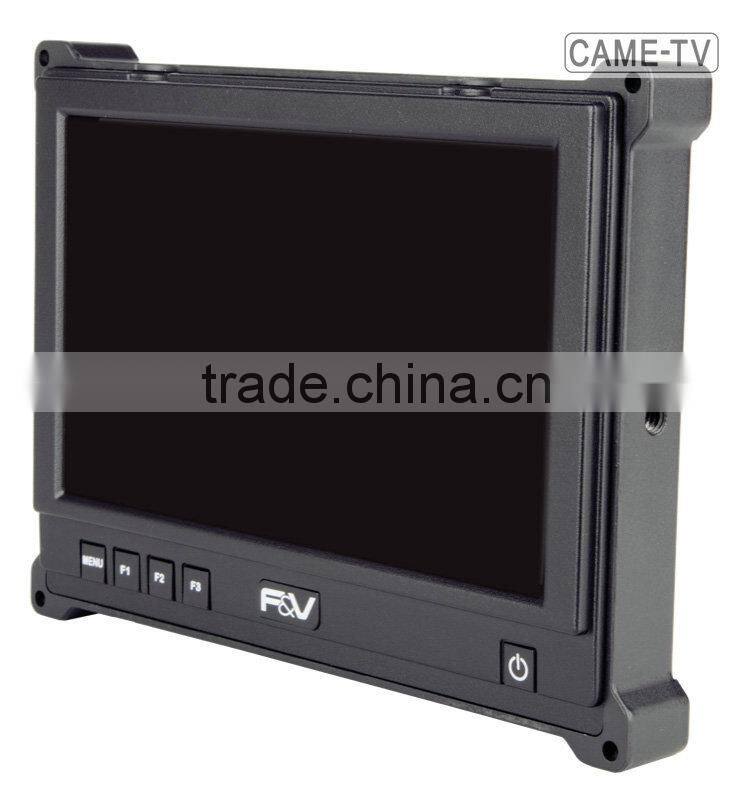

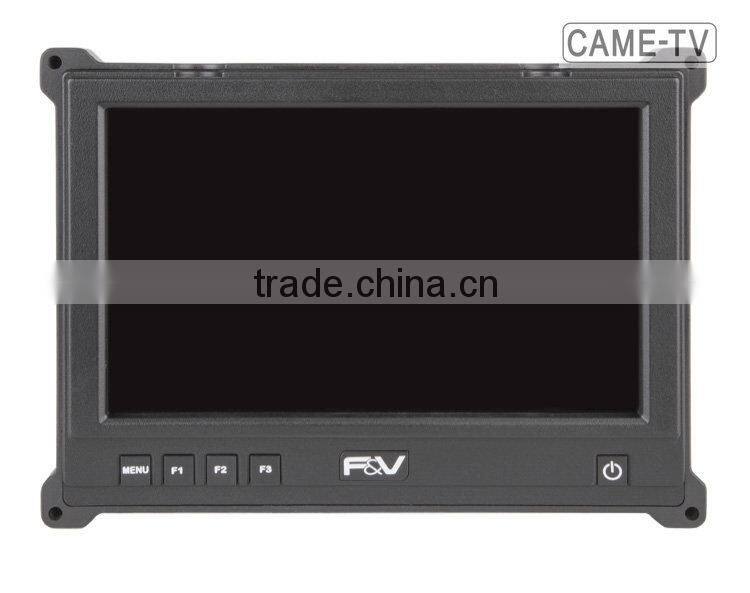

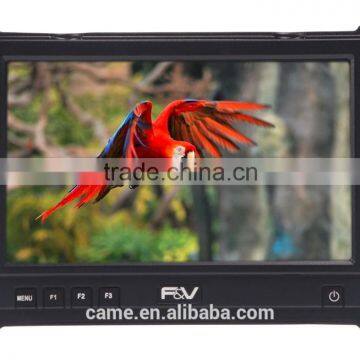

The F&V MeticaFM 7 HDMI is a rugged 7" monitor with a vibrant 1024 x 600px display. The MeticaFM 7 HDMI has a 170-degree viewing angle, 8-bit color depth, and a 800:1 contrast ratio which makes it an ideal monitor not only for reference but also for focus pulling.

The MeticaFM 7 HDMI has a lightweight and strong aluminum body with four 1/4""-20 thread-ins, one on each of its four side. The MeticaFM 7 HDMI has both an HDMI IN as well as an HDMI OUT with the ability to loop through.

The base software that accompanies the MeticaFM 7 HDMI software includes: focus peaking, variable scan modes, and adjustable frame guides. An optional hardware upgrade, available at the time of purchase or anytime down the road, will allow for the MeticaFM 7 HDMI to have advanced software functionality which includes: pattern generator, false color, range error, histogram, and audio columns. The MeticaFM 7 HDMI will be capable of future firmware upgrades via its integrated mini-USB input.

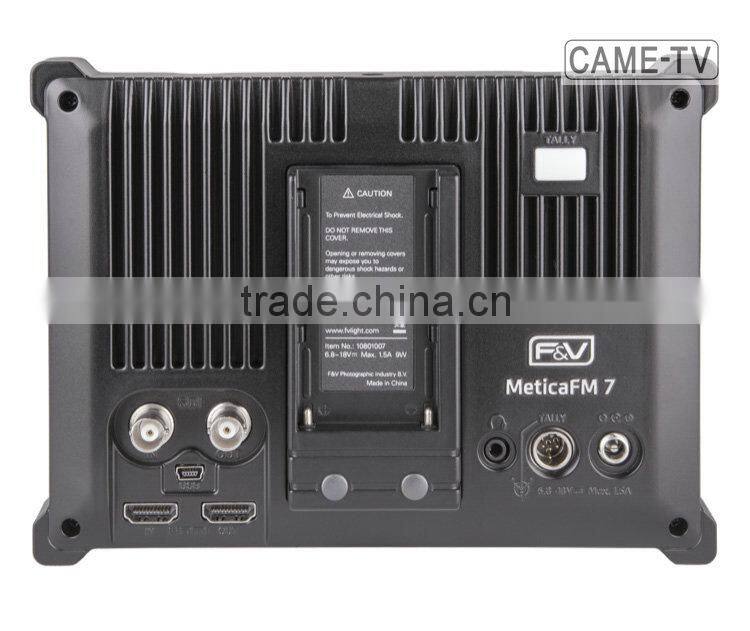

The MeticaFM 7 HDMI has several available power options: a Sony NP-F battery plate, a DC2.5mm jack, and Mini-XLR. The Mini-XLR can also be used for multi-camera shoots to receive a tally signal from the switch-board, illuminating the monitor's integrated Tally Light.

Software Features Include:
Focus Peaking
Overscan & Pixel to Pixel
Adjustable Frame Guides
DSLR Scale
H/V Image Flip
Image Freeze
Image Zoom

Highlights
7" LCD Display with 1024x600px Resolution
800:1 Contrast Ratio
170-degree Viewing Angle
4x 1/4""-20 Mounting Options (one on each side)
Multiple Power Options: Sony NP-F, DC2.5mm, Mini-XLR
Professional Software
Basic and Advanced Software Options

Specs
Screen Size ...................................................... 7.0" (diagonal)
Pixels ............................................. 1024(H) x 3(RGB) x 600(V)
Viewing Angle ............................................................... 170º
Display Area ....................................... 153.6mm(H) x 90.0mm(V)
Aspect Ratio ................................................16:9/4:3
Selectable Color Depth ....................................... 24-bit (16,777,216 colors)
Brightness ............................................................... 400 cd/m²
Contrast Ratio ............................................................... 800:1
Dot Pitch ...................................................... 0.15(H) x 0.15(V)
Compatible Input Formats ....................................... NTSC/PAL
HDMI Input Formats ..................... 480i/p, 576i/p, 720i/p, 1080i/p
HDMI Input/Output ................................. HDMI (type A)
Operating Voltage ................................................... 6 - 18V
DC Power .................................................................. Max 6.2W
Operating Temperature ..................... 0ºC to 40ºC (32ºF to 104ºF)
Storage Temperature ..................... -20ºC to 60ºC (-4ºF to 140ºF)
Nominal Weight ............................................................ 920g
Nominal Dimensions .................................... 19x14x4.3(cm)
HDMI ... HDMI (type A) Female
TALLY ..................... Mini XLR

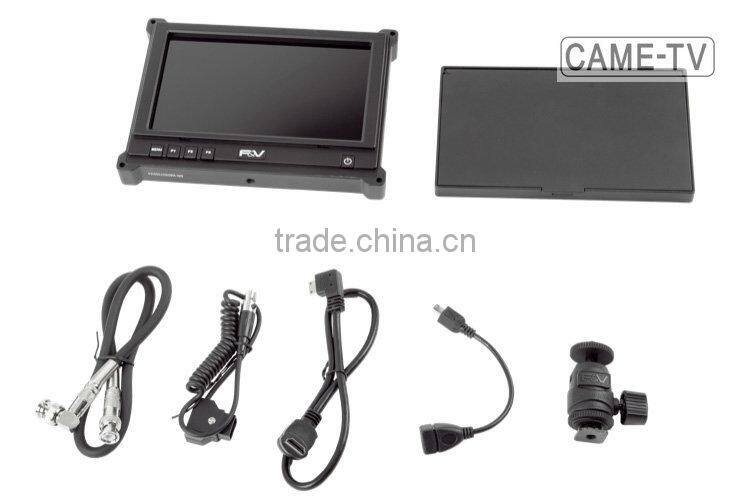

Package Contents
(1) x MeticaFM 7 HDMI
(1) x D-tap to Mini-XLR Cable
(1) x Regular HDMI Right Angle Mini-HDMI
(1) x D-tap to DC2.5mm
(1) x AC Power Adapter 12V/1A/DC2.5mm

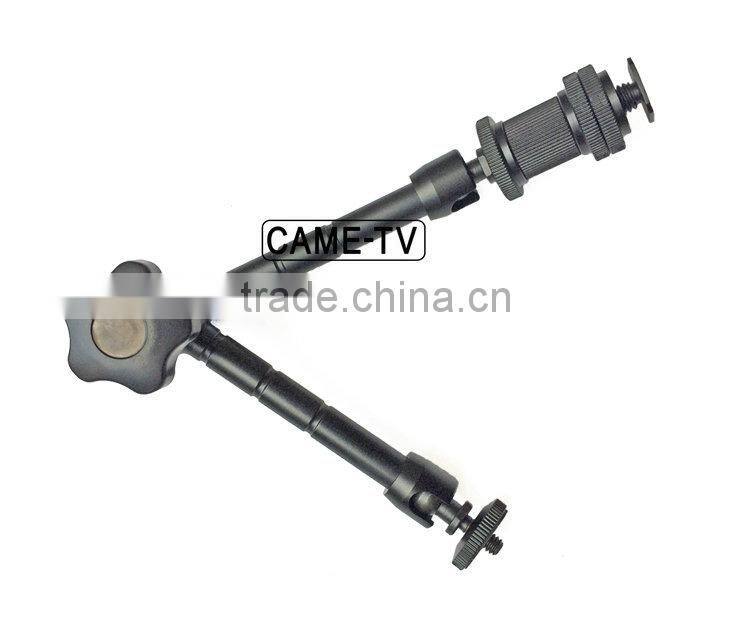

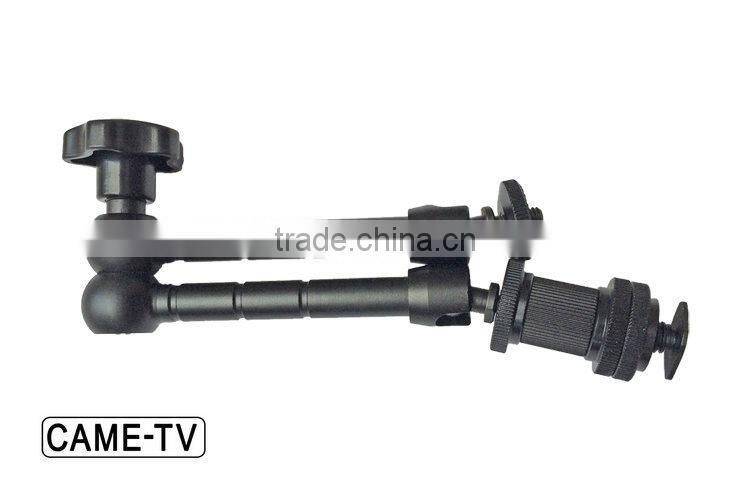

(1) x Free 11" Magic Arm
