Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | JQX-15F(T90) | Theory | Electromagnetic Relay | |
| Usage | Protective | Size | Miniature | |
| Protect Feature | Sealed | Contact Load | High Power |
Product Description

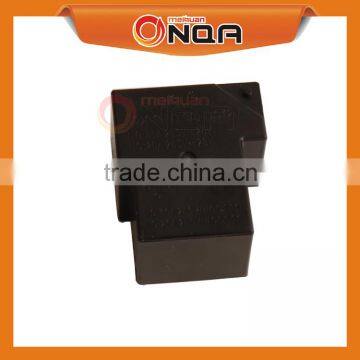

Miniature Electromagnetic Relay 30A T90 12V 24V DC Power PCB Relay
Miniature Electromagnetic Relay 30A T90 12V 24V DC Power PCB Relay
Features
Model: JQX-15F(T90)
1.30A contact overating capacity
2.SPST-NO&SPDT
3.Contact capacity: 30A 30VDC 250VAC
4.PCB terminals
Classification | PCB Relay | |
Product Model | JQX-15F(T90) relay | |
Contact Form | 1H, 1D,1Z | |
Coil Voltage | 5/6/9/12/18/24/36/48VDC | |
Operate Voltage | ≤ 3.8/4.5/6.8/9.0/13.5/18.0/27.0/36.0VDC | |
Release Voltage | ≥ 0.5/0.6/0.9/1.2/1.8/2.4/3.6/4.8VDC | |
Coil Power(W) | 0.93W | |
Contact Rating | 1H: 30A; 1Z: 20A (250VAC / 28VDC) | |
Insulation Resistance | 1000mΩ (500VDC) | |
Dielectric Strength | Between Open Contact | 1500VAC 1min |
| Between Coil and Contact | 2000VAC 1min |
Electrical Life | 1×105 | |
Mechanical Life | 1×107 | |
Ambient Temperature | -40 ~ +70°C | |
Outline Dimension(L×W×H) | 32.5×27.5×20.5 (mm) | |
Mounting Form | PCB Terminal | |
Weight | 26g | |
