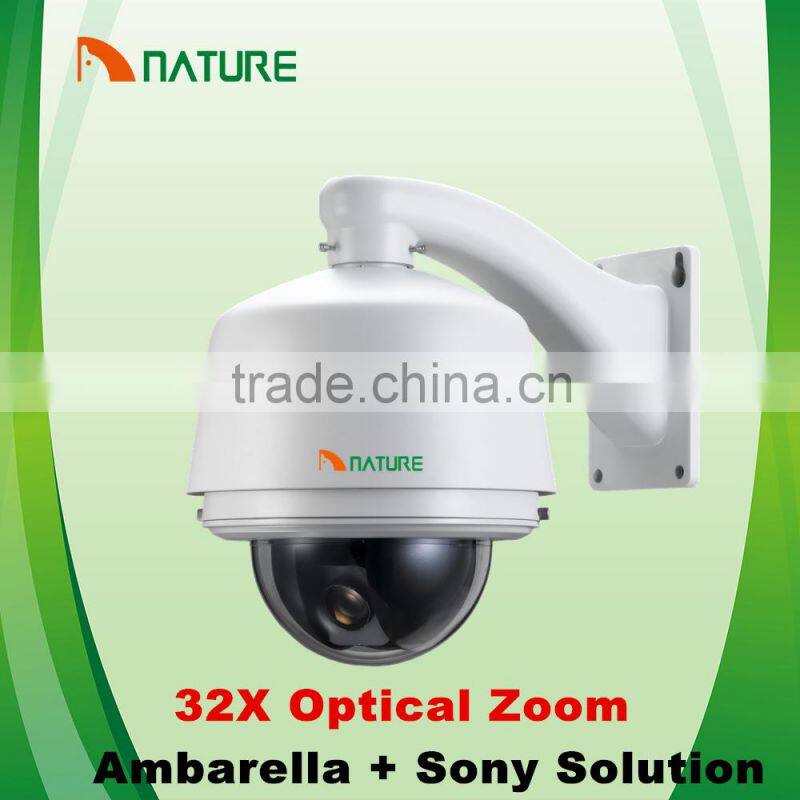

H.264 Ambarella PTZ Camera, 32X Optical Zoom 1080P 2 Megapixel High Speed Dome Camera

Model

Model No.

NVC-HD9132P

NVC-HD9532P

Type

1.3 Megapixels HD Network PTZ

2.0 Megapixels HD Network PTZ

Camera

Image Sensor

1/3″ Progressive Scan CMOS

1/2.8″ Progressive Scan CMOS

Focus Length

32X  (f4.5–144mm,  Aperture: F1.6-4.8)

View Angle

Horizontal:58.98°(wide)- 2.11°(tele)

Min. Illumination

Color:0.05Lux  B/W  0.005Lux

Color:0.1Lux  B/W  0.01Lux

Electronic Shutter

1/25 ~ 1/10000

Day & Night Mode

ICR Cut Filter,Manual,Auto,Timing,Alarm Switch

Focus/Zoom

AF, ZF (Zoom Trigger AF), MF

WDR

WDR, Auto/I/II/III

Exposure Control

Automatic, manual, priority ( Shutter or Max AGC), brightness, etc.

Exposure Area

Auto, center exposure , global exposure , manually select the area

DEFOG

Optional

Anti-shake

Optional

BLC

ON / OFF

HLC

Support Electronic Shutter, Gain Control and High Light Control

DNR

3D-MCTF

S/N Ratio

>52dB

Compression

Video Compression

H.264 Main Profile / Motion JPEG

Audio

G.711 / G.726/ MP2 / AAC


Resolution

SXGA(1280x1024)+FullD1;HD720p(1280x720)+Full D1Multi Code Stream

Full HD/1080P(1920x1080) + Full D1 Multi Code Stream

Frame Rate

25fps(30fps optional) multiple video streams output at the same time, frame rate and bandwidth adjustable, H.264 support VBR/CBR

Image Setting

Adjustable Image Format, Standard, Code Rate, Brightness, Contrast, Saturation, Sharpness, White Balance, Image Flip and Mirror(Passage Mode), Support rear-end enhance anti-fog function, 4A Control,AWB, AGC, AE, AIC, Privacy Mask, No Hangover 2DNR, Support over 3different contents in any area, including Date, Time, Week, Channel Name, Remark and other information in OSD, Image Rotation: Normal 90°/ 180°/ 270°

Network

Interface

RJ45 10Base-T/100Base-TX

Alarm

Motion Detection,External Sensor Trigger,Expanded Virtual Alarm Host Action with SD/SDHC Card Videotape or Relay Output Alarm

Protocols

IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, DHCP, DDNS, NTP, IGMP, ICMP

Onvif

Support GB/T 28181 & ONVIF2.4.2.2

PTZ

Rotation Range

Pan 0°---360° Endless,  Tilt -10°—90° Automatic

Rotation Speed

Horizontal Key Control:0.01° ~360°/s, Horizontal Preset Position Speed:360°/s  Vertical Key Control:0.01° ~120°/s;Vertical Preset Position Speed:420°/s

Preset

256(Chinese title)

Auto Scan

8 Line(Each 32 -bit reserved)

Pattern

4 Line(each 500 maximum)

Guard

1

Power-off Memory

Recover to the PTZ and Lens previous state when restart

Interface

Audio Interface

3.5mm Mic/Line in,3.5mm Line out

Alarm

1ch Input /1ch Output

SD Card

Optional (Built-in)

Video Output

RJ45 (10/100M)+CVBS

General

Working Conditions

-30 ℃-50℃(Outdoor) / -10℃-50℃(Indoor), Relative Humidity≤90%; Auto Constant Temperature

Power Supply

DC12V/ 4A(±20%)

Protection Level

IP66, All-weather Protective Cover,Built-in Fans& Thermostat, 4000V Lighting Protection and Surge Protection

Dimension(mm)

Φ240x310 mm(Wall-Mount) Φ240x495 mm(Ceiling Mount)

Weight

3.8kg(With Bracket);6.35kg(Overall Unit)
