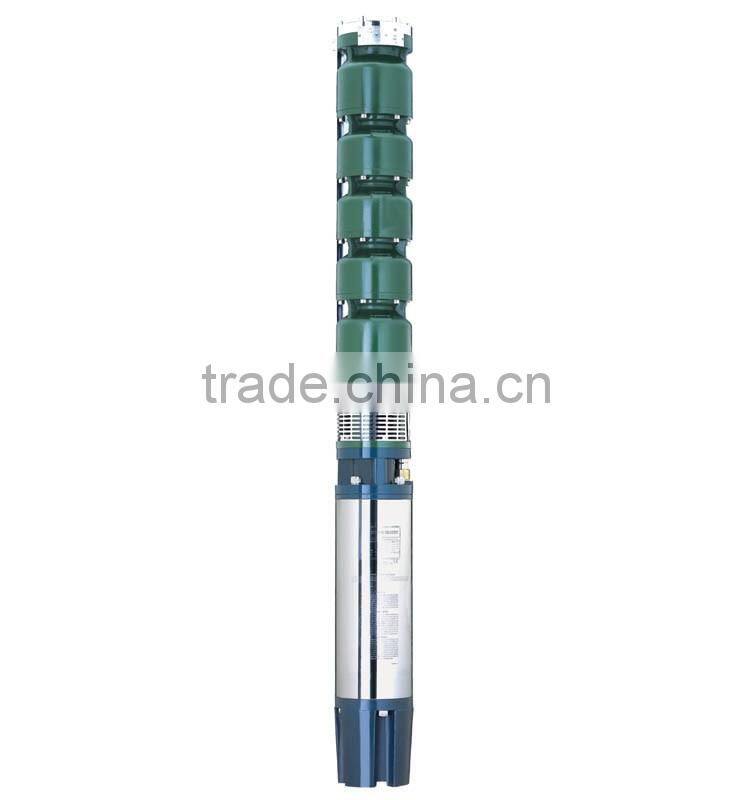

Submersible Deep Well Water Pump 6SQ

FOB Price

US$ 50 - 50 / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Applications

For water supply from deep wells or resevoirs

For domestic use,for civil and industrial applications

For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +50℃

Maximum sand contect:0.25％

Maximum immersion:100m

Minimum well diameter:6''

Motor and pump

Rewindable motor

Single-phase:220-240V/50HZ

Three-phases:380-415V/50HZ

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

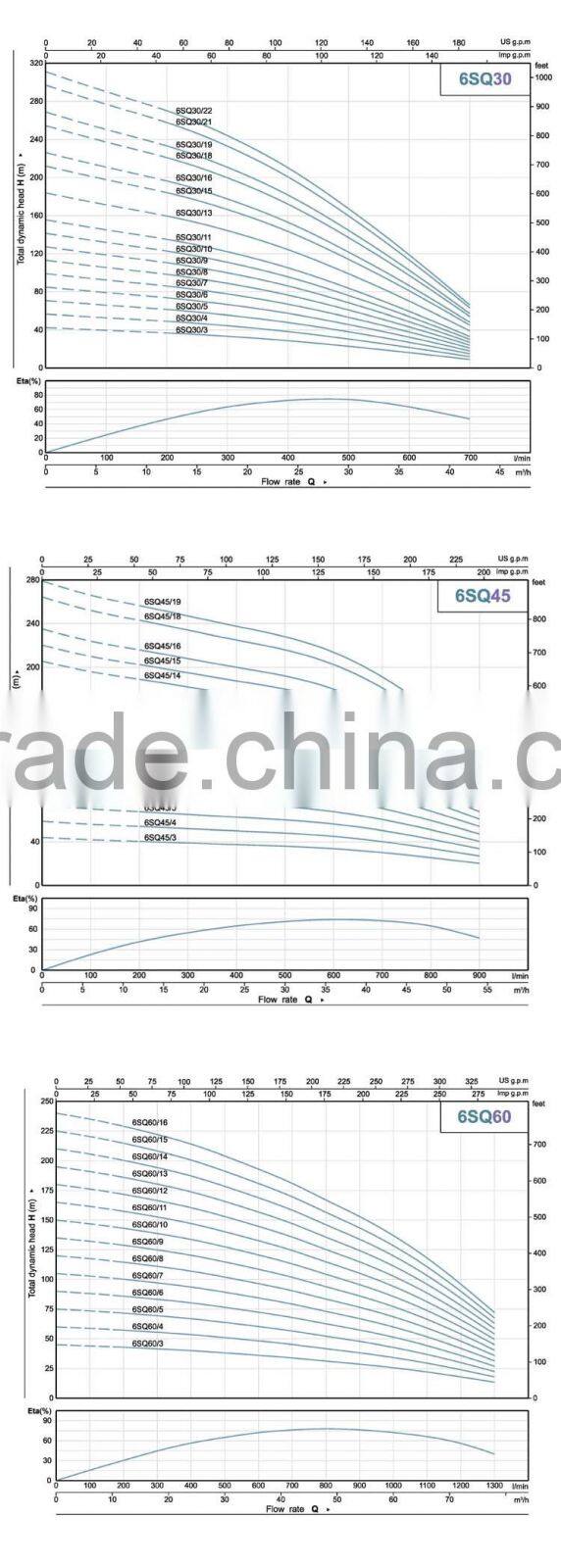

Curve tolerance according to ISO 9906

Direct start(1 cable)

star delta star(2 cable)

NEMA dimension standards

Components	Matreial
Check Valve	1.AISI 304 SS 2.AISI 316 SS
Delivery casing	Cast-iran ASTM No.30
Suction lantern	Cast-iran ASTM No.30
Stage casing	Cast-iran ASTM No.30
Impeller	1.AISI 304 SS 2.Cast-CU
Shaft	AISI 304 SS
Shaft coupling	AISI 304 SS
Wear ring	Rubber
Motor external casing	AISI 304 SS
Top chock	1.AISI 304 SS 2.Cast-iron ASTM NO.30
Bottom support	1.AISI 304 SS 2.Cast-iron ASTM NO.30
Mechanical seal	Special seal for deep well(Graphite-Ceramic/TC)
Shaft	AISI 304 SS-ASTM5140
Thrust bearing	1.Graphite-Ceramic 2.NSK
Radial bearing	1.Graphite-Ceramic 2.NSK
