100kw Big Power Diesel Generator Set for Sale
- Qingdao China
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | U-POWER | |
| Model Number | Deutz 226B | Output Type | AC Three Phase | |
| Speed | 1500/1800rpm | Frequency | 50/60HZ | |
| Rated Power | 30-120KW | Rated Voltage | 400/230v Optional | |
| Rated Current | 43.5-217A |
Product Description
Specifications
1)big power diesel generator set2)Stable performance,energy saving
3)Deutz engine,Stanford generator
4)global warranty
One Selected Program model of our diesel open type marine generator set
Model of Diesel Generator | 50GFD05 |
Prime Output(KW/KVA) | 40KW/50KVA |
Max Output(KW/KVA) | 44KW/55KVA |
|
|
Model of Diesel Engine | TD226B-4D |
Rated Output/Max output(KW) | 45KW/49.5KW |
Rated Speed (r/min) | 1500rpm |
Cylinders | 4 |
Starting Method | Electrical |
Governing Method | Mechanical/Electrical |
Intake Method | Turbocharged |
Fuel category | Diesel |
Bore/Stroke | 105/120mm |
Cooling method | Water cooling |
Fuel consumption(g/kW.h) | 242.00 |
|
|
Model of Alternator | OEM Stamford Alternator |
Rated Power(KW/KVA) | 40KW/50KVA |
Rated Frequency | 50HZ |
Rated Speed | 1500rpm |
Rated Voltage | 400/230V |
Power Factor(cos) | 0.8(lag) |
Excitation | Brushless |
Connection | 3phase-4wire |
Insulation grade | H |
|
|
Control System | display meters of oil pressure,rotation speed,water temperature,oil temperature,current,voltage,frequency. |
|
|
Standard Equipments | Diesel engine: 1set |
| Alternator:1set |
| Common iron base:1set |
| Display meters: 1set |
| Shock absorber set |
| Air filter:1set |
| Fuel filter:1set |
| Oil filter:1set |
| Mechanic governor: 1set |
| Technic file: 1set |
| Standard spare parts:1set |
Control system(Optional):
1) Automatic alarm system: acousto-optics test and alarm for start default,water over temperature, oil over temperature, over speed, oil over pressure and so on.
2) Operation display:
i) Unit voltage, tri-phase load current and frequency
ii) Water temperature, oil pressure
iii) Fuel level, fuel temperature
iv) Audible and visual alarm lamps and buzzers
Optional Components:
Engine protection module,parallel equipment,common base oil tank,electric governor,automatic start,automatic transfer switch(ATS),remote- control equipment,sound-proof / weather-proof canopy,trailer type.
Warranty :1year or 1500hrs(the first reach is valid).

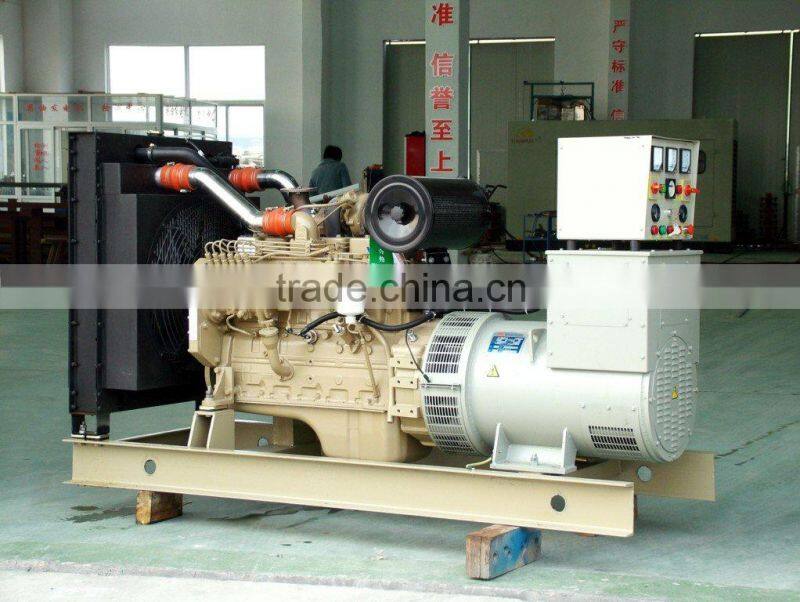

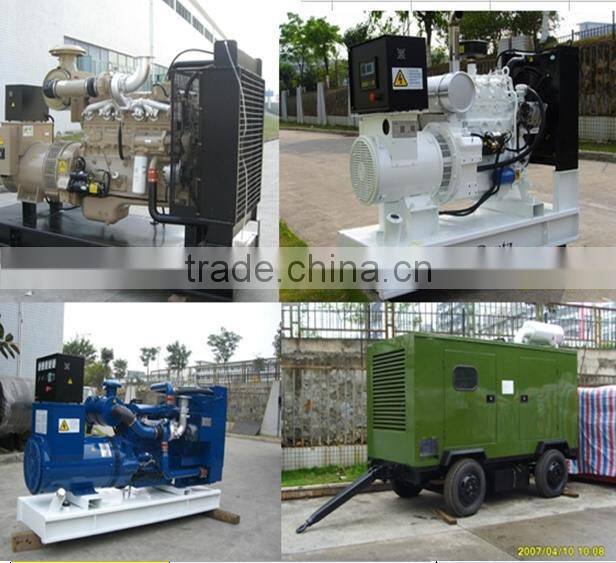

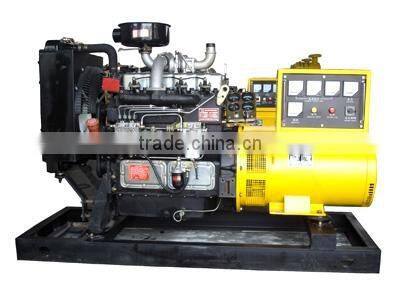

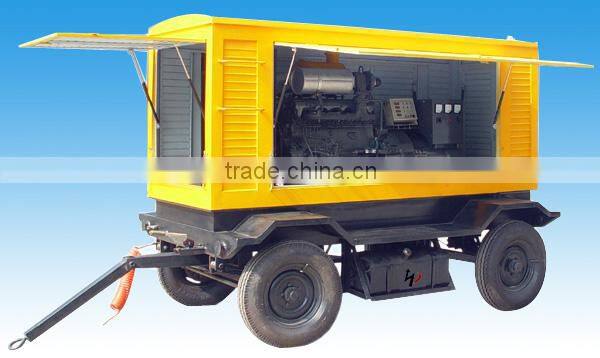

Reference picture
