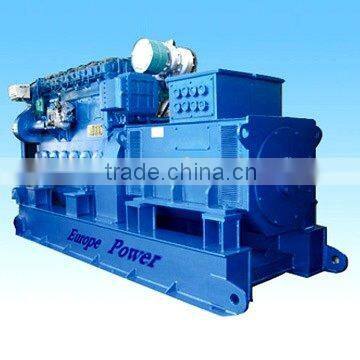

Weichai Deutz Marine Diesel Generator Set 20-120kw

Specifications

Weichai Deutz Marine Diesel generator set

Brief Introduction: Deutz D226B series

1) Prime output: 20-120KW/25-150KVA

2) Max output: 22-132KW/27.5-165KVA

U-POWER Deutz D226B Series generating set matched D226B series engines made by Sino-Germany Venture—Weichai Power Co..LTD.The alternators are world famous brands, Stamford,Marathon,Leory Somer or China alternators.There are optional equipments as listed bottom..

Selected Program:

1) Prime output: 120KW/150KVA

Diesel Engine:

1) Engine model: TBD226B-6CD

   Cylinder Nos.: 6

Bore/stroke: 105/120mm

2) Cooling method: closed Water-cooled
3) Start method: Electrical
4) Speed governing: Mechanical/Electronic(Optional)

5) Intake method: Turbocharged intercooled

Alternator:

1) Alternator model: Stamford / Marathon/Landian/Qianghui/China alternator

2) 400 / 230V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
3) Frequency: <3.0%
4) Frequency at stable state: <1.0%
5) Frequency deviation at instantaneous state: ≤+10%
6) Frequency return time: ≤3s
7) Voltage deviation at stable state: ≤±1%
8) Voltage deviation at instantaneous state: ≤+20%
9) Voltage return time: ≤4s
10) Voltage modulation: ≤0.3%

Control system(Optional):

1) Automatic alarm system: acousto-optics test and alarm for start default, over watertemperature, oil over temperature, over speed,  over oil pressure and so on.

2) Operation display:
    i) Unit voltage, tri-phase load current and frequency
    ii) Water temperature, oil pressure
  iii) Fuel level, fuel temperature

iv) Audible and visual alarm lamps and buzzers

Standard supply:

1) Diesel engine standard supply

2) Alternator

3) Steel mounting base

4) Flange connector

5) Air/fuel/oil filter

6) On-board control panel

7) Shock absorber set

Optional Components:

Engine protection module,parallel equipment,common base oil tank,electric governor,automatic start,automatic transfer switch(ATS),remote- control equipment,sound-proof / weather-proof canopy,trailer type.
