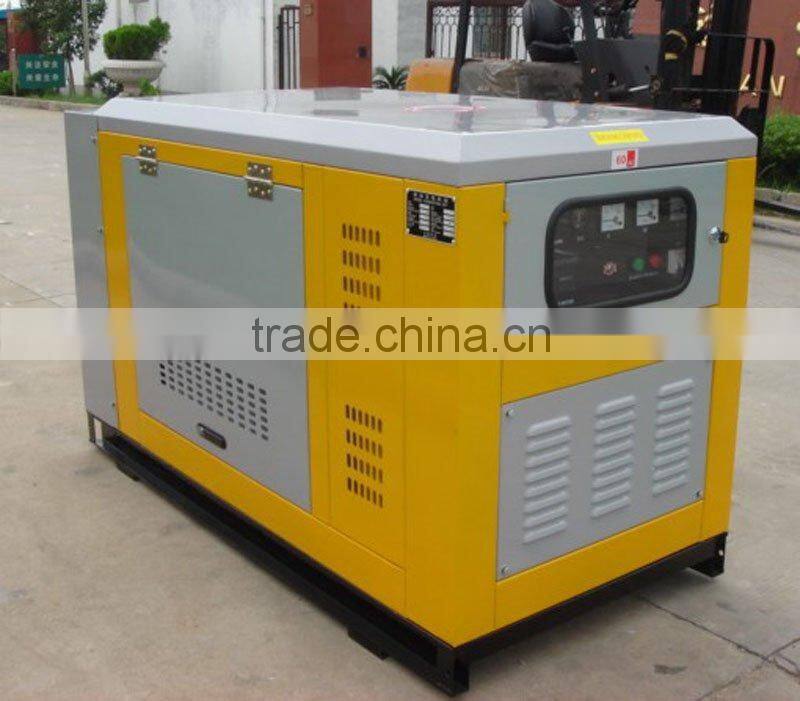

Brushless Diesel Generator Set High Quality

Specifications

diesel generator set

Land use

Selected Program:

Ricardo series

Prime output:  20-150KW/25-187KVA

Max output:  22-165KW/27.5-206KVA

Brief Introduction:

1) Prime output:  40KW/60KVA Genset

2) Engine model:  R4105ZD

   Cyliner number:  4

Bore/stroke:  105/125mm

3) Alternator model:  Stamford / Marathon/Landian

4) Cooling method:  closed Water-cooled
5) Start method:  Electrical
6) Speed governing method:  Electronic

7) Intake method:  Turbocharged/Turbocharged intercooled/Natural aspiration

8) 400 / 230V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
9) Frequency: <3%
10) Frequency at stable state: <1.0%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%
15) Voltage return time: ≤4s
16) Voltage modulation: ≤0.3%
17) Control system:
      a) Automatic alarm system: acousto-optics test and alarm for start default,water over     temperature, oil over temperature, over speed, oil over pressure and so on.
      b) Operation display:
          i) Unit voltage, tri-phase load current and frequency display
          ii) Water temperature, oil pressure display
          iii) Fuel level, fuel temperature display
          iv) Audible and visual alarm lamps and buzzers
18) Standard supply:
      a) Diesel engine standard supply,
      b) Alternator
      c) Steel structure
      d) Flange connector
      e) Air cleaner, fuel cleaner, oil cleaner
       f) On-board control panel
      g) Set shock absorber

19) Optional Components:Engine protection module,parallel equipment,common base oil tank,electric governor,automatic start,automatic transfer switch(ATS),remote- control equipment,sound-proof / weather-proof canopy,trailer type.
